IN-DASH INSTALLATION KIT FOR
SELECT 1992-UP GENERAL MOTORS/HUMMER/
ISUZU VEHICLES WITH OVERSIZE RADIO/M3000
VEHICLE APPLICATIONS:
BUICK
1997-UP
CENTURY ..................... 2
1995-99
LE SABRE .................... 3
1995-UP
PARK AVE ..................... 3
2004-UP
RAINIER ....................... 6
1997-04
REGAL .......................... 3
1995-96
REGAL .......................... 3
1996-98
RIVIERA ........................ 3
1995-96
ROADMASTER ............. 3
1996-98
SKYLARK ...................... 4
CADILLAC
1992-95
ELDORADO .................. 4
2003-UP
ESCALADE ................... 4
2003-UP
ESCALADE ESV ........... 4
2003-UP
ESCALADE EXT ........... 4
1992-95
SEVILLE ........................ 4
CHEVROLET
2003-UP
AVALANCHE ................ 4
2000-05
CAVALIER .................... 4
2004
CLASSIC ...................... 5
2004-UP
COLORADO ................. 4
OPTIONAL
ISO DIN
TRIM
This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/codes and
information pertaining to installation of this kit (#GM1583) in 1992-UP Select General Motors Vehicles with oversize radio/M3000.
Scosche Industries, Inc. can not be held responsible for discrepancies/inconsistencies that may occur due to the automobile during the
installation of components while using this booklet.
If you have any further questions, call:
©2005 SCOSCHE INDUSTRIES, INC.
CHEVROLET (Cont'd)
2001-UP
EXPRESS ..................... 4
2000-05
IMPALA ......................... 5
2001-03
MALIBU ........................ 5
2000-05
MONTE CARLO ............ 5
2002-03
S-10 PICKUP ................ 5
2003-UP
SILVERADO .................. 4
2004-UP
SSR ............................... 5
2003-UP
SUBURBAN .................. 4
2002-UP
TRAILBLAZER .............. 5
2000-UP
VENTURE ..................... 5
GMC
2004-UP
CANYON ....................... 4
2002-UP
ENVOY .......................... 6
2001-UP
SAVANA ........................ 4
2003-UP
SIERRA ......................... 4
2003-UP
YUKON ......................... 4
2003-UP
YUKON XL .................... 4
HUMMER
2003-UP
H1 ................................. 6
2003-UP
H2 ................................. 6

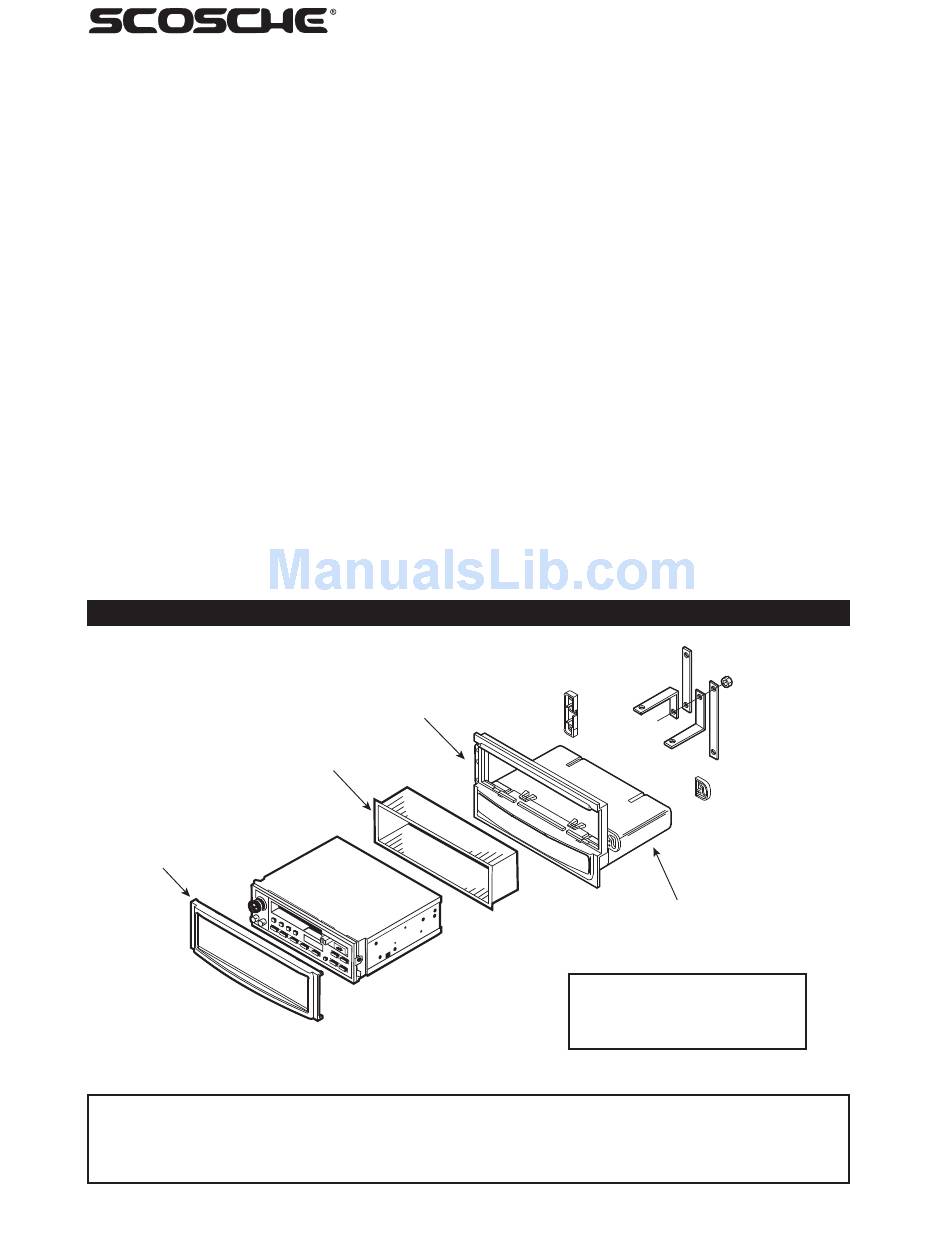

ASSEMBLING THE KIT
