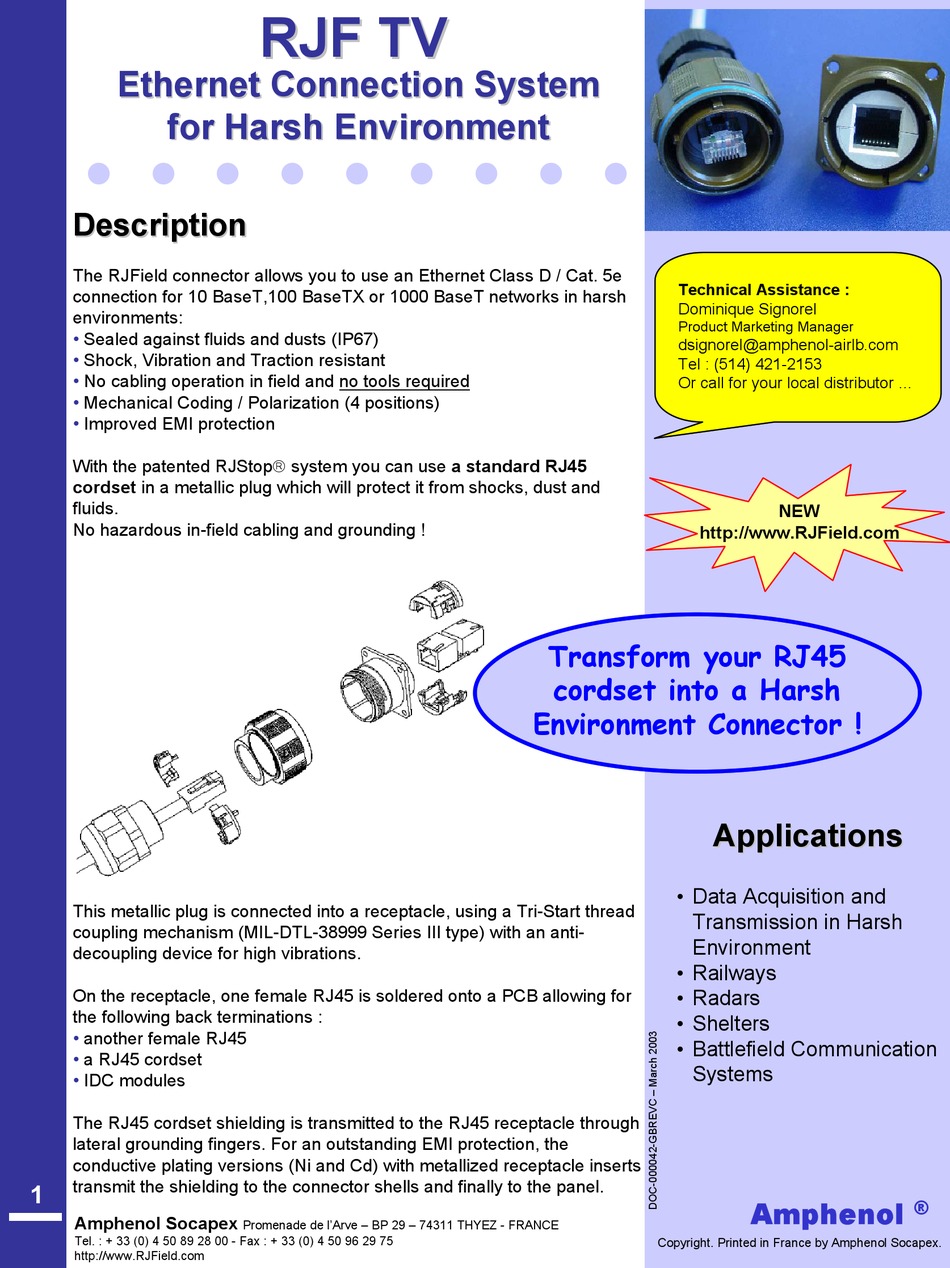

Amphenol RJF TV Series Manual

Amphenol RJF TV Series Manual

Ethernet connection system for harsh environment

Advertisement

Quick Links

Ethernet
Ethernet
for
for
Description
Description
The RJField connector allows you to use an Ethernet Class D / Cat. 5e
connection for 10 BaseT,100 BaseTX or 1000 BaseT networks in harsh
environments:
Sealed against fluids and dusts (IP67)
Shock, Vibration and Traction resistant
No cabling operation in field and no tools required
Mechanical Coding / Polarization (4 positions)
Improved EMI protection
With the patented RJStop system you can use a standard RJ45
cordset in a metallic plug which will protect it from shocks, dust and
fluids.
No hazardous in-field cabling and grounding !

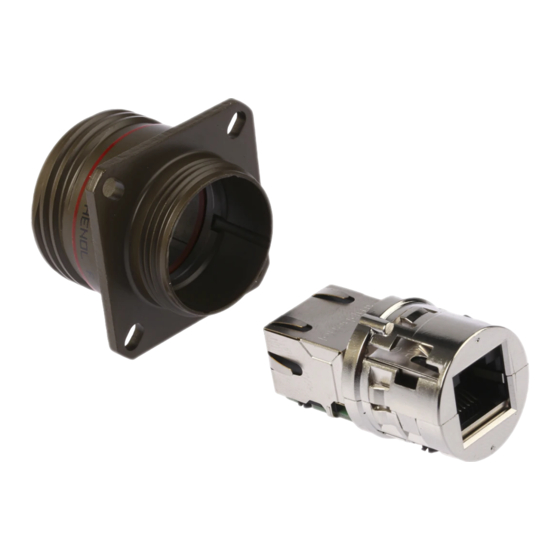

This metallic plug is connected into a receptacle, using a Tri-Start thread
coupling mechanism (MIL-DTL-38999 Series III type) with an anti-
decoupling device for high vibrations.
On the receptacle, one female RJ45 is soldered onto a PCB allowing for
the following back terminations :
another female RJ45
a RJ45 cordset
IDC modules
The RJ45 cordset shielding is transmitted to the RJ45 receptacle through
lateral grounding fingers. For an outstanding EMI protection, the
conductive plating versions (Ni and Cd) with metallized receptacle inserts
transmit the shielding to the connector shells and finally to the panel.
1
Amphenol Socapex
Tel. : + 33 (0) 4 50 89 28 00 - Fax : + 33 (0) 4 50 96 29 75
http://www.RJField.com
RJF TV
RJF TV
Connection
Connection
Harsh Environment
Harsh Environment
Promenade de l'Arve – BP 29 – 74311 THYEZ - FRANCE
System
System
Transform your RJ45
cordset into a Harsh
Environment Connector !
Technical Assistance :
Dominique Signorel
Product Marketing Manager
dsignorel@amphenol-airlb.com
Tel : (514) 421-2153
Or call for your local distributor ...
NEW
http://www.RJField.com
Applications
Applications
• Data Acquisition and
Transmission in Harsh
Environment
• Railways
• Radars
• Shelters
• Battlefield Communication
Systems
Amphenol
Amphenol
Copyright. Printed in France by Amphenol Socapex.
Copyright. Printed in France by Amphenol Socapex.
®
®
