Amphenol RJF 544 Quick Start Manual

Ethernet Connection System
for Harsh Environment

Description

Description
RJField allows you to use an Ethernet Class D / Cat. 5e
connection for 10 BaseT,100 BaseTX or 1000 BaseT
networks in harsh environments:
• Sealed against fluids and dusts (IP67)
• Shock, Vibration and Traction resistant
• No cabling operation in field and no tools required
• Improved EMI Protection

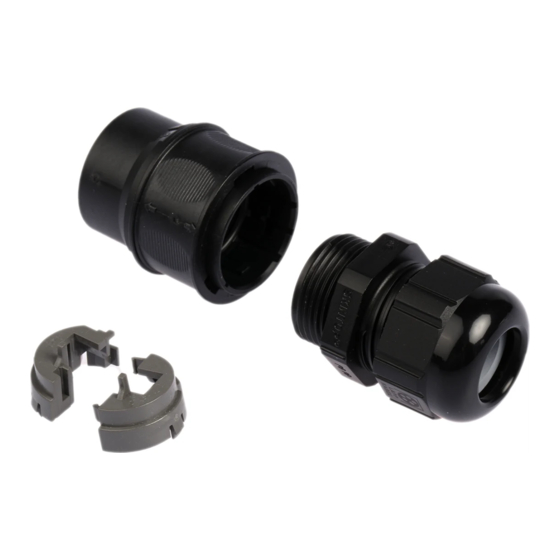

With the patented RJStop system you can use a standard
RJ45 cordset in a protective composite plug which will
protect it from shocks, dust and fluids.
No hazardous in-field cabling and grounding !
This RJF 544 plug is connected into a receptacle, using a
quick user-friendly Push Pull coupling mechanism.
On the receptacle, one female RJ45 is soldered onto a PCB
allowing for the following back terminations :
• another female RJ45
• a RJ45 cordset
• IDC modules
The RJ45 cordset shielding is transmitted to the RJ45
Receptacle through lateral grounding fingers.
For an outstanding EMI protection, a metallized (Ni), version
of the RJF 544 receptacle, transmits the shielding directly to
the panel.
1
Amphenol Socapex
Tel. : + 33 (0) 4 50 89 28 00 - Fax : + 33 (0) 4 50 96 29 75
http://www.amphenol-socapex.com/RJField.html
RJF 544
RJF 544
Promenade de l'Arve – BP 29 – 74311 THYEZ - FRANCE
Transform your RJ45
cordset into a
IP67 Connector !

Applications

Applications
• Telecom Equipments
• Robotics
• Industrial Process Control
• CNC Machines
• Special Machines
• Motion Control
• Tele-maintenance
