Ethernet Connection System for Harsh
Environment – Industrial Ethernet
Description
Description
RJField allows you to use an Ethernet Class D / Cat. 5e
connection for 10 BaseT,100 BaseTX or 1000 BaseT
networks in harsh environments:
• Sealed against fluids and dusts (IP67)
• Shock, Vibration and Traction resistant
• No cabling operation in field and no tools required
• Improved EMI Protection

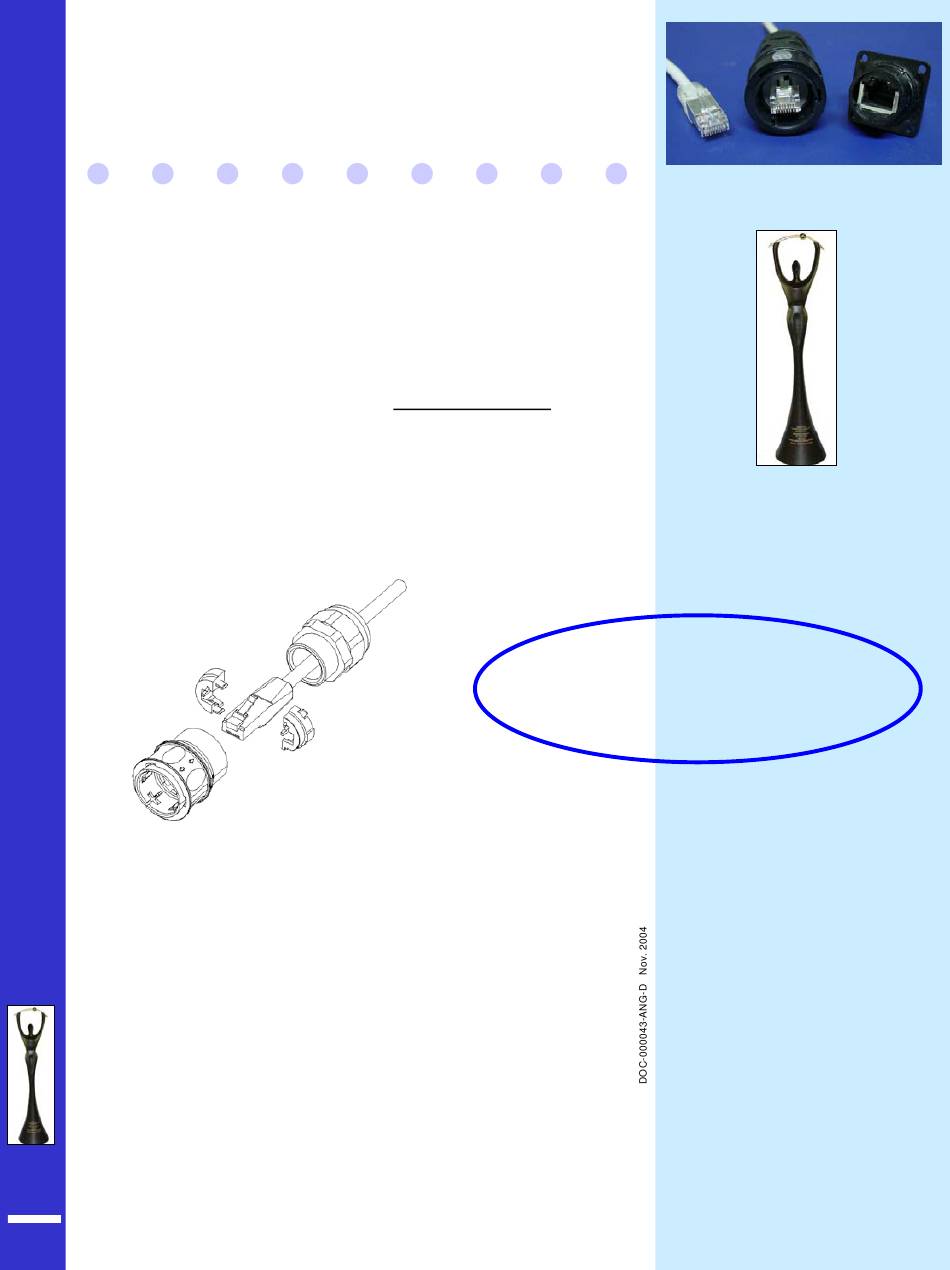

With the patented RJStop® system you can use a standard
RJ45 cordset in a protective composite plug which will
protect it from shocks, dust and fluids.
No hazardous in-field cabling and grounding !

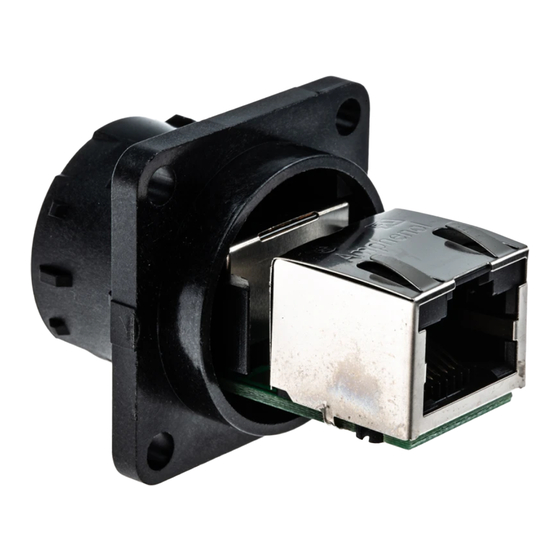

This RJF 544 plug is connected into a receptacle, using a
quick user-friendly Push Pull coupling mechanism.
On the receptacle, one female RJ45 is soldered onto a PCB
allowing for the following back terminations :
• another female RJ45
• a RJ45 cordset
• a Solder termination
The RJ45 cordset shielding is transmitted to the RJ45
receptacle through lateral grounding fingers.
For an outstanding EMI protection, a metallized (Ni), version
of the RJF 544 receptacle, transmits the shielding directly to
the panel.
1
Amphenol Pcd
– 2 Technology Drive – Peabody – Massachussetts – 01960 USA
Tel. :+ 1 978-532-8800 x273
http://www.rjfield.com
RJF 544
RJF 544
Fax : + 1 978-532-680
RJField awarded « Component
Product of the Year »
Transform your RJ45
cordset into a
IP67 Connector !
Applications
• Telecom Equipments
• Video Control
• Robotics
• Industrial Process Control
• CNC Machines
• Special Machines
• Motion Control
• Tele-maintenance
Electronica 2004 :
Push Pull
Applications
Amphenol
Amphenol
®
®
