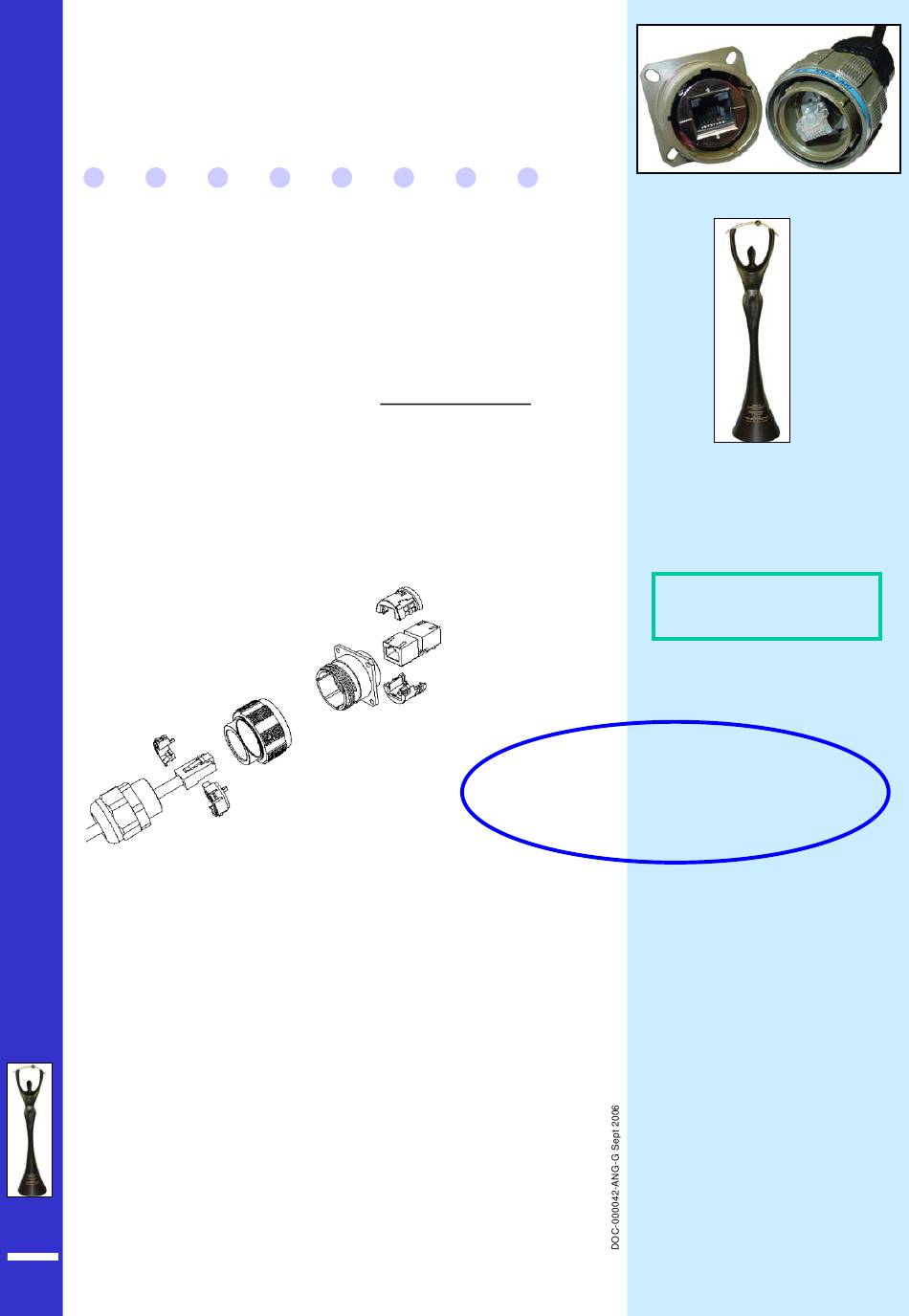

Ethernet Connection System
for Harsh Environment
Description
Description
RJField allows you to use an Ethernet Class D / Cat. 5e
connection for 10 BaseT,100 BaseTX or 1000 BaseT
networks in harsh environments:
• Sealed against fluids and dusts (IP67)
• Shock, Vibration and Traction resistant
• No cabling operation in field and no tools required
• Mechanical Coding / Polarization (4 positions)
• Improved EMI protection
With the patented RJStop® system you can use a standard
RJ45 cordset in a metallic plug which will protect it from
shocks, dust and fluids.
No hazardous in-field cabling and grounding !
This metallic plug is connected into a receptacle, using a Tri
Start Thread coupling mechanism (MIL-DTL-38999 series III
type) with anti-decoupling device for high vibrations.
On the receptacle, one female RJ45 is soldered onto a PCB
allowing for the following back terminations :
• another female RJ45
• a RJ45 cordset
• a solder termination
The RJ45 cordset shielding is transmitted to the RJ45
receptacle through lateral grounding fingers.
For an outstanding EMI protection, the conductive plated
shells (Ni, Cd) with metallized receptacle inserts, transmit
the shielding to the connector shells and finally to the panel.
1
Amphenol Socapex
Tel. :+ 33 (0) 4 50 89 28 00 - Fax : + 33 (0) 4 50 96 29 75
http://www.rjfield.com
RJF TV
RJF TV
Promenade de l'Arve -B.P.29 - 74311 THYEZ – F
RJField awarded « Component
Product of the Year »
ROHS compliant :
« N » : Nickel plating
Transform your RJ45
cordset into a Harsh
Environment Connector !
Applications
Applications
• Data
Transmission in harsh
environment
• Railways
• Radars
• Shelters
• Battelfield Communication
Systems
• Navy
Electronica 2004 :
Acquisition and
Amphenol
®
Amphenol
®
