Document No: 8P1147
Rev.00

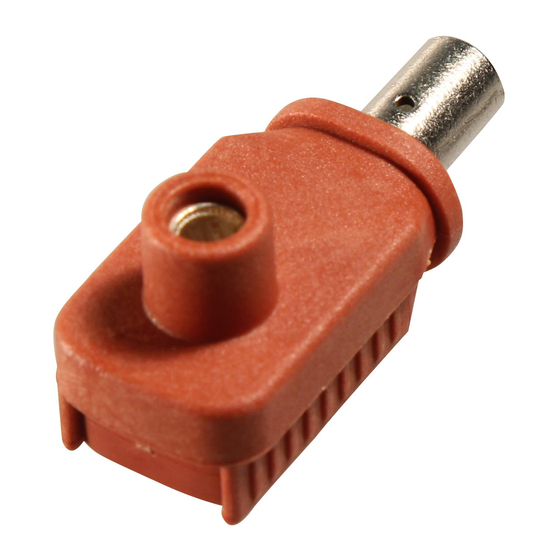

RLA 5.7mm 组装式接头安装说明
The Assembly Manual for
RLA 5.7 mm
assembly type
RLA9057-101-F1BK
RLA9057-101-F1OR
RLA9057-101-F1RE
RLA9057-111-F1BK
RLA9057-111-F1OR
RLA9057-111-F1RE
Connector
RLA00571-25BK
RLA00571-25OR
RLA00571-25RE
RLA00571-16BK
RLA00571-16OR
RLA00571-16RE
RLA00571-10BK
RLA00571-10OR
RLA00571-10RE
www.amphenol-gec.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amphenol RLA00571-25BK
Summary of Contents for Amphenol RLA00571-25BK
- Page 1 Document No: 8P1147 Rev.00 RLA 5.7mm 组装式接头安装说明 The Assembly Manual for RLA 5.7 mm assembly type Connector RLA00571-25BK RLA00571-25OR RLA00571-25RE RLA00571-16BK RLA00571-16OR RLA00571-16RE RLA00571-10BK RLA00571-10OR RLA00571-10RE RLA9057-101-F1BK RLA9057-101-F1OR RLA9057-101-F1RE RLA9057-111-F1BK RLA9057-111-F1OR RLA9057-111-F1RE www.amphenol-gec.com...
- Page 2 RLA 5.7mm 组装式接头安装说明 The Assembly Manual for RLA 5.7 mm assembly type Connector 第一部分：插头包装清单 Part 1： Package contents for Plug connector ② ① ④ ③ ① 上盖组件 Upper cover assembly ×1 ② R4端子组件 R4 terminal Assy ×1 ③ 下盖 Lower cover ×1 ④...
-
Page 3: Part 2: Plug Assembly
1-1 Cut cable: take the right cable according to table 1 and cut the cable according to product length. 表1：线材规格 Table 1：Cable Spec 接头料号 线缆规格 线缆外径 线缆料号 Connector part no Cable size Accepted cable OD (mm) Cable part no RLA00571-25BK/OR/RE 25mm² 10.20 ± 0.2 7P0025U RLA00571-16BK/OR/RE 16mm² 8.10 ± 0.2 7P0016U RLA00571-10BK/OR/RE 10mm² 6.25 ± 0.2 7P0010U 1-2 剥外被：按图示尺寸剥外被... - Page 4 RLA 5.7mm 组装式接头安装说明 The Assembly Manual for RLA 5.7 mm assembly type Connector ⑴ 建议使用推荐线材（型号详见步骤1-1），如果客户选用其它电缆，请联系安费诺业务，协商订制零配件 Recommended cable should be used. （See section 1-1 for details.） If you need to use customized cable, Please contact local sales for product extensions ⑵ 压接高度和拉拔力需要配合压接截面的金相分析，客户才能判断压接质量合格,端子压接需要满足压缩比要求：80-90%。...
- Page 5 RLA 5.7mm 组装式接头安装说明 The Assembly Manual for RLA 5.7 mm assembly type Connector 第三部分：插座组装 Part 3: Socket Assembly 1 RLA插座安装面板要求 1 RLA Receptacle Install Panel Requirements •1、表面粗糙度 pimpling:Ra3.2 •2、平面度planeness:0.2mm •3、推荐安装面板厚度:2.0mm (The thickness of the panel) 2 RLA插座安装扭力要求 2 RLA Receptacle Install torque requirements •1、推荐安装扭力Install torque：0.8N.m •2、M5螺纹柱安装扭力Mounting torque of M5 screw：1.5~2.0N.m 3 RLA接头装配方法...
- Page 6 PLS500 单芯直头连接器安装说明 The Assembly Manual for PLS500 1 POS straight Plug Connector 版本记录 Revision history 序号 变更内容 日期 Number Content of change Date 新出 20210811 New issue Rev.00 20210811 Document No: 8P1147 05-05...
- Page 7 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
