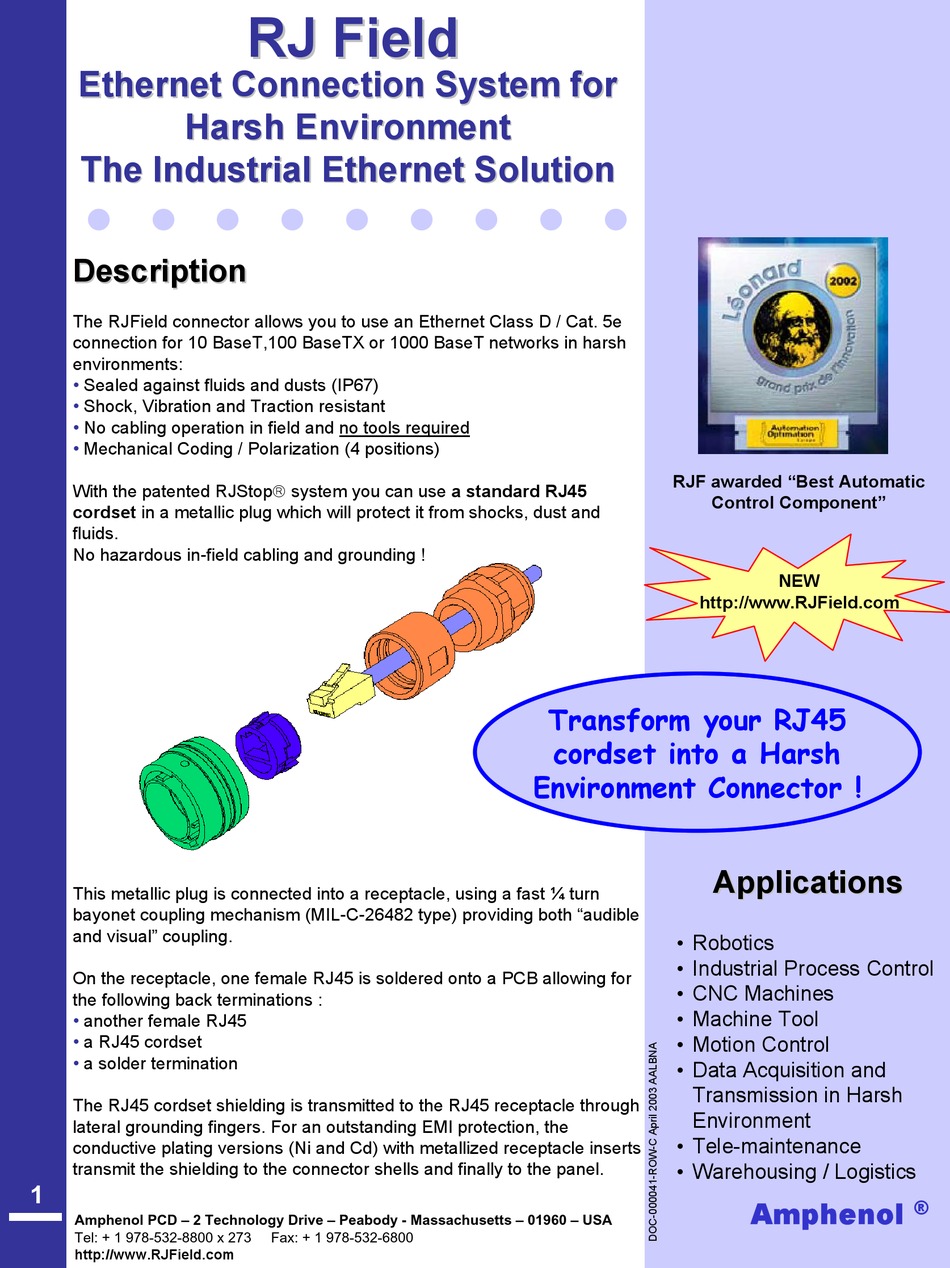

Amphenol RJField Series Manual

Ethernet connection connection system for system for harsh environment harsh environment the industrial the industrial ethernet solution ethernet solution

Advertisement

Quick Links

Ethernet
Ethernet
Harsh Environment
Harsh Environment
The Industrial
The Industrial
Description
Description
The RJField connector allows you to use an Ethernet Class D / Cat. 5e
connection for 10 BaseT,100 BaseTX or 1000 BaseT networks in harsh
environments:
Sealed against fluids and dusts (IP67)
Shock, Vibration and Traction resistant
No cabling operation in field and no tools required
Mechanical Coding / Polarization (4 positions)
With the patented RJStop system you can use a standard RJ45
cordset in a metallic plug which will protect it from shocks, dust and
fluids.
No hazardous in-field cabling and grounding !
This metallic plug is connected into a receptacle, using a fast ¼ turn
bayonet coupling mechanism (MIL-C-26482 type) providing both "audible
and visual" coupling.
On the receptacle, one female RJ45 is soldered onto a PCB allowing for
the following back terminations :
another female RJ45
a RJ45 cordset
a solder termination
The RJ45 cordset shielding is transmitted to the RJ45 receptacle through
lateral grounding fingers. For an outstanding EMI protection, the
conductive plating versions (Ni and Cd) with metallized receptacle inserts
transmit the shielding to the connector shells and finally to the panel.
1
Amphenol PCD – 2 Technology Drive – Peabody - Massachusetts – 01960 – USA
Tel: + 1 978-532-8800 x 273
http://www.RJField.com
RJ Field
RJ Field
Connection
Connection
Ethernet Solution
Ethernet Solution
Fax: + 1 978-532-6800
System for
System for
Transform your RJ45
cordset into a Harsh
Environment Connector !
RJF awarded "Best Automatic
Control Component"
NEW
http://www.RJField.com
Applications
Applications
• Robotics
• Industrial Process Control
• CNC Machines
• Machine Tool
• Motion Control
• Data Acquisition and
Transmission in Harsh
Environment
• Tele-maintenance
• Warehousing / Logistics
Amphenol
Amphenol
 Amphenol 2003 All rights reserved
®
®
