- Page 1 Cold Food Drop-In Wells 100-CW 200-CW 100-CW 300-CW 400-CW 500-CW 600-CW 300-CW • Installation • Operation 500-CW • Maintenance W164 N9221 Water Street • P.O. Box 450 Menomonee Falls, Wisconsin 53052-0450 U.S.A. 262.251.3800 • 800.558.8744 PHONE: U.S.A. / CANADA 262.251.7067 • 800.329.8744 FAX: U.S.A.
-
Page 2: Table Of Contents
Table of Contents Warranty and Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Delivery . -
Page 3: Warranty And Service Information

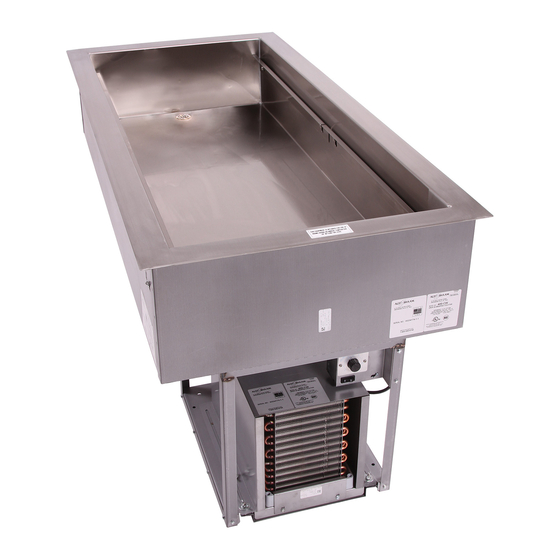

Drop-in Cold Well The Alto-Shaam Cold Well uses proven cold wall conductive cooling that doesn't blow air over the top of the food, so your food stays moist and appealing for hours. Less waste, lower food costs, and more sales means that more money goes back to your bottom line. -
Page 4: Delivery
. This manual must be read and understood by all people using or installing the appliance . Contact the Alto-Shaam Tech Team Service Department if you have any questions concerning installation, operation, or maintenance . -
Page 5: Transportation Damage And Claims
. fi led and actively pursued . Alto-Shaam cannot, however, 2 . Do not sign a delivery receipt or a freight bill until fi le any damage claims, assume the responsibility of any a proper count has been made and inspection of all claims, or accept deductions in payment for such claims . -
Page 6: Unpacking
Alto-Shaam of all liability . • Remove all protective plastic fi lm, packaging materials, and accessories from the appliance before connecting electrical power . Store any accessories in a convenient place for future use . -
Page 7: Safety Procedures
. users . Alto-Shaam recommends regular staff training to Alto-Shaam recommends regular staff training to avoid avoid the risk of accident or damage to the appliance . - Page 8 If your appliance makes an especially loud noise play with the appliance. warranty and relieve Alto-Shaam of all liability . when starting up, shut down the appliance and call a qualifi ed and trained service technician .
-
Page 9: Dimensions
Dimensions 100-CW 18-1/2" (470mm) 2-1/2" (64mm) Accessories 12" (305mm) Half Size / Third-Size Divider Bars 1014395 25-1/8" (638mm) 16-7/16" (418mm) 200-CW 31-7/16 (799mm) 2-1/2" (64mm) 31-7/16" (799mm) 29-3/8" (746mm) 25-1/8" (638mm) MN-36033 • Rev 3 • 04/19 • Cold Food Drop-In Well Manual... - Page 10 Dimensions 300-CW 44-1/4" (1124mm) 2-1/2" (64mm) 44-1/4" (1124mm) 42-1/4" (1072mm) 25-1/8" (638mm) 400-CW 57-1/4" (1453mm) 2-1/2" (64mm) 57-1/4" (1453mm) 55-3/16" (1401mm) 25-1/8" (638mm) MN-36033 • Rev 3 • 04/19 • Cold Food Drop-In Well Manual...
- Page 11 Dimensions 500-CW 70-1/8" (1781mm) 2-1/2" (64mm) 70-1/8" (1781mm) 68-1/16" (1729mm) 25-1/8" (638mm) 600-CW 83" (2108mm) 2-1/2" (64mm) 83" (2108mm) 81" (2056mm) 25-1/8" (638mm) MN-36033 • Rev 3 • 04/19 • Cold Food Drop-In Well Manual...
-
Page 12: Installation
Rough Cut Openings Model Countertop Opening Air Louver Opening 16-7/8" L x 25-1/2" W 21" H x 16" W 100-CW (one pan) (429mm x 648mm) (533mm x 406mm) 29-7/8" L x 25-1/2" W 21" H x 16" W 200-CW (two pan) - Page 13 Air intake Retractable condenser shroud must be extended to align with the fresh air louver panel Model 18-1/2" 27" 16-7/8" 25-1/2" 1-1/2" – 7-1/2" 100-CW (one pan) (470mm) (686mm) (429mm) (648mm) (38mm – 191mm) 31-7/16" 27" 29-7/8" 25-1/2" 1-1/2" – 7-1/2"...
- Page 14 Site Installation WARNING The Alto-Shaam Cold Well must be installed in a location that will permit it to function for its To prevent personal injury, death or intended purpose and to allow adequate clearance for property damage: ventilation, proper cleaning, and maintenance access .
- Page 15 . The mechanical Bolt pattern for Bolt pattern for housing (except on 100-CW appliances) can be rotated side of cold well rear of cold well to align the condenser air intake with the cabinet fresh air opening .
-
Page 16: Electrical Installation
Electrical and Plumbing Installation WARNING Electrical Plug To prevent serious injury, death, or 5 .0 NEMA 5-15P property damage: 15A-125V plug 9' (229mm) long cord All electrical connections must be made by a qualified and trained service An identification tag is permanently mounted on the front technician in accordance with applicable Installation Requirements control panel of the appliance . -
Page 17: Installation Checklist
Installation Checklist Prior to start-up Locate nameplate and record the serial number . The serial number is required when ordering replacement parts or requesting warranty service . Follow the cut out dimensions provided for specific models to properly size the opening . The condenser coil must face a ventilated opening in the cabinet . -
Page 18: Operation
1 . Do not add water to the cold well . 4 . Load chilled foods into the cold well . Alto-Shaam cold wells do not require the addition of After pre-chilling the appliance, place cold foods water . Adding water is not recommended since water... -
Page 19: Food Safety
Food Safety Food fl avor and aroma are usually so closely related that it Internal Food Product Temperatures is diffi cult, if not impossible, to separate them . There is also Hot Foods an important, inseparable relationship between cleanliness Danger Zone 40°F to 140°F 4°C to 60°C and food fl avor . -
Page 20: Cleaning And Preventative Maintenance
If further extinguishing is required, disconnect the appliance from the main power and call the fire department. Failure to clean the appliance properly voids the warranty and relieves Alto-Shaam of all liability. MN-36033 • Rev 3 • 04/19 • Cold Food Drop-In Well Manual... - Page 21 Cleaning and Preventative Maintenance Clean the appliance daily WARNING 1 . Press the On/Off switch to the off (O) position . Disconnect the appliance from the power source . Allow To prevent serious personal injury, death, or the frost on the rail of the appliance to melt . property damage: Do not steam clean, hose down or flood the 2 .
- Page 22 Cleaning and Preventative Maintenance Preventative Maintenance Program (perform monthly) 1 . Clean all condenser coils . Condenser coils are a critical components in the life of the compressor and must remain clean to ensure proper air flow and heat transfer . Clean the condenser coils with a coil cleaner and/or a vacuum, cleaner, and a brush .
-
Page 23: Troubleshooting
The circuit breaker is tripped . Replace the circuit breaker . The problem is unknown . Call the Alto-Shaam service agency . Plug in the appliance and check the The appliance does not There is no power to the appliance . -
Page 24: Service
Service Exterior Service View (600-CW shown) WARNING To prevent serious injury, death, or property damage, always disconnect the appliance from the power source before cleaning or servicing. Item Description Part No. Item Description Part No. Panel, Louvered Flat 18" x 22" PE-35919 Power Cord, 9' (2743mm) and Plug, Male CD-35920... - Page 25 Service Condensing Unit Service View WARNING To prevent serious injury, death, or property damage, always disconnect the appliance from the power source before cleaning or servicing. Item Description Part No. Coil, Condenser, 1/4 HP RE-35924 Condenser Fan Motor, Blade, and MO-35928 Guard Assembly Capillary Tube with Drier...
-
Page 26: Wiring Diagrams
Wiring Diagram Serial number is required for all inquiries. Part numbers and drawings are subject to change without notice. MN-36033 • Rev 3 • 04/19 • Cold Food Drop-In Well Manual... -
Page 27: Limited Warranty
fi tness for a particular purpose. No person except an offi cer of Alto- Shaam, Inc. is authorized to modify this warranty or to incur on behalf of Alto-Shaam any other obligation or liability in connection with Alto-Shaam equipment.
