Dc1805a setup
Jumpers
JP1 – Sets the DC bias for V
internally biased or externally driven. The voltage on this
pin sets the output common mode voltage level. V
is the default setting.
JP2 – Toggles the LTC6362 On and Off. Part On (5V) is
the default setting.
JP3 – In the REF position the Digital Gain Compression
is off and the analog input range at ADC inputs is 0V to
V
. In the GND position Digital Gain Compression is
REF
turned on and the analog input range at ADC inputs is
0.1V
to 0.9V
.
REF
REF
of the LTC6362 to be
OCM
/2
REF

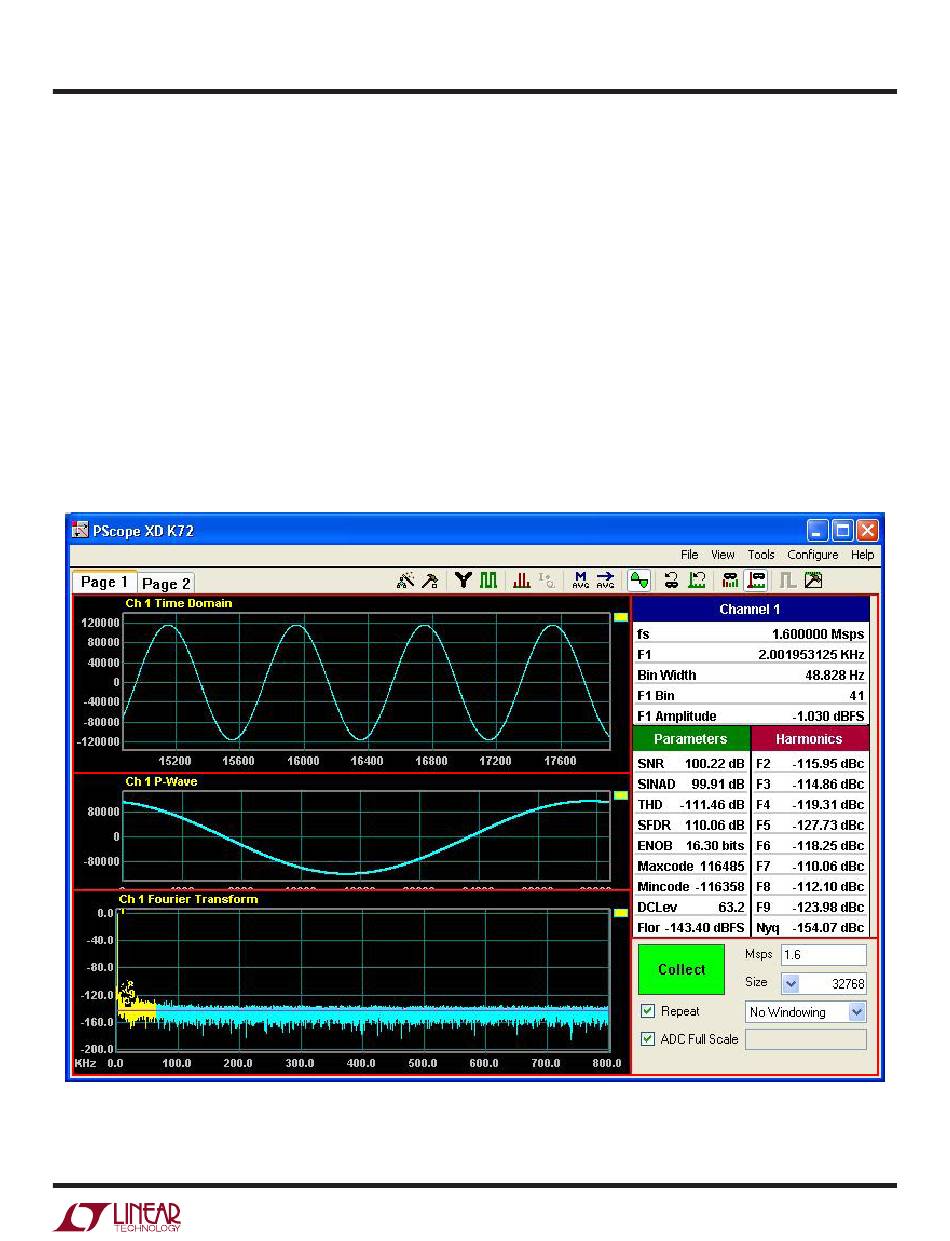

Figure 4. PScope Screenshot
DEMO MANUAL DC1805A
JP4 – Ties the WP pin to V
write-protect pin. If tied to V
is enabled. If WP is tied to GND, the hardware write-
protection is disabled.
JP5 – VCCIO sets the output levels at J3 to either 3.3V
or 2.5V. Use 3.3V to interface to the DC718 which is the
default setting.
or GND. WP is the hardware
CC
, hardware write protection
CC
dc1805af
5
