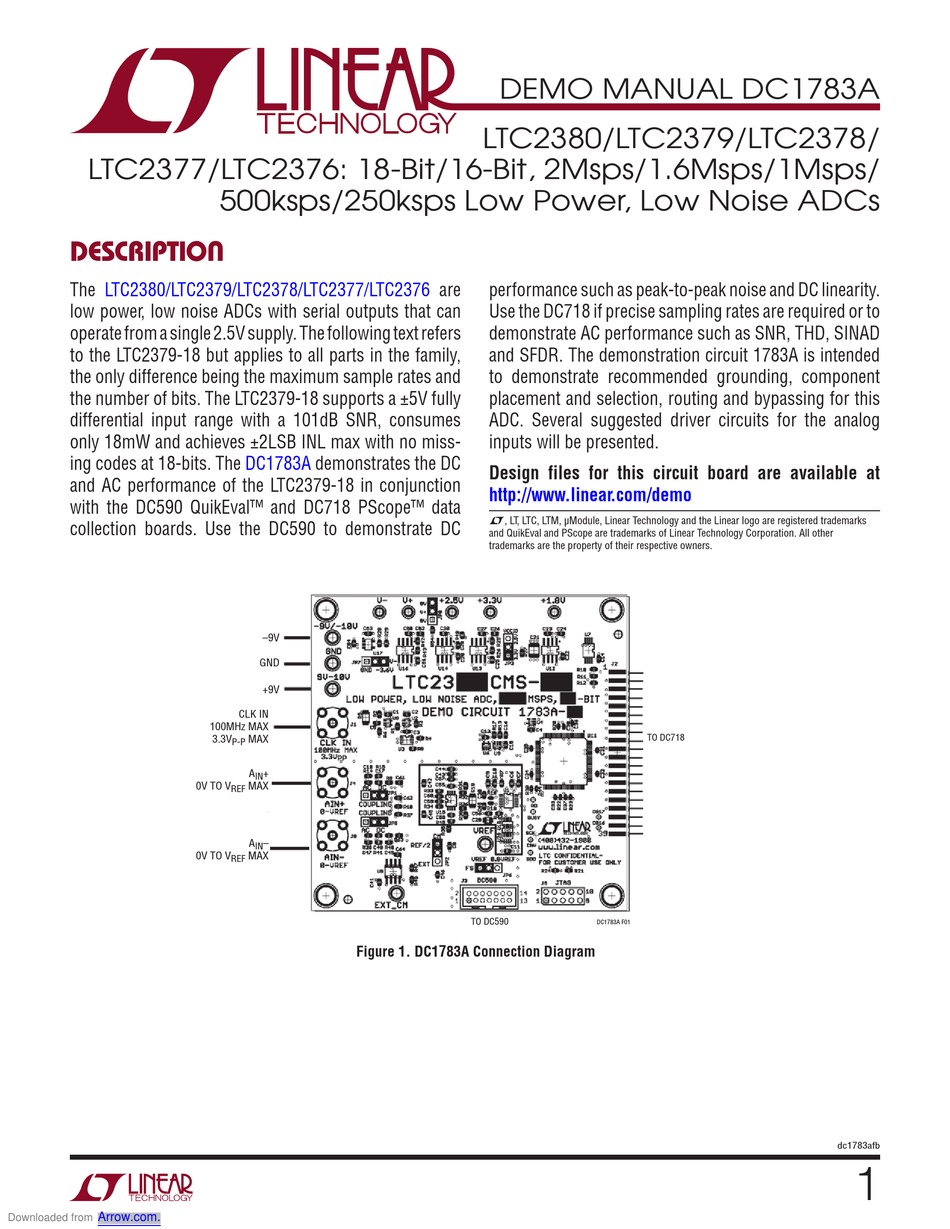

Linear Technology DC1783A-A Demo Manual

LTC2377/LTC2376: 18-Bit/16-Bit, 2Msps/1.6Msps/1Msps/
DESCRIPTION
The LTC2380/LTC2379/LTC2378/LTC2377/LTC2376
low power, low noise ADCs with serial outputs that can
operate from a single 2.5V supply. The following text refers
to the LTC2379-18 but applies to all parts in the family,
the only difference being the maximum sample rates and
the number of bits. The LTC2379-18 supports a ±5V fully
differential input range with a 101dB SNR, consumes
only 18mW and achieves ±2LSB INL max with no miss-
ing codes at 18-bits. The
and AC performance of the LTC2379-18 in conjunction
with the DC590 QuikEval™ and DC718 PScope™ data
collection boards. Use the DC590 to demonstrate DC
Arrow.com.
Downloaded from
500ksps/250ksps Low Power, Low Noise ADCs

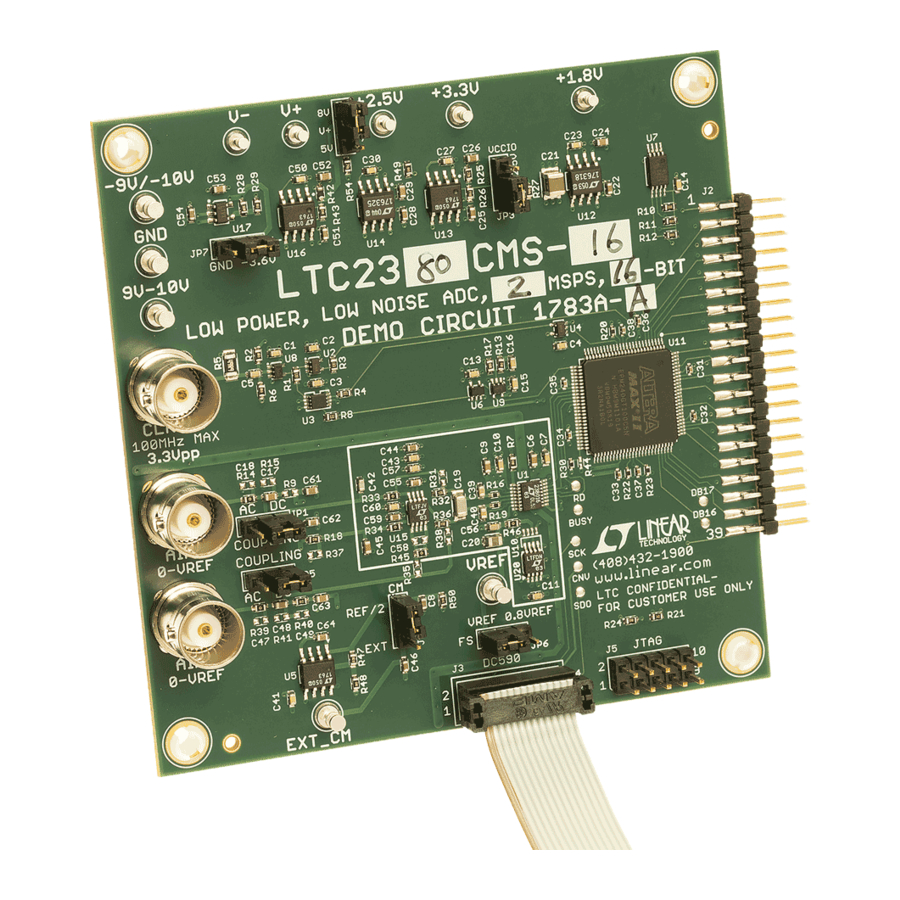

DC1783A demonstrates the DC
–9V
GND
+9V
CLK IN
100MHz MAX
3.3V MAX
P-P
A +
IN
0V TO V MAX
REF
A –
IN
0V TO V MAX
REF
Figure 1. DC1783A Connection Diagram
DEMO MANUAL DC1783A
LTC2380/LTC2379/LTC2378/
are performance such as peak-to-peak noise and DC linearity.
Use the DC718 if precise sampling rates are required or to
demonstrate AC performance such as SNR, THD, SINAD
and SFDR. The demonstration circuit 1783A is intended
to demonstrate recommended grounding, component
placement and selection, routing and bypassing for this
ADC. Several suggested driver circuits for the analog
inputs will be presented.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks
and QuikEval and PScope are trademarks of Linear Technology Corporation. All other
trademarks are the property of their respective owners.
TO DC590
DC1783A F01
TO DC718
dc1783afb
1
