Linear Technology DC1500A Demo Manual

DESCRIPTION
®
The LTC 2393/LTC2392/LTC2391-16 are low noise high
speed ADCs with both parallel and serial outputs that
can operate from a single 5V supply. The following text
refers to the LTC2393-16 but applies to all three parts.
The only difference being the maximum sample rates. The
LTC2393-16 supports a large ±4.096V fully differential input
range. This makes it ideal for high performance applica-
tions that require maximum dynamic range. Demonstration
circuit 1500A provides the user a means of evaluating the
CLK_IN
1MHz MAX
(80MHz FOR SERIAL)
3.3V MAX
P-P
–
A
IN
0V TO 4.096V MAX
(NOT NEEDED UNLESS
U2 IS DISABLED)
+
A
IN
0V TO 4.096V MAX
Table 1
ASSEMBLY VERSION
DC1500A-A
DC1500A-B
DC1500A-C
–9V
Figure 1. DC1500A Connection Diagram
PART NUMBER MAX CONVERSION RATE
LTC2393CLX-16
LTC2392CLX-16
LTC2391CLX-16 0.25Msps
DEMO MANUAL DC1500A
LTC2393-16/LTC2392-16/
LTC2391-16: 16-Bit,1Msps/

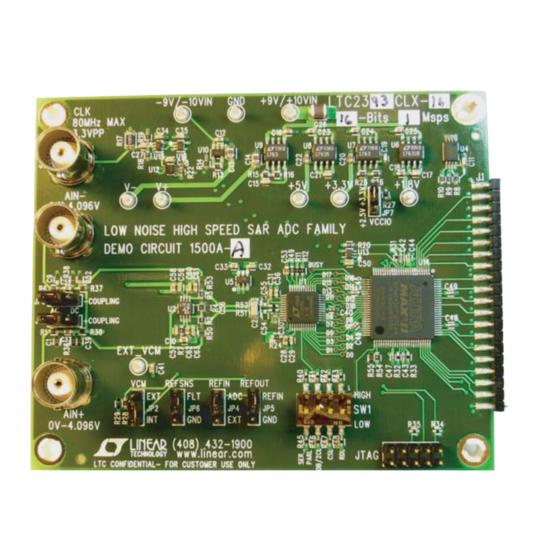

performance of the LTC2393-16 in both parallel and serial
modes and is intended to demonstrate recommended
grounding, component placement and selection, routing
and bypassing for this ADC. Also several suggested driver
circuits for the analog inputs will be presented.
Design fi les for this circuit board are available at www.
linear.com/demo.
