200 PSI COMPRESSORS - MODEL NUMBERS

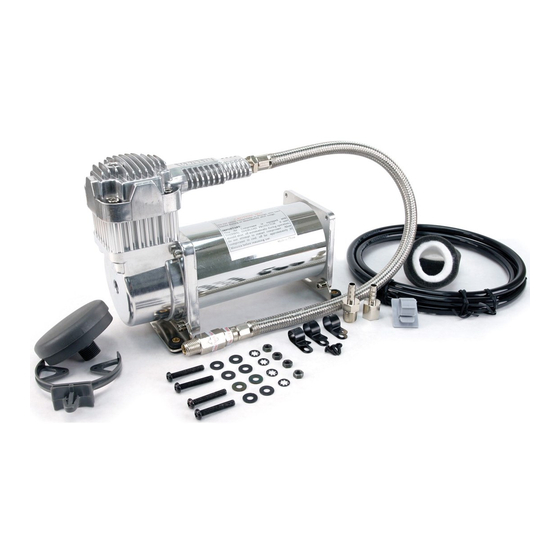

380C AIR COMPRESSOR KIT
480C AIR COMPRESSOR KIT
It is essential that you and any other operator of this
product read and understand the contents of this manual
before installing and using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
PART NO. 38033
PART NO. 48043
380C
480C
IMPORTANT:
USER MANUAL
Advertisement
Table of Contents
Related Manuals for VIAIR 380C
Summary of Contents for VIAIR 380C
- Page 1 200 PSI COMPRESSORS - MODEL NUMBERS 380C AIR COMPRESSOR KIT PART NO. 38033 480C AIR COMPRESSOR KIT PART NO. 48043 380C 480C IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product.
-
Page 2: Important Safety Instructions
380C - 480C COMPRESSOR KIT IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs. - Do not use this product in or area where it can fall or be pulled into water or other liquids. - Do not reach for this product if it has fallen into liquid. - Use this compressor with 12-volt DC systems only. - This product should never be left unattended during use. WARNING - To prevent injury: - Never allow children to operate this compressor. Close supervision is necessary when this compressor is being used near children. -
Page 3: Mounting And Wiring
16. Once air pressure reaches preset cut out pressure of your pressure switch, the compressor will shut off. Inspect all air line connections for leaks with soap and water solution. If a leak is detected, the air line may not be cut squarely or pushed all the way in. Repair connections as needed. (Fig. 1) 380C / 480C Compressor Installation Parts List: A. Hose Bracket (1pc) B. Mounting Bolts (4pcs) C. Flat Washers (8pcs) D. Locking Washers (4pcs) E. Nuts (4pcs) -
Page 4: Maintenance And Repairs
380C - 480C COMPRESSOR KIT (Fig. 2) Compressor (Fig. 3) Leader Hose Bracket Mounting Hardware L. Hose Clamp B. Mounting Bolt M. Clamp Release Tab C. Flat Washer N. Self-Anchoring Pin D. Locking Washer E. Nut F. Vibration Isolator OPERATING INSTRUCTIONS 1. IMPORTANT: Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the compressor. Please refer to Application & Specifications Sections of this manual for details. 2. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Refer to Compressor Applications and Specifications Sections of this manual for details. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor. 3. Your air compressor is equipped with an AUTOMATIC THERMAL OVERLOAD PROTECTOR. This feature is designed to protect the air compressor from overheating and causing permanent damage to your air compressor. The thermal overload protector will automatically cut power to your air compressor should the internal operating temperature of the air compressor rise above safe levels during excessive use. 4. Should at any time during use, your air compressor automatically shuts off, do not attempt to restart the air compressor. Turn power to the air compressor OFF. The automatic thermal overload... -
Page 5: Specifications
380C - 480C COMPRESSOR KIT SPECIFICATIONS • Part No 38033 / 380C Air Compressor (CE Spec.) Motor Voltage: 12 Volts Max. Current Consumption: 22 Amps Motor Type: Permanent Magnetic Horsepower: Max. Working Pressure: 200 PSI Max. Duty Cycle (@ 72ºF & 100/200 PSI): 100% / 55% Minutes On/Off (@ 72ºF & 100 PSI): Continuous Max. Ambient Temperature: 158ºF Min. Ambient Temperature: -40ºF Auto. Reset Thermal Protection: Dimensions: 9”L x 4”W x 6.75”H Net Weight: 8.75 Lbs. • Part No. 48043 / 480C Air Compressor (CE Spec.) Motor Voltage: 12 Volts Max. Current Consumption: 20 Amps Motor Type: Permanent Magnetic Horsepower: Max. Working Pressure: 200 PSI Max. Duty Cycle (@ 72ºF & 100/200 PSI): 100% / 50% Minutes On/Off (@ 72ºF & 100 PSI):... - Page 6 380C - 480C COMPRESSOR KIT COMPRESSOR APPLICATION GUIDE To ensure that you get the highest level of satisfaction from your compressor’s performance, refer to information below: VIAIR COMPRESSOR REFERENCE CHART COMPRESSOR SERIES DUTY CYCLE WORKING PRESSURE 100 SERIES 15% 130 PSI 200 SERIES 20% 150 PSI 275 SERIES 25% 150 PSI 280 SERIES 30% 150 PSI 325 SERIES 33% 150 PSI 350 SERIES 100% 150 PSI 380 SERIES 100% 200 PSI 400 SERIES...
-
Page 7: Troubleshooting Guide
380C - 480C COMPRESSOR KIT TROUBLESHOOTING GUIDE: PROBLEM: POSSIBLE CAUSE(S) CORRECTIVE ACTION Tank pressure drops when 1. Loose drain cock 1. Tighten drain cock compressor(s) shut off 2. Check valve leaking 2. Replace check valve or 3. Loose connections compressor 3. Check all connections with soap and water solution and tighten Compressor runs 1. Excessive air usage 1. Decrease air usage continuously and air flow 2. Loose connections... - Page 8 SINGLE “C” MODEL COMPRESSOR WIRING DIAGRAM 380C - 480C COMPRESSOR KIT Wiring Diagram: (Fuse Not Included) 12V 40A Relay Fuse Battery To Keyed Power Source Pressure Switch 15 Edelman Irvine, CA 92618 949-585-0011 www.viaircorp.com Rev.1 VIAIR CORPORATION MANUFACTURER DEFECT WARRANTY:...
