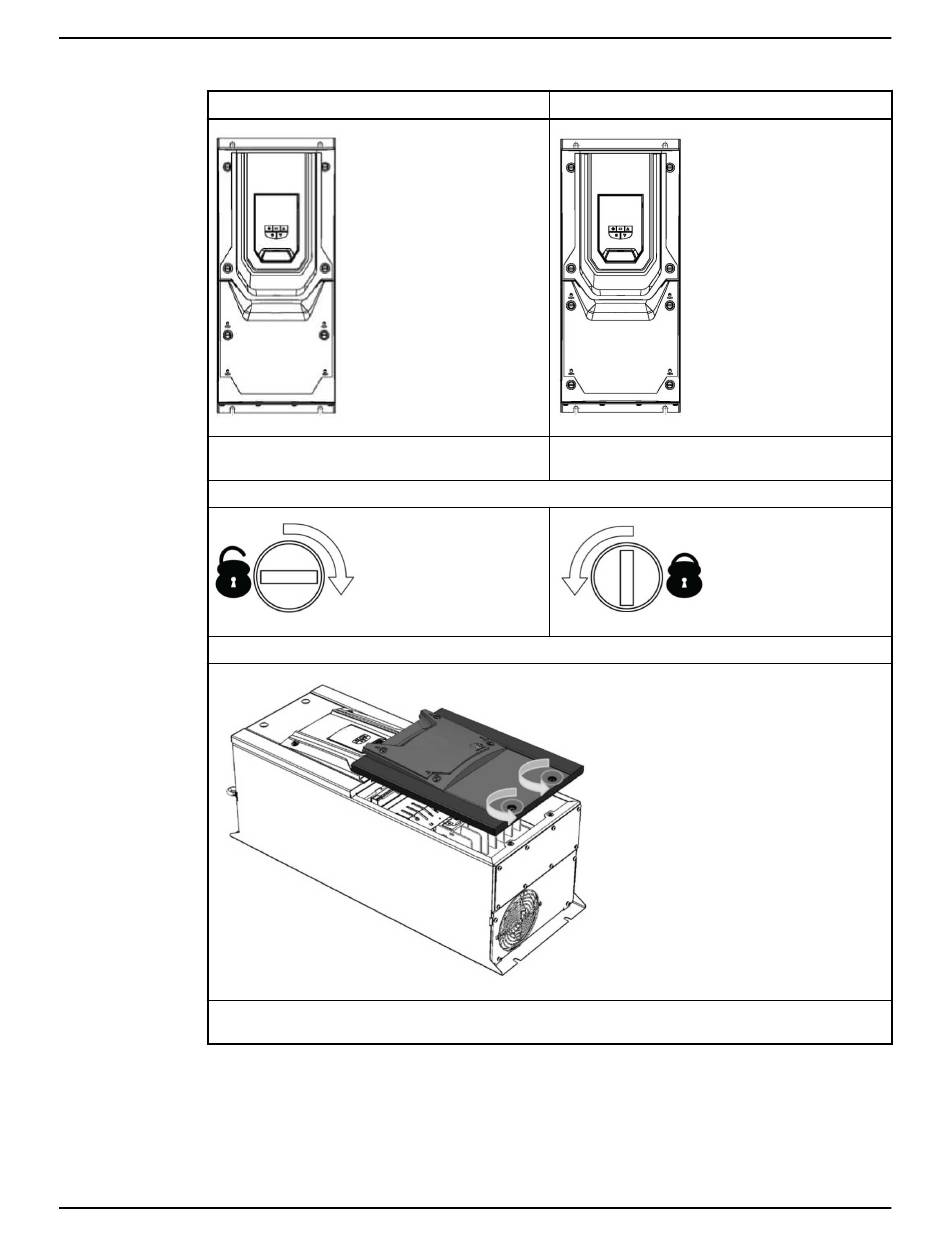

Removing the Terminal Cover

Frame Size 4
Using a suitable flat blade screwdriver, rotate the two
retaining screws indicated until the screw slot is vertical.
Terminal Cover Release Screws
Frame Size 6
Remove the two screws indicated, lift the cover forwards and off. To refit the cover, slide the top locating lugs
upwards under the top cover, then re-fasten the lower cover screws
SRC 311 - SmartRun
User guide
Frame Size 5
Using a suitable flat blade screwdriver, rotate the four
retaining screws indicated until the screw slot is vertical.
Installation
9
