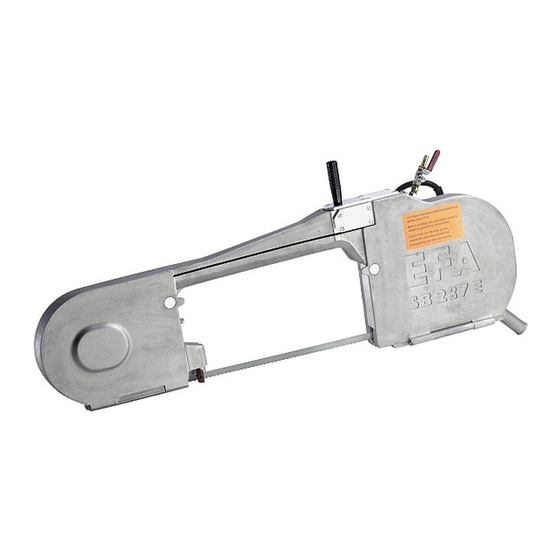

- Page 1 EFA band saws Operating instructions EFA band saws EFA SB 287 E EFA SB 287 EM EFA SB 288 E EFA SB 295 ES EFA SB 295 E EFA SB 295 EL EFA SB 327 E Rev. 02 – 03.2021 Schmid &...
- Page 2 EFA band saws Operating instructions Operating instructions Schmid & Wezel GmbH. All rights reserved. Printed in Germany. These operating instructions must not be reproduced in whole or in part, used for competitive purposes without our authorisation, or made available to third parties without our consent.
-
Page 3: Table Of Contents
5 Connection and start-up ______________________________________________________________ 16 5.1 Initial start-up ___________________________________________________________________________ 16 5.1.1 Spring balancer ___________________________________________________________________ 16 5.1.2 Adjustment of the suspension (EFA SB 327 E) ___________________________________________ 17 5.1.3 Electrical connection _______________________________________________________________ 17 5.1.4 Water connection _________________________________________________________________ 17 6 Handling ___________________________________________________________________________ 18 6.1 Switch operation ________________________________________________________________________ 18... -
Page 4: Introduction And General Information
Service department. User group Only instructed and/or trained personnel over 16 years of age are allowed to set up or operate the EFA band saw. Furthermore, it is imperative that everyone working with and on the machine has read and understood the operating instructions, and observes them. -
Page 5: Scope Of Supply
The splitting saw is used in medium-sized plants; suitable for splitting pigs and cattle. EFA SB 295 ES, EFA SB 295 E and EFA SB 295 EL The splitting saws are used in an extended version in medium-sized plants; suitable for splitting pigs, heifers, cows, bullocks and calves. -
Page 6: Claims For Defects, Liability, Warranty
The customer/operating company is solely responsible for suitable protective measures (e.g. extraction devices, respiratory protection, protective suits, etc.) and company directives. If the EFA band saw is not used as intended or is modified without the approval of Schmid & Wezel GmbH, persons could be injured and the machine damaged. - Page 7 EFA band saws Operating instructions Limitation of liability All technical information, data and instructions for the operation of the machine contained in the operating instructions are up to date at the time of delivery. They are provided to the best of the manufacturer's knowledge, taking into account previous experience and knowledge.
-
Page 8: Safety
EFA band saws Operating instructions Safety Everyone who is involved in the installation, start-up, operation, set-up, equipping and maintenance of the machine in the operating company must have read and understood the operating instructions, in particular the "Safety" chapter. Safe operation of the machine is only guaranteed if: ... -
Page 9: Other Safety Signs
EFA band saws Operating instructions 2.1.1 Other safety signs Symbol Meaning Mark of conformity! The machine complies with the applicable regulations of the EC Machinery Directive. Recyclable materials! Ensure that the materials are recycled properly! 2.1.2 Warning signs Warnings and symbols used in the operating instructions and documentation are intended to help you to recognise and assess the dangers more easily. -
Page 10: Prohibition Sign
Ensure that your workplace has a correct, ergonomic set-up and make sure that you are standing securely. Only use original EFA saw bands. Follow the instructions listed under Saw band change. See also section 7.1 Saw band change. ... -
Page 11: Technical Description
EFA band saws Operating instructions Technical description Tab. 3.1 Technical data Description EFA band saws SB 287 E / EM SB 288 E SB 295 ES SB 295 E SB 295 EL SB 327 E Operating voltage Frequency 50 / 60... - Page 12 EFA band saws Operating instructions Tab. 3.2 – Electrical data EFA band saws Operating voltage Frequency Amperage Machine no. (Hz) 33,0 110890915 110890918 110890935 33,0 110890916 EFA SB 287 (from 110890919 2021.01) 110890936 33,0 110890920 110890925 33.0 110890915 110890918 EFA SB 287 110890935 33.0...
- Page 13 EFA band saws Operating instructions Tab. 3.3 – EFA band saw overview EFA band saw Usage Application EFA SB 287 E EFA SB 287 EM The splitting saws are used in small plants with max. 100 animals per week; suitable for splitting pigs and cattle.
-
Page 14: Dimensions

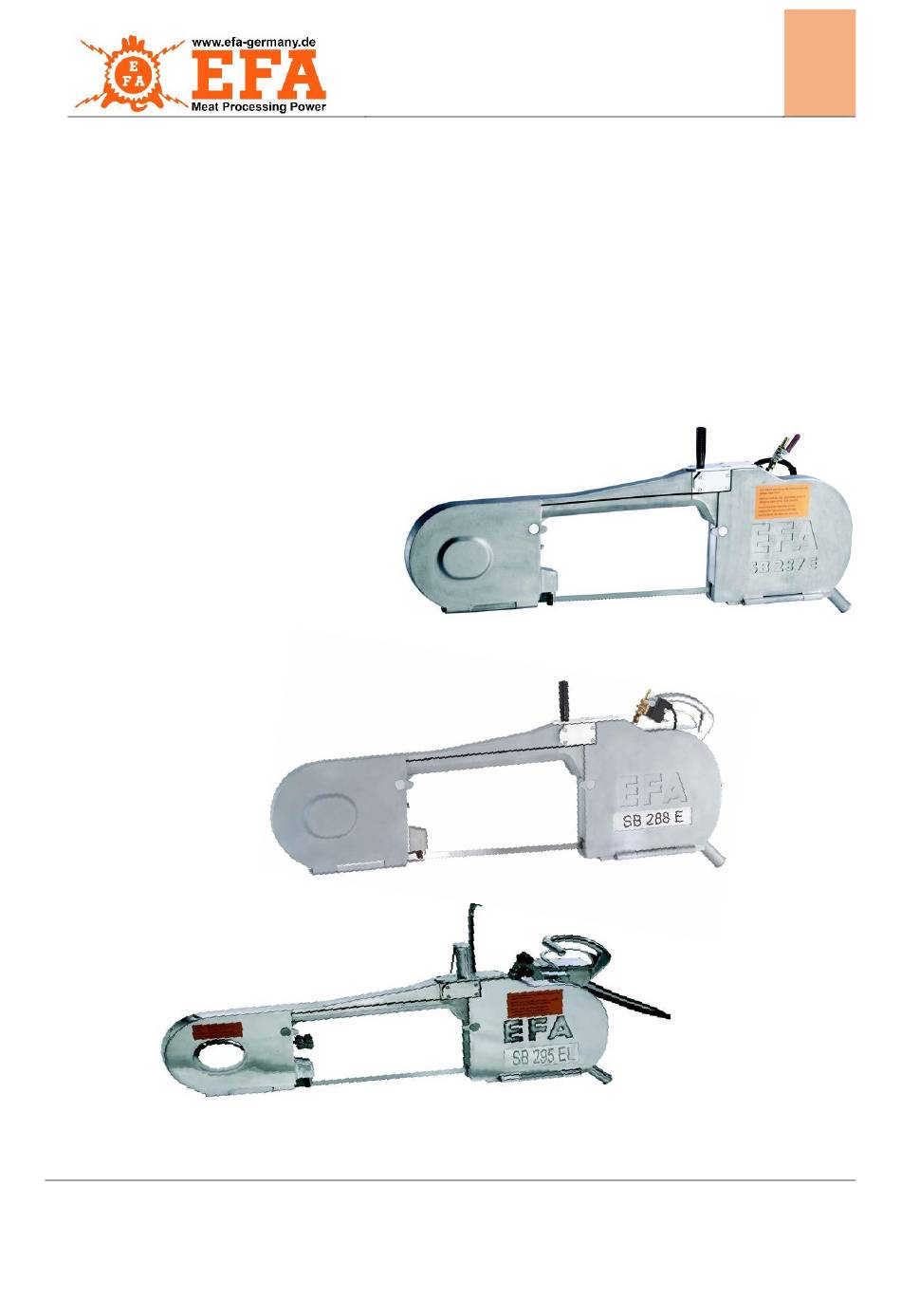

EFA band saws Operating instructions Dimensions The following figures give you an overview of the dimensions of the EFA band saws. EFA SB 287 E and EFA SB 287 EM EFA SB 288 E EFA SB 295 ES Rev.02 – 03.2021... - Page 15 EFA band saws Operating instructions EFA SB 295 E EFA SB 295 EL EFA SB 327 E Rev.02 – 03.2021 13 of 28...
-
Page 16: Nameplate
EFA band saws Operating instructions Nameplate The nameplate is attached to the machine and contains information on the machine performance. The following figure shows an example of the nameplate for the EFA machines. Year of production Machine designation Part number Serial number Rev.02 –... -
Page 17: Transport And Storage
EFA band saws Operating instructions Transport and storage The machine has been tested and carefully checked in our factory before shipment. The test ensures that the machine is working properly. Despite all care taken, there is a possibility that the machine could be damaged during transport. -
Page 18: Connection And Start-Up
EFA band saws Operating instructions Connection and start-up Initial start-up Caution! Voltage! Caution! Tripping hazard! Installation work is only allowed We recommend that the lines are led away to be carried out by authorised upwards. specialist personnel. Lines that run along the floor can be... -
Page 19: Adjustment Of The Suspension (Efa Sb 327 E)
A cold water connection is available. The saw band cooling/water rinsing is controlled by a manual valve. EFA SB 288 E and EFA SB 287 EM A cold water connection is available. The saw band cooling/water rinsing is controlled via a magnetic valve, directly with the motor circuit. -
Page 20: Handling
If one switch is released during operation, both switches must be released again and operated simultaneously. EFA SB 287 E and EFA SB 288 E – see Fig. 6.2 – The machines are equipped with a switching handle (C) and a guide handle (D) (one-hand control). -
Page 21: Switching Off
Remove from the piece of meat while running and then switch off at the operating lever. See also section 6.1 Switch operation. 6.2.2 Operational safety For safety reasons, EFA band saws must be held with two handles. Never work one-handed. Do not carry the saw by the switching handle, it could start unintentionally. -
Page 22: Assembly
Saw band change Danger! Never reach into the cutting edge area of the running saw band, otherwise you could cut off limbs! Important! Only use genuine EFA saw bands! Lever D: top = working position bottom = guide released for changing saw band The band saws have a switch-on safety device, i.e. - Page 23 EFA band saws Operating instructions The saw band guides include the following parts, see Fig. 7.2 Saw band guide. Carbide plate (a) – Support of the sawing pressure 2 carbide rods (b) – Deflection and guidance of the saw band ...
-
Page 24: Cleaning
Observe the safety and hygiene requirements! Daily cleaning after completion of the slaughtering Trouble-free continuous operation can only be guaranteed if the EFA band saw is kept perfectly and hygienically clean at all times. Also observe the safety instructions in the product data sheets of the cleaning agents. -
Page 25: Maintenance And Repair
Only use genuine spare parts or spare parts recommended by Schmid & Wezel GmbH Maschinenfabrik. Lubrication After each cleaning, lightly oil the saw band with acid-free EFA special oil. Guide Maintain the guide with particular care. In case of wear, readjust in good time or replace immediately. -
Page 26: Repair By Customer Service
The EFA Service department of Schmid & Wezel GmbH is at your disposal for repairs. If your equipment needs to be repaired, please contact the nearest authorised service centre or our head office. -
Page 27: 10 Waste Disposal - Recycling
EFA band saws Operating instructions 10 Waste disposal – recycling The machine must be disposed of in accordance with the valid legal regulations of the respective countries. 10.1 Disassembly and disposal Old and used machines contain reusable materials that can be recycled. - Page 28 EFA band saws Operating instructions Schmid & Wezel GmbH Maschinenfabrik Maybachstrasse 2 75433 Maulbronn / Germany +49 7043 1020 +49 7043 10278 ＠ efa-verkauf@efa-germany.de Internet: http://www.efa-germany.de Rev.02 – 03.2021 26 of 28...
