Xerox FreeFlow Print Server for Color 560/570 Print Server Installation
2.0.0 Installation

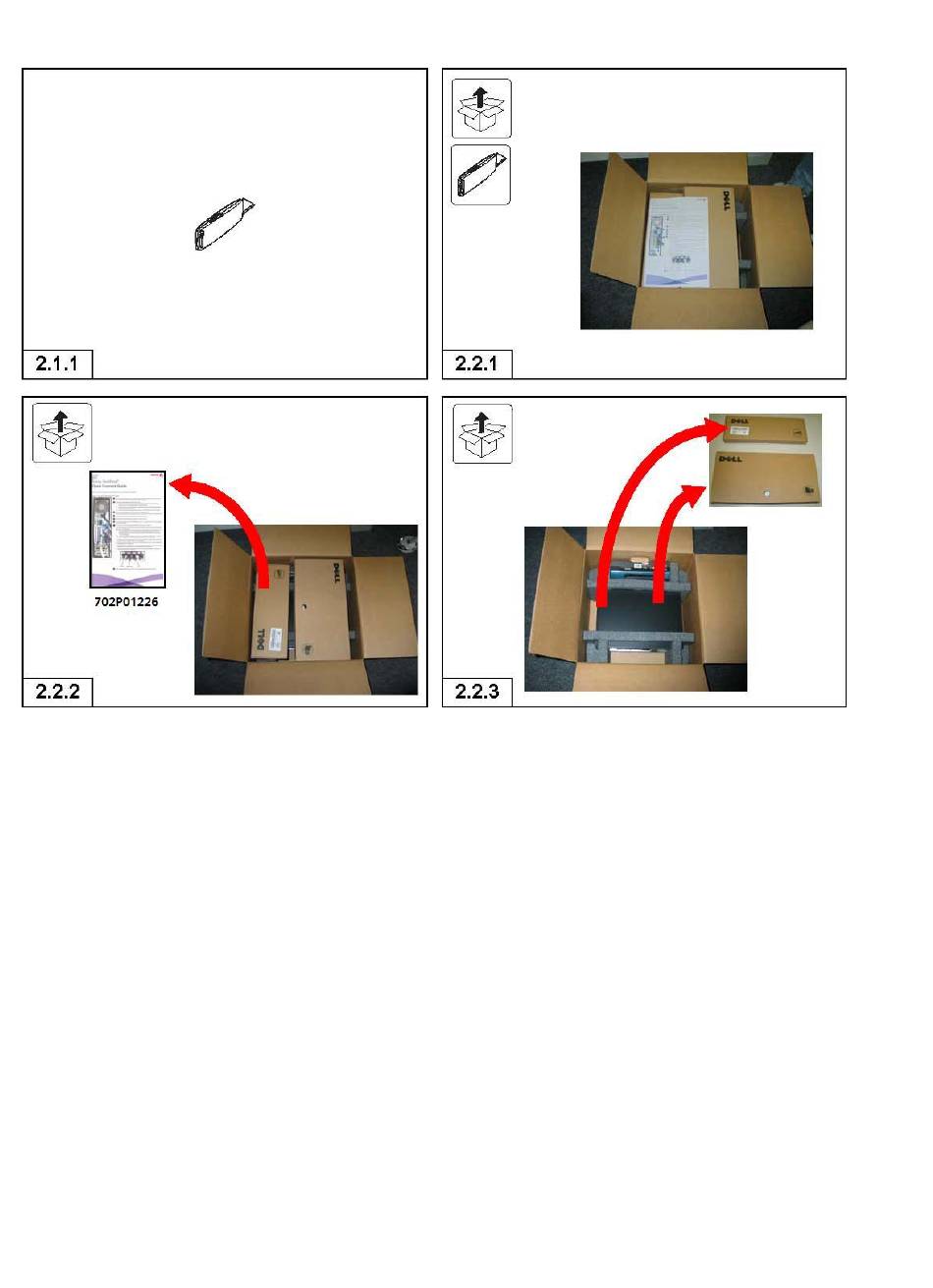

2.1.0 Tools and Materials to Assemble the Xerox FreeFlow Server

2.1.1 Tools required to install the Xerox FreeFlow Print Server are
shown.
2.2.0 Assembling the Xerox FreeFlow Print Server
2.2.1 Retrieve and open the Xerox FreeFlow Print Server box.
2.2.2 Remove the Xerox Freeflow Quick Connect Guide
(702P01226) from the box.
2.2.3 Remove the smaller flat box containing the keyboard, and the
larger flat box containing the documentation, mouse, and cables.
2.2.4 Remove the box containing the switch from the side foam
pocket inside the box.
2.2.5 Lift the Color 560/570 Print Server from the box.
2-2 Carrier Procedure Manual
