Xerox FreeFlow Server Carrier Procedures Manual page 15

Installation Xerox FreeFlow Print Server for Color 560/570 Print Server

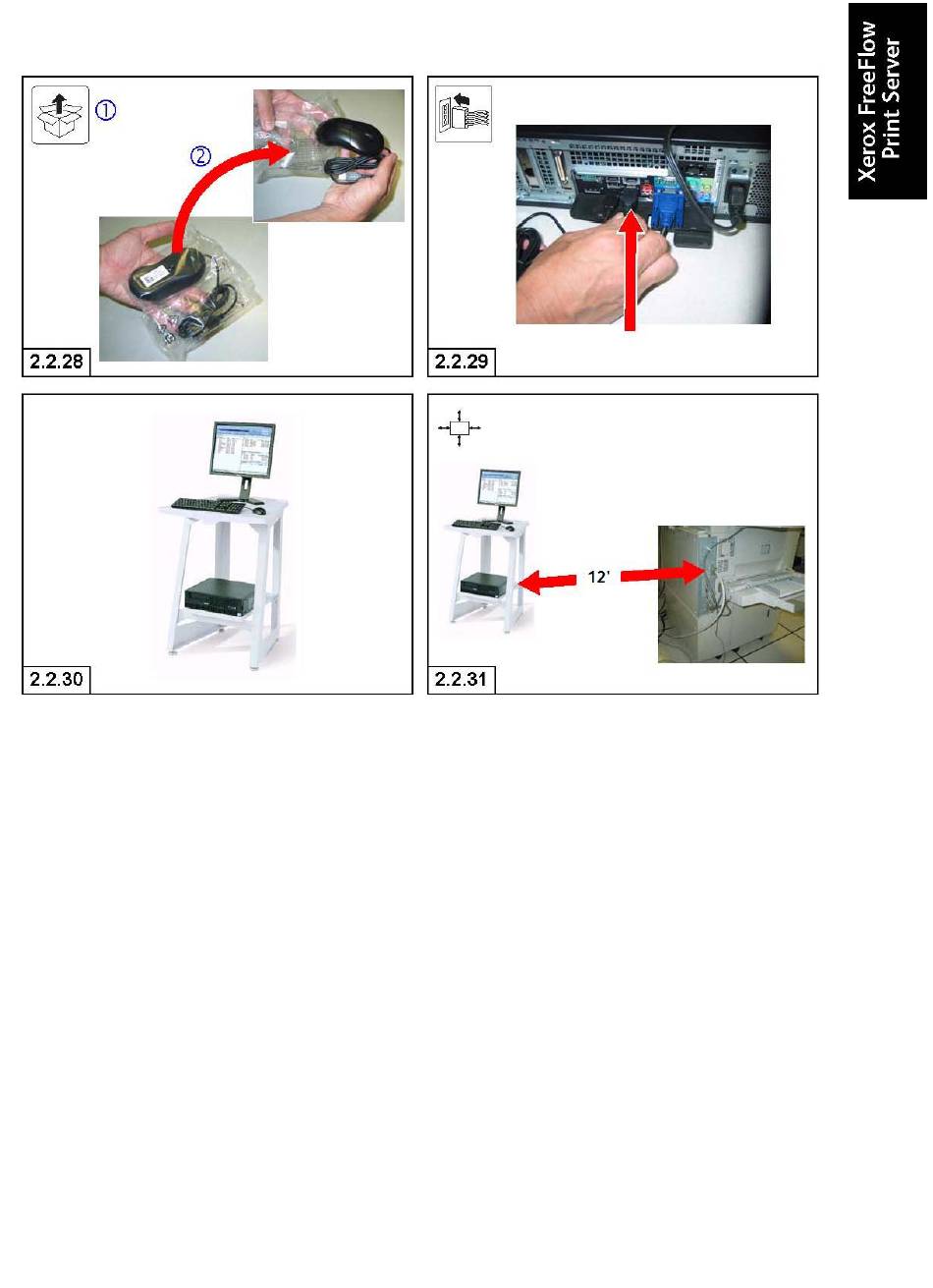

2.2.28 Remove the plastic bag containing the mouse from the
①
larger flat box packed with the Xerox FreeFlow Print Server. Then,
②
remove the mouse from the plastic bag.
2.2.29 Plug the mouse in to an open USB jack on the back of the
Xerox FreeFlow Print Server.
2.2.30 Place mouse and keyboard on top of stand, with monitor.
2.2.31 Position the stand near the rear left corner of the print engine.
The IOT Interface cable is 16' in length, so the stand must be placed
no more than about 12' from the IOT.
Carrier Procedure Manual 2-9
