Xerox FreeFlow Server Carrier Procedures Manual page 21

For color 560/570 printer

Hide thumbs Also See for FreeFlow Server:

Installation

Xerox FreeFlow Print Server for Color 560/570 Print Server

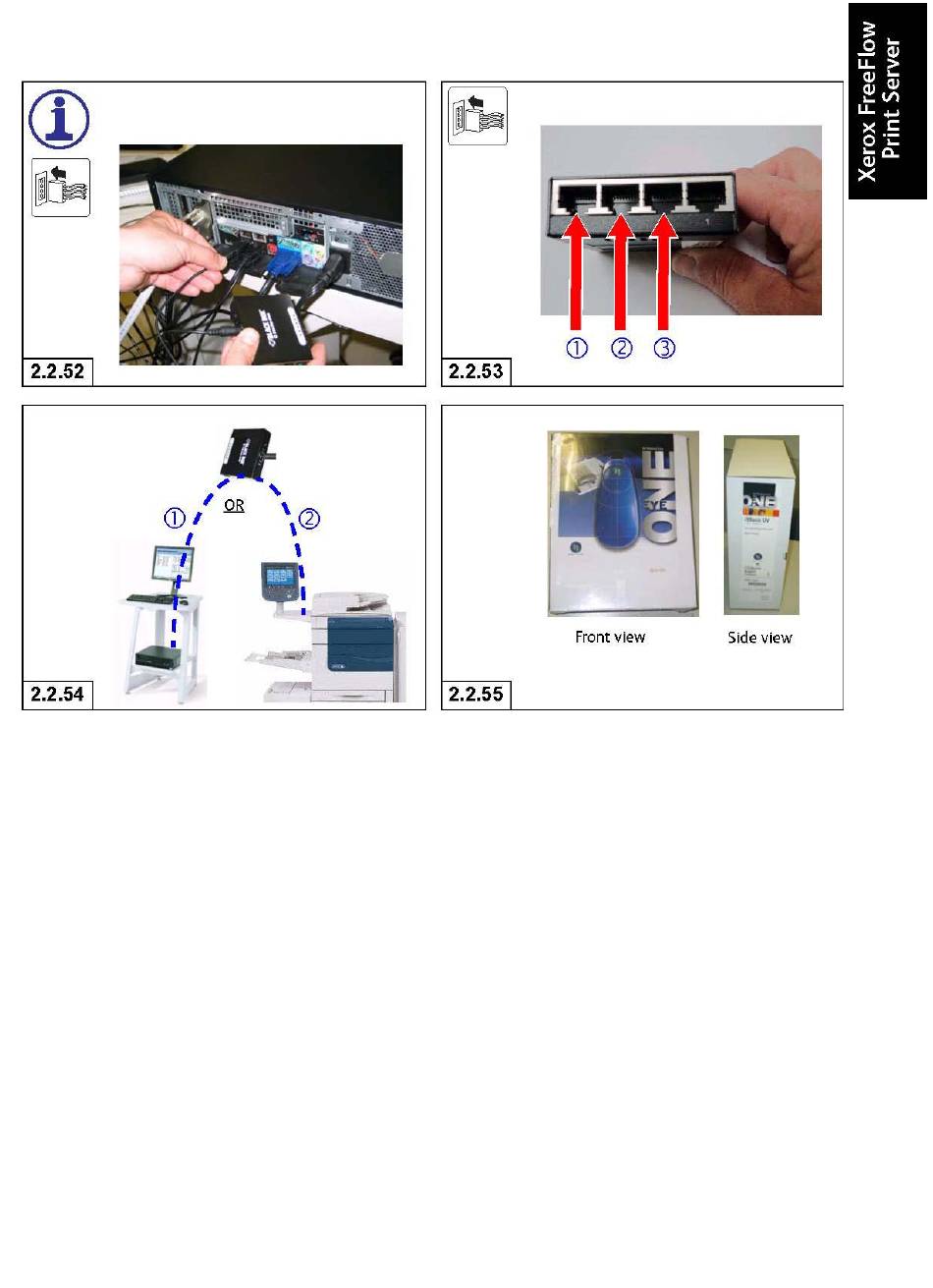

2.2.52 Plug the Black Box switch USB power cable into the USB port

on the back of the Xerox FreeFlow Print Server

2.2.53 Plug the Ethernet cables from

the network drop,

the

①

②

FreeFlow Print Server, and

the Processor into the Black Box

③

switch.

2.2.54 Use the Velcro strips to attach the switch unit to the either

①

the FreeFlow Print Server or

the Processor.

②

2.2.55 Place color spectrophotometer on the stand for the Customer

to unpack and customize.

Carrier Procedure Manual

2-15
