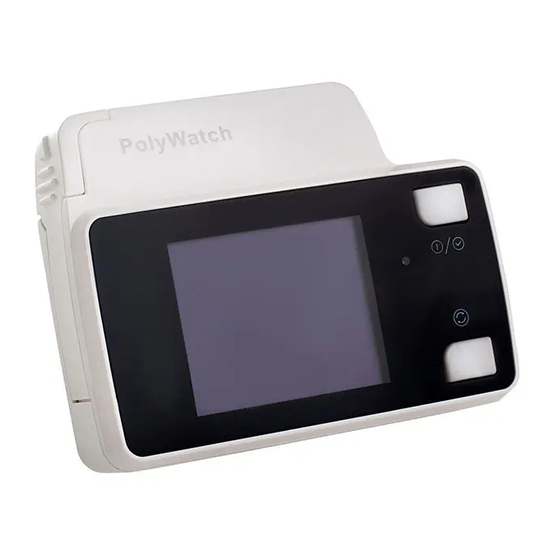

YH-600B Pro Quick Operation Manual
1.
Button Function
On-Off / OK Button: Turn on/off the device, confirm adjustment.
Shift Button: Switch interfaces and options.
If there is no "Exit" on menu page, press and hold these two buttons
+
together to exit menu page.
2.
Setting up the Device
(1)
Wear main device on the wrist (preferentially on left wrist) like a watch, and fasten
the wrist belt and move the main device to a comfortable position.
(2)
Wear and fasten the respiration effort belt around the body. Insert the effort lead
cable into the holes on the respiration kit, and hang the respiration kit on the
respiration effort belt.
(3)
Make the two small open tubes on airflow cannula point towards your nostrils. Fit
the loop around your ears and then back around your neck, without pulling over
your head. Draw the cannula to a comfortable position under your chin, place
adhesive tape as indicated to help secure the cannula.
YH-600B Pro Quick Operation Manual V1.01
1 / 4
Advertisement
Table of Contents
Related Manuals for BMC YH-600B Pro
Summary of Contents for BMC YH-600B Pro
- Page 1 YH-600B Pro Quick Operation Manual V1.01 YH-600B Pro Quick Operation Manual Button Function On-Off / OK Button: Turn on/off the device, confirm adjustment. Shift Button: Switch interfaces and options. If there is no “Exit” on menu page, press and hold these two buttons together to exit menu page.
- Page 2 YH-600B Pro Quick Operation Manual V1.01 Fit the airflow cannula to the connections of the respiration kit by turning it clockwise, then insert the data connector of the respiration kit into the Flow / COM port on the right side of the device.
- Page 3 YH-600B Pro Quick Operation Manual V1.01 Recording Power device If each accessory is connected well, the “Record” interface can be accessed. The time pressing holding On-Off Button notification (0:00:00) in the upper left corner of the “Record” interface flickers. Press and hold...
- Page 4 YH-600B Pro Quick Operation Manual V1.01 Data Analysis From the “Data” interface, users can view each recording data and have a look of SAHS severity as below: Operation in “Tools” Interface From the “Tools” interface, data can be transferred via Bluetooth and erased manually. You can also choose different languages in this inerface.
