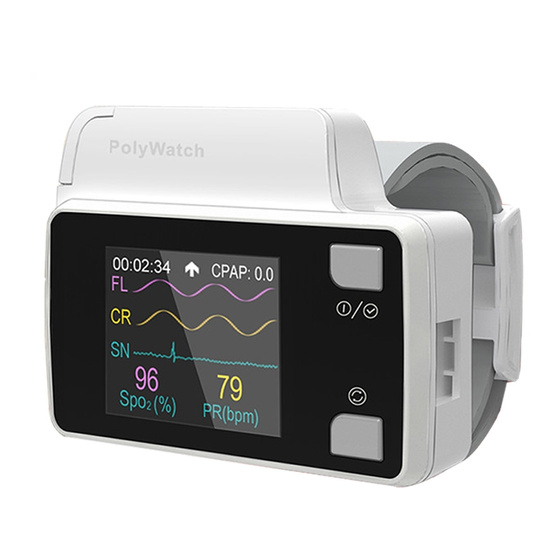

YH-600A Pro Quick Operation Manual
1.
Button Function
On-Off / OK Button: Turn on/off the device, confirm adjustment.
Shift Button: Switch interfaces and options.
If there is no "Exit" on menu page, press and hold these two buttons
+
together to exit menu page.
2.
Setting up the Device
(1)
Wear main device on the wrist (preferentially on left wrist) like a watch, and fasten
the wrist belt and move the main device to a comfortable position.
(2)
Make the two small open tubes on airflow cannula point towards your nostrils. Fit
the loop around your ears and then back around your neck, without pulling over
your head. Draw the cannula to a comfortable position under your chin, place
adhesive tape as indicated to help secure the cannula.
(3)
Fit the airflow cannula to the connection of the airflow kit by turning it clockwise, and
insert the data connector of the airflow kit into the Flow / COM port on the right side
of the device.
YH-600A Pro Quick Operation Manual V1.01
1 / 4
Advertisement
Table of Contents
Related Manuals for BMC YH-600A Pro
Summary of Contents for BMC YH-600A Pro
- Page 1 YH-600A Pro Quick Operation Manual V1.01 YH-600A Pro Quick Operation Manual Button Function On-Off / OK Button: Turn on/off the device, confirm adjustment. Shift Button: Switch interfaces and options. If there is no “Exit” on menu page, press and hold these two buttons together to exit menu page.
- Page 2 YH-600A Pro Quick Operation Manual V1.01 Insert the index finger into the pulse oximeter sensor. The finger must reach the end of the sensor, but don’t over the end of the sensor. Insert the data connector of the pulse oximeter sensor into the SpO port on the top of the main device.
- Page 3 YH-600A Pro Quick Operation Manual V1.01 Recording Power device If each accessory is connected well, the “Record” interface can be accessed. The time pressing holding On-Off Button notification (0:00:00) in the upper left corner of the “Record” interface flickers. Press and hold...
- Page 4 YH-600A Pro Quick Operation Manual V1.01 Data Analysis From the “Data” interface, users can view each recording data and have a look of SAHS severity as below: Operation in “Tools” Interface From the “Tools” interface, data can be transferred via Bluetooth and erased manually. You can also choose different languages in this inerface.
