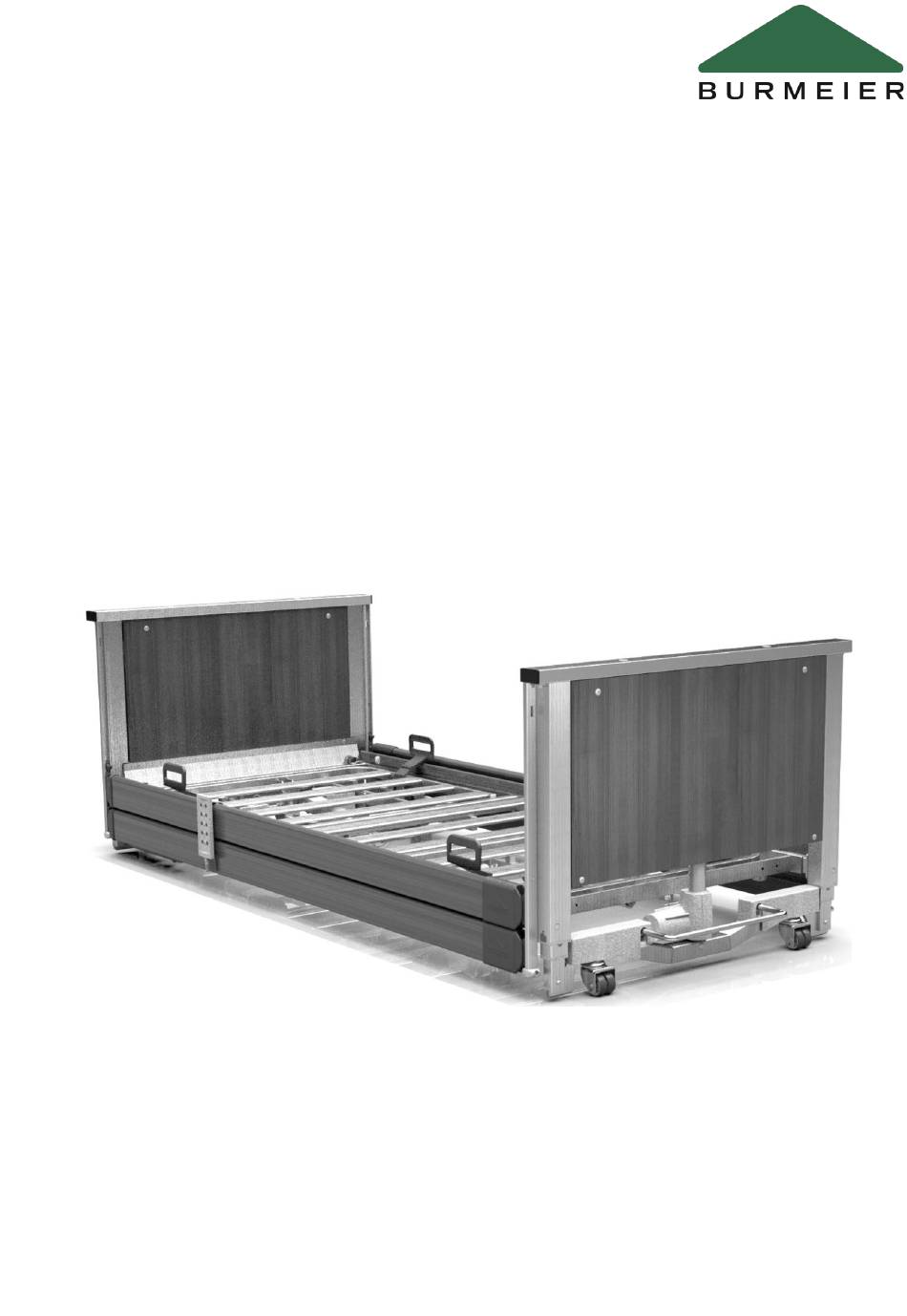

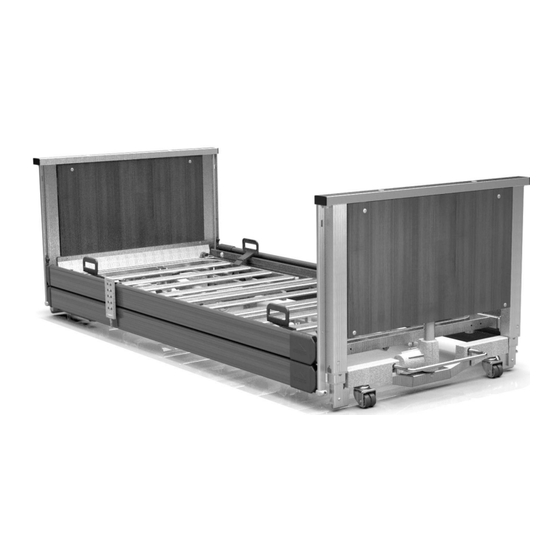

- Page 1 Instruction Manual Lenus Care Bed Lenus Care Bed Last updated: 20/01/2021 288242_V1...
- Page 2 Instruction Manual for Lenus Care Bed In this instruction manual, numbers and letters that appear in round brackets () and bold type refer to the care bed’s operating devices as shown in this and the following images. Foot section chassis...
-
Page 3: Table Of Contents
Instruction Manual for Lenus Care Bed Contents FOREWORD ........................6 GENERAL INFORMATION ....................7 2.1 Definition of the groups of persons involved ........... 8 2.2 Safety information ................... 9 Explanation of the safety symbols used ..........9 Safety information for the operator ............10 Safety information for users and residents ........... - Page 4 Instruction Manual for Lenus Care Bed Under bed light* ................... 46 Rechargeable battery* ................. 47 Patient lifting pole* ................48 Grab handle* (triangular grab handle) ..........49 Integrated bed extension* ..............50 4.6 Operating the safety sides ................52 Special safety information for safety sides ........... 53 Raising the safety sides ...............
- Page 5 Instruction Manual for Lenus Care Bed 10 DISMANTLING THE BED ....................94 11 DISPOSAL INSTRUCTIONS ................... 95 12 DECLARATION OF CONFORMITY ................96 Page 5...
-
Page 6: Foreword
1 Foreword Dear Customer, Burmeier has built this bed to give you the best possible help with the challenges posed by nursing and caregiving. We passionately pursue the goal of developing products that are durable and of a high-quality. Our products should make residents feel as safe and comfortable as possible during their stay in bed and also lighten the workload of care staff and caring relatives. -
Page 7: General Information
• This instruction manual contains safety information which must be followed! All users working on and with the Lenus bed model must be familiar with the contents of this instruction manual and follow the safety information provided before operating the bed for the first time. -
Page 8: Definition Of The Groups Of Persons Involved
Operator The operator (e.g. nursing home operators) are all natural and legal persons with property rights to the Lenus care bed. The operator is responsible for the safe operation of this medical device. The operator can also pass on this responsibility to service providers who work on his behalf (in Germany, it could be that the health insurance operator passes responsibility to the medical supply store, for example). -
Page 9: Safety Information
Instruction Manual for Lenus Care Bed 2.2 S AFETY INFORMATION At the time of leaving the factory, this bed represents state-of-the-art technology and has been tested by an independent testing institute. The most important objective of the safety information is to prevent personal injuries. Property damage will also be prevented. -
Page 10: Safety Information For The Operator
Instruction Manual for Lenus Care Bed 2.2.2 Safety information for the operator • Please observe your obligations in accordance with the Medical Devices Operator Ordinance (Medizinprodukte-Betreiberverordnung: MPBetreibV), to ensure that this medical product is always operated safely and with no risk of danger to residents, users or third parties. -
Page 11: Safety Information For Users And Residents
Instruction Manual for Lenus Care Bed 2.2.3 Safety information for users and residents • Ensure that the operator/your medical supply store instructs you in the safe operation of this bed. • Ask a healthcare professional for advice if you are uncertain about a possible application of safety sides or about the necessity of activating the locking functions of the electrical adjustments. - Page 12 Instruction Manual for Lenus Care Bed • Adjust the mattress base to its lowest position before leaving the resident unattended. In this way, you considerably reduce the risk of injury to the resident due to a fall when getting in or out of bed.
-
Page 13: Product Description
Instruction Manual for Lenus Care Bed 2.3 P RODUCT DESCRIPTION 2.3.1 Intended use • This bed is used as an aid in the diagnosis, treatment, alleviation and monitoring of illnesses or for compensating for injuries or disabilities. For detailed instructions for use, see chapter 9.7 •... -
Page 14: Contraindications
Instruction Manual for Lenus Care Bed Example: Weight of accessories Maximum permitted (incl. mattress) weight of resident 10 kg 215 kg 40 kg 185 kg • This bed may be operated only by persons who have received instruction in its safe operation. -
Page 15: Electric Drive System
Instruction Manual for Lenus Care Bed 2.3.6 Electric drive system The bed’s electrical drive system is first-error-secure, flame-resistant (UL94V-0) and consists of: • Electricity supply via: o 230 V mains cable connection (optional). In this case, the 230 V mains supply is transformed to 24 V by the control unit. -
Page 16: Special Mechanical Features (Optional Equipment)
Instruction Manual for Lenus Care Bed 2.3.8 Special mechanical features (optional equipment) – Removable comfort mattress base comprises 50 individual spring elements. These elements are designed to mould themselves closely to the shape of the body and help to ventilate the mattress. Their flexibility also ensures that the pressure is optimally distributed. -
Page 17: Assembly And Putting Into Service
Instruction Manual for Lenus Care Bed 3 Assembly and putting into service This chapter is directed at professionals employed by the operator or medical supply retailer. 3.1 T OOLS An assembly key is supplied. To ensure all bed components are securely fixed, all the screws of the bed must be tightened using the supplied assembly key. -
Page 18: Location Requirements
• Before using the bed on parquet flooring, check whether the castors will leave stains on the parquet varnish. The bed can be used on tiles, carpet, linoleum or laminate flooring without causing any damage. BURMEIER is not liable for any floor damage that may be caused by day-to-day operation. -
Page 19: Assembling The Chassis
Instruction Manual for Lenus Care Bed 3.5 A SSEMBLING THE CHASSIS Danger due to Trendelenburg position Failure to comply could result in serious injury to the person lying in bed. The two chassis [1] and [9] should not be confused! A mix-up will lead to an unwanted Trendelenburg position instead of a reverse-Trendelenburg position. - Page 20 Instruction Manual for Lenus Care Bed Page 20...
-
Page 21: Fitting The Side Panels
Instruction Manual for Lenus Care Bed 3.6 F ITTING THE SIDE PANELS The side panels are fixed to the longitudinal tube of the mattress base using screws. Proceed as follows: Position the side panel, as shown, along the longitudinal tube of the mattress base 1 . -
Page 22: Attaching The Safety Sides
Instruction Manual for Lenus Care Bed 3.7 A TTACHING THE SAFETY SIDES The bed is equipped with safety sides to protect the resident from accidentally falling out of bed. The safety sides are made of bars with plastic end caps and are attached to the bed with a simple click-on system. - Page 23 Instruction Manual for Lenus Care Bed Insert the other end of the bar into the lower holding device at the foot end of the bed. − The bar must be securely held in place by the release button b .
-
Page 24: Electrical Connection
Instruction Manual for Lenus Care Bed 3.8 E LECTRICAL CONNECTION Before you connect the cables, remove the packaging material from all the cables. The 4 drive motors are supplied with electricity via the power adapter/power plug. All the drive motor plugs are connected to the control unit during production and are secured with a cover to prevent them from being unintentionally unplugged. - Page 25 Instruction Manual for Lenus Care Bed Proceed as follows: Insert the angled plug of the thigh rest motor into the connection socket on the thigh rest motor as far as it will go and secure the plug in place with the pull-out prevention device.
- Page 26 Instruction Manual for Lenus Care Bed If a 230-V cable is used: Screw the 230-V cable into the smaller opening b of the strain relief plate, as shown. Attention: When laying the cable, follow the safety instructions in chapter 3.9.
-
Page 27: Connecting The Power Adapter/Power Plug
Instruction Manual for Lenus Care Bed 3.9 C ONNECTING THE POWER ADAPTER POWER PLUG Position the bed so as to allow easy access to the power plug at all times so that the bed can be disconnected from the mains, if necessary. - Page 28 Instruction Manual for Lenus Care Bed Damage to the power adapter/power plug Failure to follow this information can result in irreparable defects in the power adapter/power plug and a short-circuit in the mains socket. Power adapter: • The mains socket you wish to use for the power adapter must NOT be under the bed.
-
Page 29: Putting Into Service
Instruction Manual for Lenus Care Bed 3.10 P UTTING INTO SERVICE It is only necessary to take an electrical measurement before putting the bed into service for the first time if the bed has a 230-volt supply cable. In the case of beds with... -
Page 30: Checklist: Inspection By The User
Instruction Manual for Lenus Care Bed 3.10.1 Checklist: Inspection by the user Check Description of defect WHAT ? HOW ? Visual inspection of the electrical components Handset Damage? Handset cable Damage, cables routed away from moving parts? Power adapter Visual inspection of the mechanical components... -
Page 31: Operation
Instruction Manual for Lenus Care Bed 4 Operation 4.1 T IPS ON USING THE BED SAFELY IN A DOMESTIC SETTING Please use the following table to help identify and avoid any unfavourable conditions of use. Unfavourable conditions of use Avoid by... -
Page 32: Moving And Braking The Bed
Instruction Manual for Lenus Care Bed 4.2 M OVING AND BRAKING THE BED The bed is equipped with four lockable castors, which can be braked in pairs (at the head end and foot end of the bed) (10). The bed can be moved within the room even when the bed is occupied. -
Page 33: Individual Axle Braking
Instruction Manual for Lenus Care Bed 4.2.1 Individual axle braking Brake bar - operated from the foot end This operates the foot-end castors. To move the bed: Lift the brake bar with your foot. To brake the bed: Press the brake bar down with your foot. -
Page 34: Mechanical Adjustment Options
Instruction Manual for Lenus Care Bed 4.3 M ECHANICAL ADJUSTMENT OPTIONS 4.3.1 Lower leg rest (LR) The lower leg rest can be raised and lowered manually when the thigh rest is raised It is possible to adjust the bed to an orthopaedic (stepped bed) position or so that the lower leg rest is sloping downwards. -
Page 35: Manual Cpr Release Of The Backrest
Instruction Manual for Lenus Care Bed Lowering the lower leg rest using the handset If the thigh rest is lowered using the handset, the lower leg rest is automatically lowered as well. Raising the lower leg rest using the handset If the thigh rest is raised using the handset, the lower leg rest is automatically moved as well and locks into place in several intermediate positions. - Page 36 Instruction Manual for Lenus Care Bed • The motor is now disconnected from the backrest. • Put the motor down on the bed frame. • After the second person has left the danger zone, the first person (with the help of the second person) lowers the backrest carefully.
-
Page 37: Electrical Adjustment Options
Instruction Manual for Lenus Care Bed 4.4 E LECTRICAL ADJUSTMENT OPTIONS 4.4.1 Special safety information on the electrical drive system • When making any adjustments to the position of the bed, always ensure that there are no limbs belonging to residents, users, other persons, and especially playing children, that could be trapped underneath the rests or the bed frame. - Page 38 Instruction Manual for Lenus Care Bed − Motorised adjustments are only possible if the bed is properly connected to the mains supply. If the load is too high, an electronic overload switch is activated and the − control unit is automatically switched off. When the overload has been removed, the drive system can be reactivated by pressing a button on the handset.
- Page 39 Instruction Manual for Lenus Care Bed Risk of injury due to safety side guides and safety sides. When adjusting the bed to its lowest position (3 cm above the floor), please note the following: • Safety side guides: if you adjust the bed to its lowest position while a foot is directly below the safety side guides 1 , feet and limbs could be crushed and injured.
-
Page 40: Handset
Instruction Manual for Lenus Care Bed 4.4.2 Handset The electrical bed functions can be activated by the resident or the user by using the handset. For safety reasons, the handset is equipped with a locking function. Depending on the clinical condition of the patient, the user must lock handset adjustments when deemed necessary by the supervising doctor (chapter 4.4.4). - Page 41 Instruction Manual for Lenus Care Bed 4.4.2.1 Adjustment functions of the handset Auto contour Raise: The backrest and thigh rest are raised at the same time. Lower: The thigh rest follows the backrest after a five second delay. This prevents the resident from sliding towards the foot end of the bed.
- Page 42 Instruction Manual for Lenus Care Bed Sleep position If this button is kept pressed, the mattress base is adjusted to the following positions in turn in the following order: 1. To a horizontal position 2. The backrest is lowered immediately – the thigh rest follows after a delay of 9 seconds 3.
-
Page 43: Handset For Trendelenburg/Reverse-Trendelenburg Position (Optional Equipment)
Instruction Manual for Lenus Care Bed 4.4.3 Handset for Trendelenburg/reverse-Trendelenburg position (optional equipment) The additional handset can be used for medical purposes when the bed is used for long-term care. 4.4.3.1 Adjustment functions Pressing this button will move the mattress base into the reverse-Trendelenburg position. -
Page 44: Handset Locking Functions
Instruction Manual for Lenus Care Bed 4.4.4 Handset locking functions Only users are authorised to operate the locking function! If the clinical condition of the resident is so critical that a particular adjustment using the handset places him/her at risk, then the user must lock this adjustment function immediately. -
Page 45: Attachments And Optional Features
Instruction Manual for Lenus Care Bed 4.5 A TTACHMENTS AND OPTIONAL FEATURES Optional bed features are indicated by an asterisk (*) . 4.5.1 LED reading lamp* The bed can be fitted with reading lamp, if desired. The reading lamp can be supplied in... -
Page 46: Under Bed Light
Instruction Manual for Lenus Care Bed 4.5.2 Under bed light* The energy-saving, long-lasting LED under bed light provides safe orientation during the night and can reduce the risk of falls. The light is sufficiently subtle, however, to not disturb the resident of the adjacent bed. -
Page 47: Rechargeable Battery
(UP + DOWN) should always be possible. Otherwise, the batteries must be replaced. - In this case, contact Burmeier’s customer service. We will replace the rechargeable batteries and dispose of the old batteries properly (see chapter 6.4 for the address). -
Page 48: Patient Lifting Pole
Instruction Manual for Lenus Care Bed 4.5.4 Patient lifting pole* The two corners of the mattress base frame at the head end E of the bed are each fitted with a round sleeve with a recess at the top. These sleeves are the location sleeves for the patient lifting pole. -
Page 49: Grab Handle* (Triangular Grab Handle)
Instruction Manual for Lenus Care Bed 4.5.5 Grab handle* (triangular grab handle) A triangular grab handle can be attached to the patient lifting pole (accessory, see chapter 8). The resident can use this triangular grab handle to sit up and readjust his/her position more easily. -
Page 50: Integrated Bed Extension
Instruction Manual for Lenus Care Bed 4.5.6 Integrated bed extension* This bed is equipped with an integrated bed extension at the foot end of the bed. This makes it possible to extend the length of the mattress base by approximately 20 cm. - Page 51 Instruction Manual for Lenus Care Bed 4.5.6.2 Shortening the bed Proceed in reverse order to the attachment process. Page 51...
-
Page 52: Operating The Safety Sides
Instruction Manual for Lenus Care Bed 4.6 O PERATING THE SAFETY SIDES The bed has safety sides to protect the resident from falling out of bed. The bed is supplied as standard with full-length safety sides (2) on both sides of the bed. -
Page 53: Special Safety Information For Safety Sides
Instruction Manual for Lenus Care Bed 4.6.1 Special safety information for safety sides Safety sides protect the resident from unintentionally falling out of bed. They are not intended as a device to prevent the resident from intentionally leaving the bed. - Page 54 Instruction Manual for Lenus Care Bed The resident’s risk of falling is less severe: o the smaller and more settled the resident is o the softer the mattress is (the resident sinks deeper into the mattress) • Lock the operating functions for the resident on the handset if the resident is exposed to an increased risk of entrapment during backrest and thigh rest adjustments when the safety sides are raised.
-
Page 55: Raising The Safety Sides
Instruction Manual for Lenus Care Bed 4.6.2 Raising the safety sides 1. Raise each of the safety side bars, one after the other, one end at a time, until they click audibly into the uppermost position at both ends. 2. Push and pull the bars to check that they have been locked in place by the release buttons. - Page 56 Instruction Manual for Lenus Care Bed Lower the safety side bars slowly. Repeat steps 2 and 3 at the other end of the bar. Page 56...
-
Page 57: Removing/Installing The Safety Sides
Instruction Manual for Lenus Care Bed 4.7 R EMOVING INSTALLING THE SAFETY SIDES The removal/installation of the safety sides is necessary if the integrated bed extension (optional equipment) is to be pulled out. To avoid any injuries, removal/installation work may be carried out only when the bed is unoccupied. -
Page 58: Comfort Mattress Base, 90 Cm Wide (Optional Equipment)
Instruction Manual for Lenus Care Bed 4.8 C , 90 OMFORT MATTRESS BASE CM WIDE OPTIONAL EQUIPMENT When ordered with a bed extension, 5 additional elements are supplied for the Comfort mattress base. Wings of the black elements face outwards 1 Turn the mounting clips 2 180°... -
Page 59: Inserting The Mattress
Instruction Manual for Lenus Care Bed 4.9 I NSERTING THE MATTRESS Place a suitable mattress on top of the mattress base. Please comply with the permissible dimensions and characteristics of the mattress (for mattress dimensions, 9.1). see chapters 4.6 and... -
Page 60: Cleaning And Disinfection
Instruction Manual for Lenus Care Bed 5 Cleaning and disinfection This bed is not suitable for machine washing or for cleaning in a decontamination unit. The bed is only suitable for manual cleaning and disinfection. To extend the bed's service life and preserve its operability, always follow the instructions given in this chapter. -
Page 61: Cleaning And Disinfection Plan
Instruction Manual for Lenus Care Bed 5.2 C LEANING AND DISINFECTION PLAN • Remove the bed linen and have it laundered. • Clean all surfaces, including the slatted frame and mattress base made of synthetic or metal sections, with a mild and environmentally friendly cleaning agent. -
Page 62: Instructing Users And Staff
Instruction Manual for Lenus Care Bed 5.3 I NSTRUCTING USERS AND STAFF In order to ensure that cleaning and disinfection are conducted properly, we recommend that users and staff are appropriately instructed. They should be instructed to observe the following points: •... -
Page 63: Cleaning And Disinfection Agents
Instruction Manual for Lenus Care Bed 5.4 C LEANING AND DISINFECTION AGENTS Pay attention to the following recommendations to ensure that the bed functions and usability are preserved as long as possible: • Do not use scouring agents, stainless steel cleaning agents, abrasive cleaning agents or scouring pads. -
Page 64: Handling Cleaning And Disinfection Agents
Instruction Manual for Lenus Care Bed The choice of cleaning agents and disinfectants available on the market may change from time to time. Burmeier therefore routinely tests the most commonly used materials for compatibility. The most up-to-date list of tested cleaning agents and disinfectants can be obtained on request. -
Page 65: Maintenance
Instruction Manual for Lenus Care Bed 6 Maintenance Legal principles Operators of medical beds in Europe are obliged, in accordance with the new Medical Device Regulation (EU) 2017/745 (MDR) and existing relevant national laws/regulations, e.g. in Germany currently the •... -
Page 66: By The User
Instruction Manual for Lenus Care Bed 6.1 B Y THE USER If damage or a malfunction is suspected, the bed must be withdrawn from service immediately and disconnected from the mains supply until the defective parts have been repaired or replaced! Contact the operator responsible if the defective parts need to be replaced or repaired. -
Page 67: By The Operator
Instruction Manual for Lenus Care Bed 6.2 B Y THE OPERATOR The operator of this care bed is obliged according to MPBetreibV (Medical Devices Operator Ordinance) Section 4 to conduct regular inspections after each renewed assembly, after each maintenance and during regular operation to... - Page 68 Instruction Manual for Lenus Care Bed Test cycles (230-volt system with mains cable) Visual inspection, electrical measurement Annually* and before putting the bed and functional check: into service for the first time Test cycles (24-volt system with power adapter) Visual and functional check:...
- Page 69 Instruction Manual for Lenus Care Bed Inspection Report following an Inspection of Electromedical Equipment according to DIN EN 62353 (VDE 0751-1): 2015-10 – Page 1 of 3 Customer / Medical facility / Practice: Address: Carried out: Repeat inspection Inspection prior to initial operation (reference value)
- Page 70 Instruction Manual for Lenus Care Bed If defective electrical housings are found and at the same time there are signs of spilled liquids/contamination that could affect the insulation Plug the mains cable/power adapter plug into the test socket of the measuring instrument.
- Page 71 Instruction Manual for Lenus Care Bed Inspection Report following an Inspection of Electromedical Equipment according to D IN EN 62353 (VDE 0751-1): 2015-10 – Page 2 of 3 OK Not Description III. Functional test of defect What? How? Functional check of the electrical components...
-
Page 72: Replacement Parts / Type Plate
Instruction Manual for Lenus Care Bed 6.3 R EPLACEMENT PARTS YPE PLATE In order to maintain operational safety and the right to claim under warranty, only original Burmeier replacement parts may be used! For quick and easy ordering of replacement parts, we require the item number, order number and serial number. -
Page 73: Service Address
Instruction Manual for Lenus Care Bed 6.4 S ERVICE ADDRESS To order replacement parts in Germany, and for any servicing requirements or other questions, please contact our customer service centre: Burmeier GmbH & Co. KG (A Stiegelmeyer-Group company) Pivitsheider Strasse 270 32791 Lage/Lippe Tel.: + 49 (0) 52 32 / 98 41- 0... -
Page 74: Replacement Of Electrical Components
• Before commencing any work, unplug the power adapter from the mains socket! • Any work and/or repairs to the electrical equipment may be carried out only by Burmeier’s customer service, the drive manufacturer or qualified and authorised electricians in compliance with all the relevant VDE and safety regulations! •... - Page 75 Instruction Manual for Lenus Care Bed Assignment of the “HB” socket: Depending on the existing additional electrical equipment, the following items can be connected here: • Handset only; handset with under bed light (UBL) • Via junction box MJB2: additional handset for setting Trendelenburg/reverse- Trendelenburg position •...
-
Page 76: Replacing The Handset
Instruction Manual for Lenus Care Bed 6.5.2 Replacing the handset • If possible, raise the mattress base to the maximum height, for ease of access. • Unplug the power adapter from the mains socket. • Track the handset cable to the connecting point on the MJB2 junction box: MJB2 •... -
Page 77: Replacing The Control Unit
Instruction Manual for Lenus Care Bed 6.5.3 Replacing the control unit • Unplug the power adapter from the mains socket. • Release the catches of the plug cover (on both sides). • Mark the plug positions to avoid switching them when they are re-connected (see chapter 6.5.1). - Page 78 Instruction Manual for Lenus Care Bed There must be no pauses longer than 6 seconds between the steps without pressing a key. The system will otherwise revert to the normal operating mode without completing the initialisation. How should this be done?
-
Page 79: Reset The Control Unit
Instruction Manual for Lenus Care Bed 6.5.5 RESET the control unit To be carried out in the following situations: • If a serious error was detected by the control unit and this has now been properly rectified but the control unit has locked out the affected functions for safety reasons. -
Page 80: Replacing The Motors
Replacing the lift motors is more complex and requires expert knowledge. In this case, contact Burmeier’s customer service. We will replace the motors and dispose of the old motors properly (see chapter 6.4 for the address). -
Page 81: Troubleshooting
Instruction Manual for Lenus Care Bed 7 Troubleshooting The following table provides a guide for rectifying common malfunctions. Should a malfunction occur that is not included in the table, inform your operator. Problem Possible causes Solution • The power adapter is not •... - Page 82 Instruction Manual for Lenus Care Bed Problem Possible causes Solution • Observe max. duty cycle: • Operation is not Control unit has shut down due possible despite After 2 min ON, 18 min OFF; to overheating • functioning power replace the control unit.
-
Page 83: Accessories
This will prevent any overloading of the fixing points. Up-to-date lists of accessories can be obtained from Burmeier and the company’s sales partners. Please quote the bed model. Here are some examples of accessories:... -
Page 84: Technical Data
Instruction Manual for Lenus Care Bed 9 Technical data All the indicated dimensions and weights in this manual are approximate. 9.1 D IMENSIONS AND WEIGHTS 200 x 90 cm (standard) Mattress base (LxW) (optional equipment: 220 x 90 cm) with bed extension... -
Page 85: Electrical Data
Instruction Manual for Lenus Care Bed 9.3 E LECTRICAL DATA Control unit for external power adapter: ® Type LINAK CB06 OpenBus Input voltage 20-34 V DC Max. current input DC 8 A Internal device fuse 2-fold electronic, automatic-resetting overload protection;... - Page 86 Instruction Manual for Lenus Care Bed Handset Type Linak HL75 Protection category IP X4 Additional handset for Trendelenburg/reverse-Trendelenburg position (optional equipment) Type Linak HL7 Protection category IP X4 Electric motors for mattress base height Type Linak LA 27 Force/installation 4000 N/ 500 mm/ 330 mm...
-
Page 87: Ambient Conditions
Instruction Manual for Lenus Care Bed 9.4 A MBIENT CONDITIONS The ambient conditions stated below must be maintained: For storage/transport: Storage temperature Min. -10°C, max.+ 50°C Relative air humidity Min. 20 %, max. 80 % (non-condensing) Air pressure Min. 700 hPa, max. 1060 hPa (at altitude ≤... -
Page 88: Symbols Shown On The Product
Instruction Manual for Lenus Care Bed 9.5 S YMBOLS SHOWN ON THE PRODUCT 9.5.1 Electrical data The following type plate with bed-specific electrical data and other symbols is attached to the bed. Type plate, example Symbol Meaning Device with type BF applied part in accordance with IEC 60601-1... -
Page 89: Stickers
Instruction Manual for Lenus Care Bed 9.5.3 Stickers Symbol Meaning Conformity mark according to Medical Devices REGULATION (EU) 2017/745 (MDR) Safe working load (= max. permitted total weight of resident, mattress and all accessories attached) Maximum weight of occupant (= max. permissible weight of occupant;... -
Page 90: Information On Electromagnetic Compatibility (Emc)
Instruction Manual for Lenus Care Bed 9.6 I (EMC) NFORMATION ON ELECTROMAGNETIC COMPATIBILITY − The use of accessories, transducers and cables other than those supplied by the manufacturer of this bed may result in increased electromagnetic emissions or reduced electromagnetic immunity of the bed and may lead to incorrect operation. - Page 91 Instruction Manual for Lenus Care Bed This device is compliant with the following EMC standards regarding interference emissions and immunity: Ambient limit values of the interference emissions Phenomenon Professional healthcare facilities Home healthcare environment Conducted and radiated CISPR 11 CISPR 11...
- Page 92 Instruction Manual for Lenus Care Bed Ports for signal input/signal output parts Phenomenon EMC basic Immunity test level standard Professional healthcare Home healthcare facilities environment Electrostatic discharge (ESD) IEC 61000-4-2 +/- 8 kV; contact +/- 2 kV, +/- 4 kV, +/- 8 kV, +/- 15 kV; +/- 25 kV air...
-
Page 93: Classification
Instruction Manual for Lenus Care Bed 9.7 C LASSIFICATION • This bed fulfils all the requirements of the Medical Device Regulation (EU) 2017/745 (MDR). • This bed is classified as a Class I active medical product with type BF application parts. - Page 94 Instruction Manual for Lenus Care Bed 10 Dismantling the bed • Move the backrest, thigh rest and lower leg rest to a horizontal position. • Move the mattress base to the highest position. • Disconnect the power plug/power adapter plug from the mains socket.
- Page 95 - The operator of this bed is legally obliged to send the electrical components directly to the manufacturer and not to dispose of them at municipal waste collection points. BURMEIER and its service and sales partners will take these components back.
- Page 96 Instruction Manual for Lenus Care Bed 12 Declaration of conformity We, Burmeier GmbH & Co. KG, in our sole responsibility as the manufacturer, hereby declare that this product complies with the provisions of REGULATION (EU) 2017/745 OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of 5 April 2017 (MDR).
- Page 97 Instruction Manual for Lenus Care Bed Notes Page 97...
- Page 98 Instruction Manual for Lenus Care Bed Notes Page 98...
- Page 99 Instruction Manual for Lenus Care Bed Notes Page 99...
- Page 100 Published by: Burmeier GmbH & Co. KG (A Stiegelmeyer-Group company) Pivitsheider Strasse 270 • 32791 Lage/Lippe, Germany Tel.: +49 (0) 52 32/98 41- 0 • Fax: +49 (0) 52 32/98 41- 41 Email: info@burmeier.com Internet: www.burmeier.com No part of this manual may be reproduced without the prior written permission of the publisher.
