Advantech ADAM-3956 Startup Manual

ADAM-3956
100-pin SCSI DIN-rail Wiring Board
Startup Manual
Overview
The ADAM-3956 terminal board provides convenient and
reliable signal wiring for PCI-1240/1245/1245E/1245V/1
245L/1265/1285/1285E with 100-pin SCSI connector. Its D-
SUB 26P type connectors give you the quick and easy way
to connect to the Panasonic A5/A6 , Yaskawa Sigma V/7 ,
Mitsubishi J3/J4 and Delta A2 servo motors.
Features
1. DIN-rail wiring board for PCI-1240/1245/1245E/1245
V/1245L/1265/1285/1285E application.
2. Dimensions (W x L x H): 122 x 171 x 45mm (4.8" x
6.73" x 1.77")
3. DB-26 connector
4. LED indicators
General Specifications
Input Voltage
Operating Temperature
Storage Temperature
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for ADAM-3956.
Part No. 2003395603
24V +/- 10%
0°C to 60°C
-20°C to 85°C
Edition 4
Dec. 2019

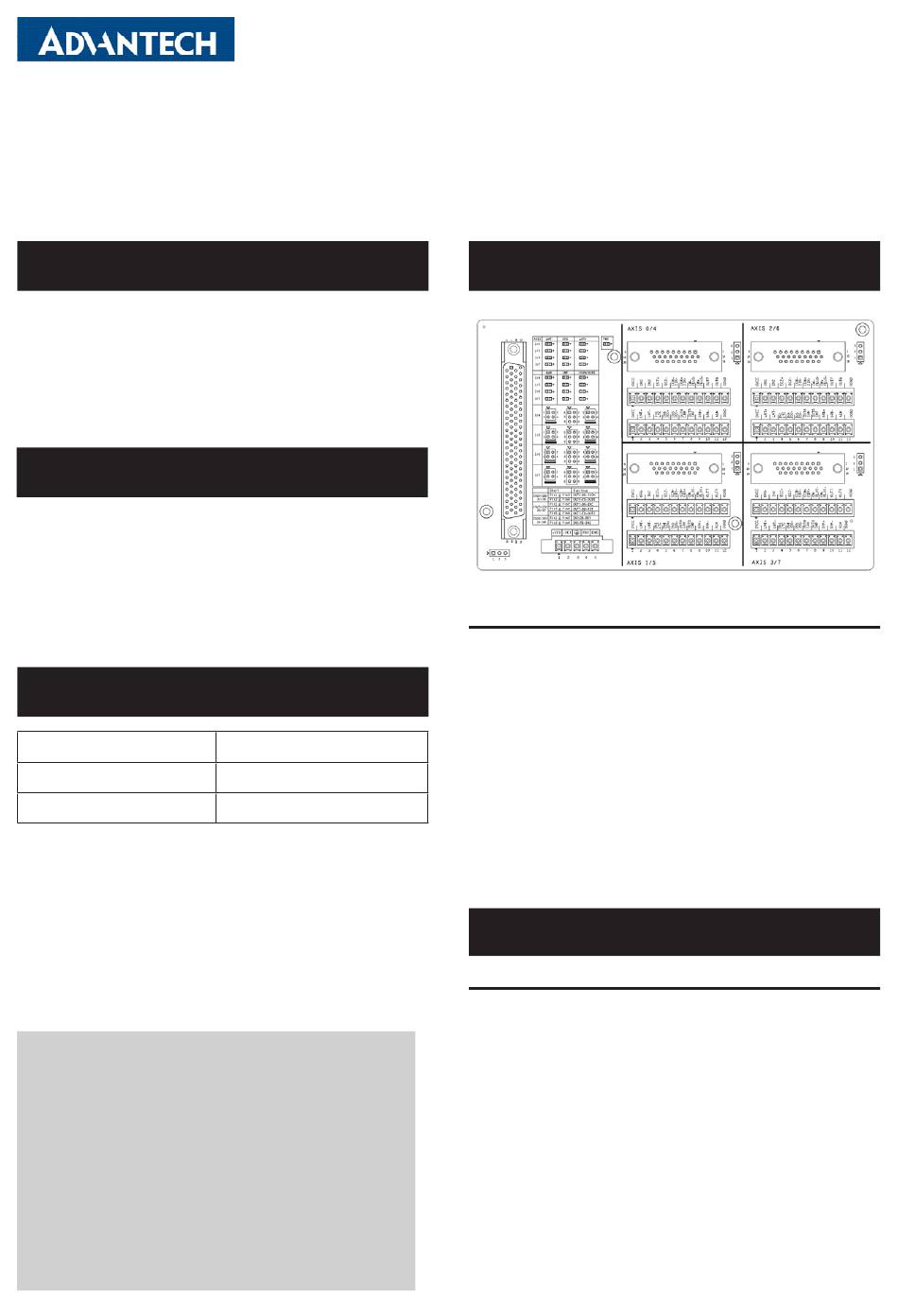

Board Components
Optional Cables
• PCL-101100M-3E SCSI-100 Shielded Cable, 3m
• PCL-101100SB-1E Mini-SCSI-100 Shielded Cable, 1m
• PCL-101100SB-2E Mini-SCSI-100 Shielded Cable, 2m
• PCL-101100SB-3E Mini-SCSI-100 Shielded Cable, 3m
• PCL-20153PA5-S2E DB26 to SCSI-50 Cable for Pana-
sonic A4/A5, 2m
• PCL-20153YS5-S2E DB26 to SCSI-50 Cable for Yaskawa
Sigma V, 2m
• PCL-20153MJ3-S2E DB26 to SCSI-50 Cable for Mitsubi-
shi J3S, 2m
• PCL-20153DA2-S2E DB26 to SCSI-50 Cable for Delta
A2, 2m
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio fre-
quency energy and,if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
