Parts Listing; Extension Boot Kit 47862-1 (1 Phase), & 47862-3 (3 Phase) - Chore-Time FLEX-AUGER 108 Installation Instruction

Parts Listing

Parts Listing

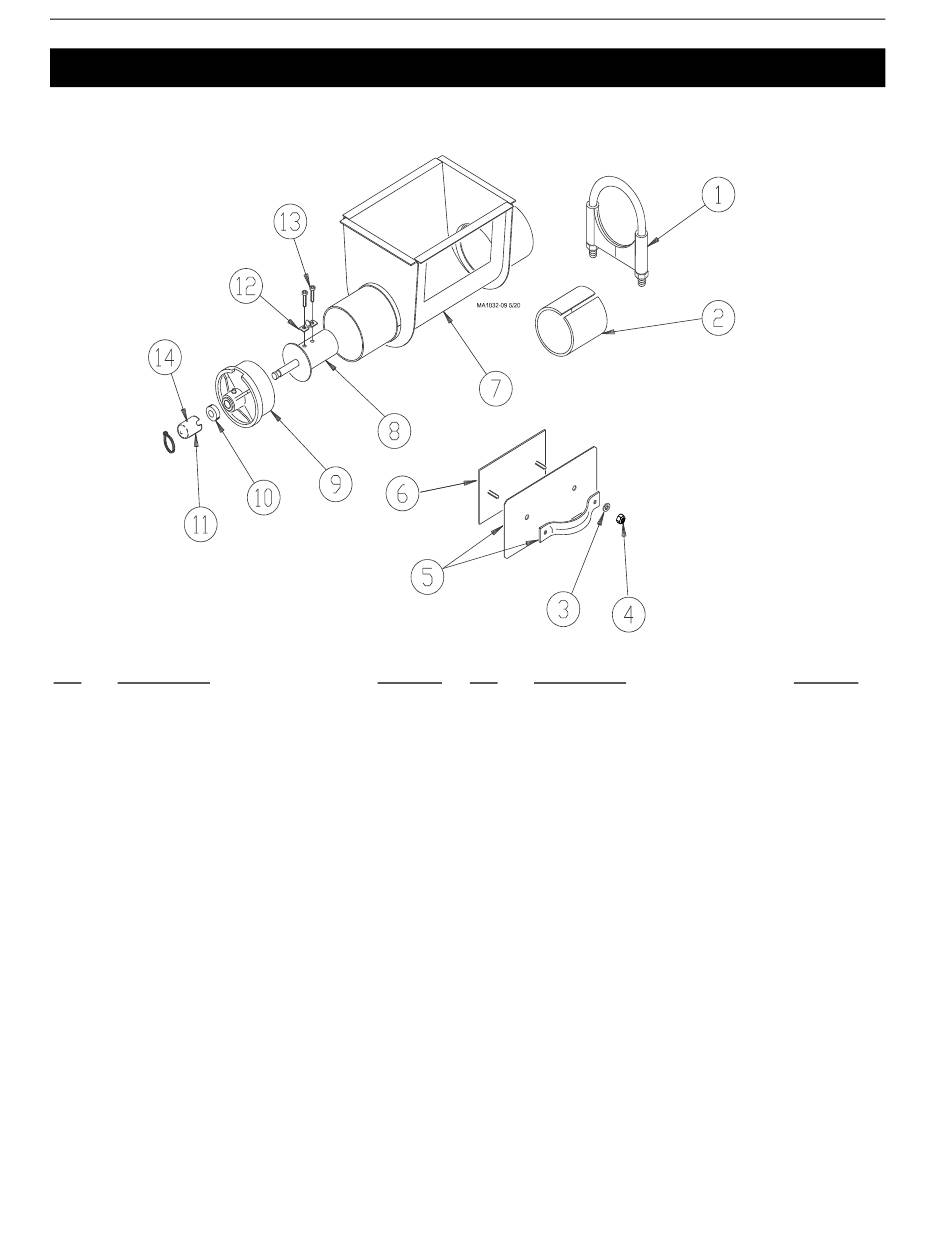

Extension Boot Kit 47862-1 (1 Phase), & 47862-3 (3 Phase)
KEY DESCRIPTION
1 Tube Clamp
2 Tube Insert
3* Sealing Washer
4* 5/16-18 Nut
5* Cover Weldment
6* Back Plate Assembly
7 Boot Body Weldment
8 Anchor Weldment
*Indicates components of 6197 Clean-Out Cover Assembly
Note: The Extension Boot components (less the Control Unit) may be ordered as an assembly under Chore-Time Part
No. 34372.
12
PART NO. KEY DESCRIPTION
34338 9 Bearing Cap Assembly
34337 10 5/8" Set Collar
39-20155 11 Safety Cap
2148 12 Anchor Clamp
6301 13 5/16-18 x 7/8" Socket Hd Cap Screw
6298 14 Single Wire Hose Clamp
30386 -- Adapter Plate Assembly
34369 -- Direct Drive Control Unit for 34633-1
-- Direct Drive Control Unit for 34633-3
Extension Boot System
PART NO.
30314
1386
29702
7703
6850-1
56705
7856
6500-22
25770-6
MA1102B
