Packing List
In addition to this guide, the package includes the following items:

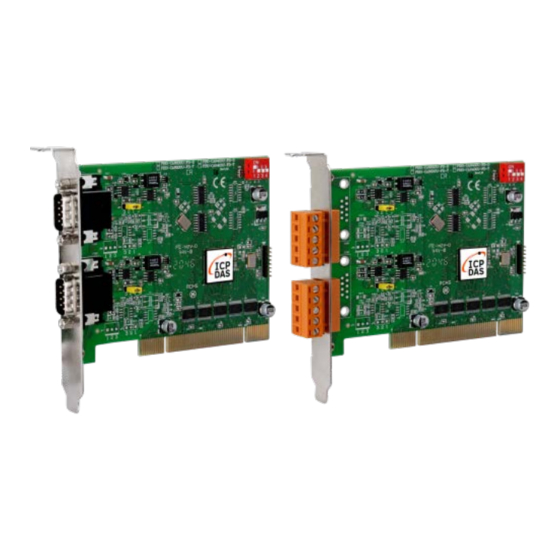

PISO-CAN200U-FD-T or
PISO-CAN200U-FD-D x 1
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
PISO-CAN200U-FD series
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
Model Name
Model Name
Quick Start
v1.0, Feb 2021
P1
Advertisement
Related Manuals for ICP DAS USA PISO-CAN200U-FD Series
Summary of Contents for ICP DAS USA PISO-CAN200U-FD Series

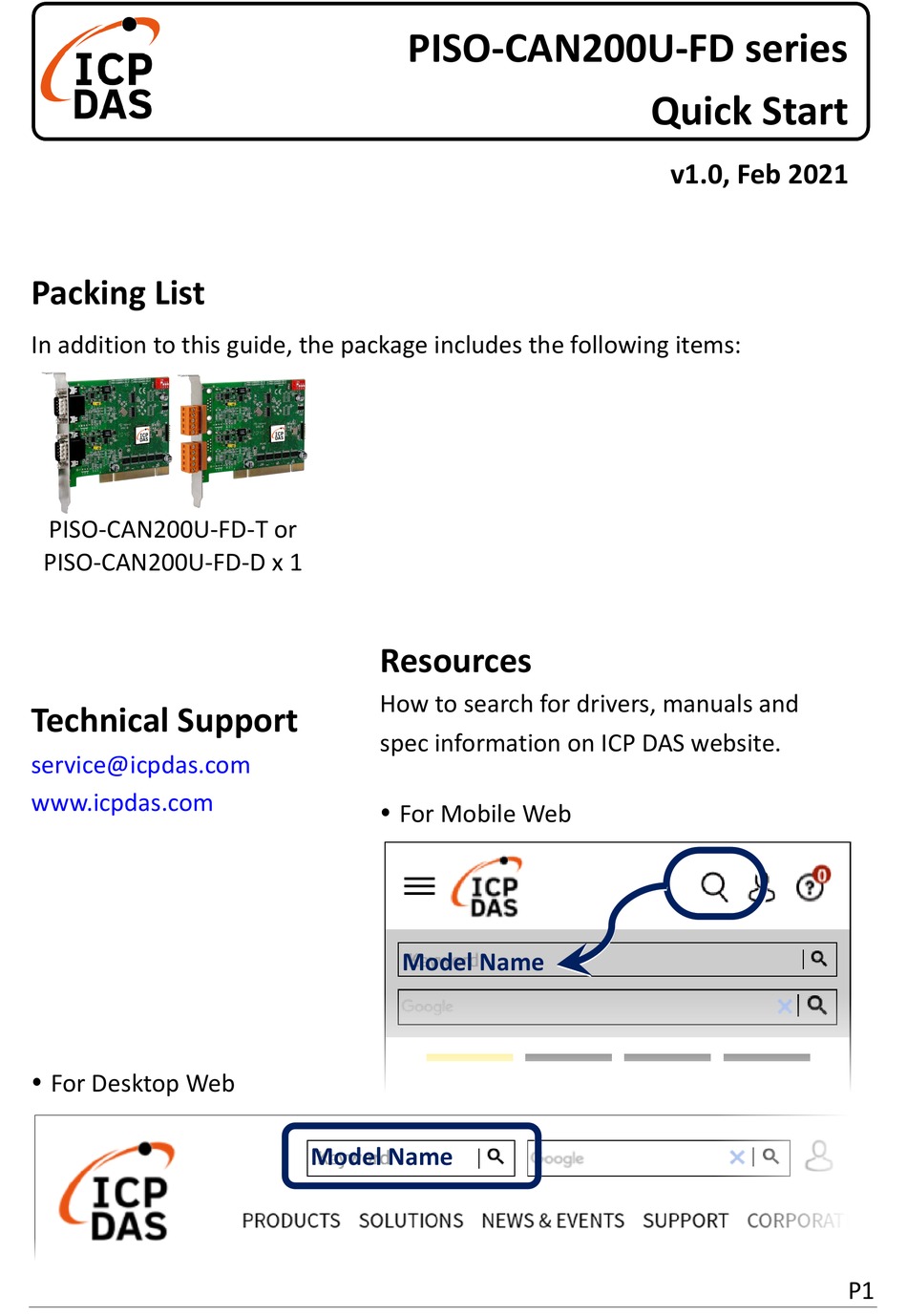

- Page 1 PISO-CAN200U-FD series Quick Start v1.0, Feb 2021 Packing List In addition to this guide, the package includes the following items: PISO-CAN200U-FD-T or PISO-CAN200U-FD-D x 1 Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.
-
Page 2: Installing Windows Driver
Step 6: Reconnect the power supply and power on the computer. Step 7: Once the computer reboots, follow section 2 to install the windows driver of PISO-CAN200U-FD series board. --------------------------------------------------------------------- Installing Windows Driver Step 1: Download or locate the Windows driver. - Page 3 (2). On the Device Manager screen, select the Network Controller device from Other devices item, then right-click the mouse button. Then select Update Driver Software… to continue. (3). On the Update Driver Software – Network Controller screen, click the Browse my computer for driver software to continue.
- Page 4 (4). Then Click the Browser… button to select the driver directory and click the Next button to start to install the driver. (5). Once the installation has been completed, click the Close button to exit.
-
Page 5: Pin Assignment
(6). After successfully to install the driver, you can see the PCM_PEX_PISO-CANFD Cards in CANFDCard item. ---------------------------------------------------------------- Pin Assignment Pin Assignments for the 5-pin screw terminal connector Name Description CAN_Gnd, signal line for the CAN CAN_GND port. CAN_Low, signal line for the CAN CAN_L port. - Page 6 Pin Assignments for the 9-pin Male D-Sub connector Name Description Not used CAN_Low, signal line for the CAN_L CAN port. CAN_Gnd, signal line for the CAN_GND CAN port. Not used Not used CAN_Gnd, signal line for the CAN_GND CAN port. CAN_High, signal line for CAN_H the CAN port.
- Page 7 Step 2: Setting up the board Connect the CAN_L and CAN_H pin on port1 and port2 of board. Step 3: Active the board Launch the PISO-CANFD Utility software.
- Page 8 (1). Click the “Connect to …” item to open the “Connect” frame of Utility. (2). Select the necessary PISO-CAN200U-FD module. (3). On the “CAN Setting location, user can set the CAN operation mode, bit rate and filter prarameters. For detail information, please refer to section “2.4.
