PISO-DNS100U DeviceNet Multi-Slave PCI board
1.
Introduction
This Quick Start User Guide introduces users how to implement the PISO-DNS100U PCI
board to your application quickly. Therefore, it is only provided with the basic instructions. For
more detailed information, please refer to the PISO-DNS100U manual in the ICPDAS CD-ROM.
Also, users can download the manual from the ICPDAS web site:
http://www.icpdas.com/products/Remote_IO/can_bus/piso-dns100.htm
This manual would help you quickly to familiarize yourself with the PISO-DNS100U PCI
board and DeviceNet communication. For more the detail information, please refer to the user's

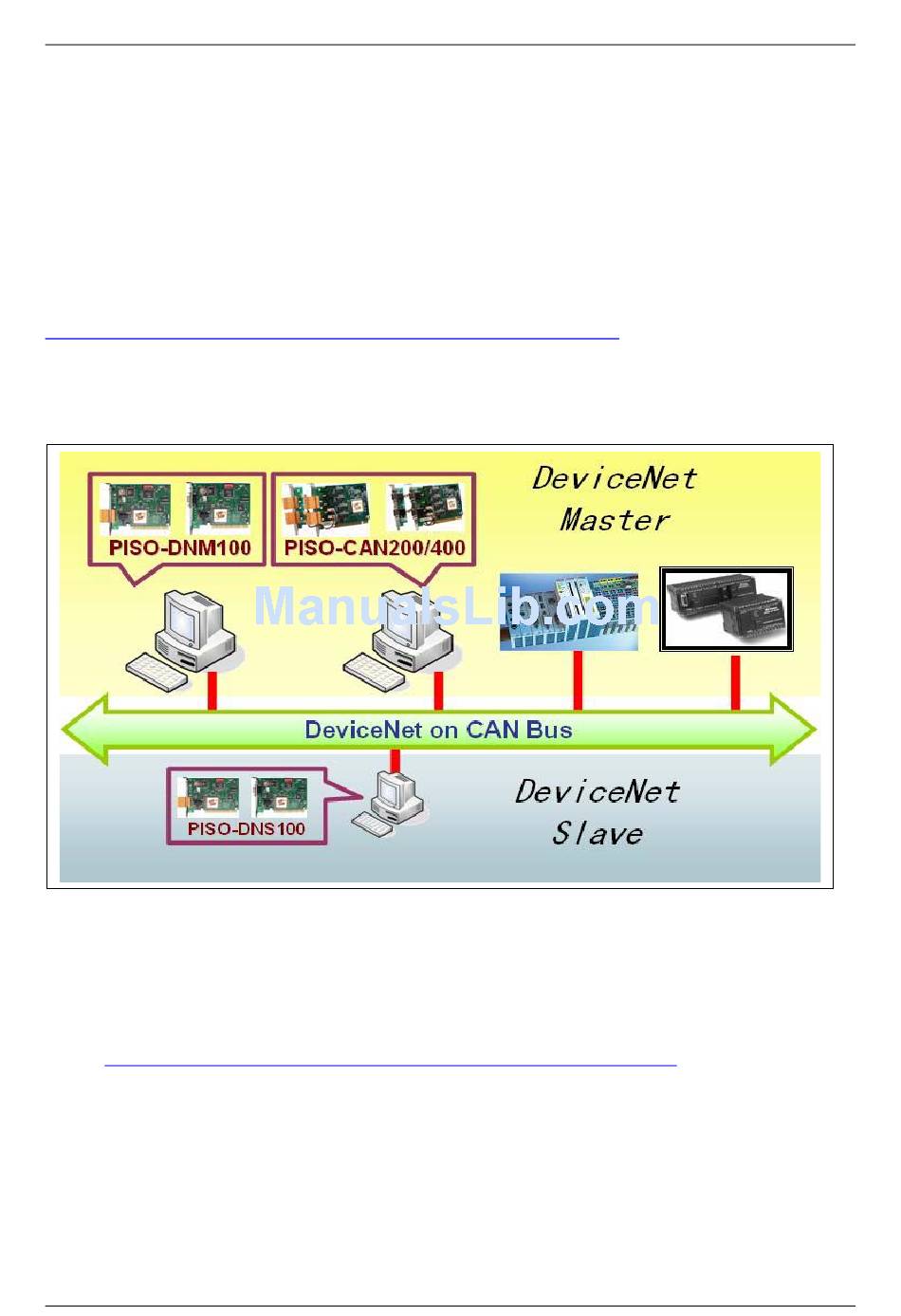

manual of the PISO-DNS100U. Here is the example of the DeviceNet network.
The users should prepare at least one DeviceNet master for demonstrating the I/O data
exchanging. The users can use the PLC with DeviceNet master module to start this demo. There are
some DeviceNet master products provided by ICPDAS, such as PISO-DNM100U, PISO-CAN
200/400...etc. Please visit the following web site for more information.
http://www.icpdas.com/products/Remote_IO/can_bus/can_intro.htm#5
PISO-DNS100U Quick Start Manual (Version 1.0, Jan/2010) ------------ 1
Quick Start User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the PISO-DNS100U and is the answer not in the manual?

Questions and answers

Summary of Contents for ICP DAS USA PISO-DNS100U

  • Page 1 Quick Start User Guide Introduction This Quick Start User Guide introduces users how to implement the PISO-DNS100U PCI board to your application quickly. Therefore, it is only provided with the basic instructions. For more detailed information, please refer to the PISO-DNS100U manual in the ICPDAS CD-ROM.
  • Page 2 I/O data. To establish slave server mechanism, there are four main steps to be followed. The figure demonstrates the basic process for the DeviceNet communication between masters and slaves. Hardware Setting Terminal Resister Setting Pin assignment (1) 5-pin screw terminal connector PISO-DNS100U Quick Start Manual (Version 1.0, Jan/2010) ------------ 2...
  • Page 3 Here shows the users how to connect the master and slave devices by CAN bus. The slave devices should be connected to form the serial type which is shown as follows. The following wire connection is wrong which is shown as follows. PISO-DNS100U Quick Start Manual (Version 1.0, Jan/2010) ------------ 3...
  • Page 4: Indicator Led

    Indicator LED Green Event or Status Description There are some problems with the hardware of the PISO-DNS100U board. Please contact your local field agent. There are some slaves which can not be on-line. There exists at least Twinkle one duplicate MAC ID in the DeviceNet network.
  • Page 5: Driver Installation

    After completing the software installation, the toolkit is installed in the system above. Please refer to the manual of toolkit to know the detail. The utility features as follows. Supports to add and remove slave devices in the PISO-DNS100U. Can import and export all configurations into or from the EEPROM easily.
  • Page 6 After clearing successfully, the Input Length = 1 , Output Length = 1 users should change the baud rate to the Please press “OK” button to add it. original setting. PISO-DNS100U Quick Start Manual (Version 1.0, Jan/2010) ------------ 6...
  • Page 7 “Board ID” field. Note that the value of Demo\Project1.exe. After executing the demo, “Board ID” must the same with the previous it would also search the PISO-DNS100 boards selection of the toolkit. in your PC. PISO-DNS100U Quick Start Manual (Version 1.0, Jan/2010) ------------ 7...
  • Page 8 PISO-DNS100U Quick Start Manual (Version 1.0, Jan/2010) ------------ 8...
