The Binks MACH 2A
Hydraulically-Assisted Automatic
HVLP Spray Gun combines the
proven HVLP efficiency of Binks
best selling MACH 1 Spray Gun
with hydraulically-assisted atom-
ization to yield a reliable, care-
fully engineered special-purpose
spray gun. The MACH 2A pro-
vides consistent coatings with
difficult materials by "preatomiz-
ing" pressurized fluid through a
constrictive carbide nozzle.
Specially designed air nozzles
further promote material atomiza-
tion and ensure consistent, even
finishes.
The MACH 2A operates at high
transfer efficiencies, and fully sat-
isfies the "California South Coast
Air Quality Management
District" requirements for a
"High Volume Low Pressure" air
spray gun. The MACH 2A makes
use of special features to ensure
this compliance – the air inlet
passage incorporates a venturi to
actively limit airflow. The throat
of the venturi converts dense, high
pressure inlet air to high volume,
low pressure atomizing air, and
creates a highly efficient "soft
spray."
This Part Sheet contains an
exploded drawing and a detailed
parts list to enable a complete
understanding of the spray gun's
construction. A summary of
spray gun operation, cleaning,
care and maintenance, and trou-
bleshooting common problems is
also provided.
NOTE
Please be sure to read the
warnings on page 2.
NOTE
IMPORTANT REGULATORY NOTE regarding
the use of this product appears on page 8.

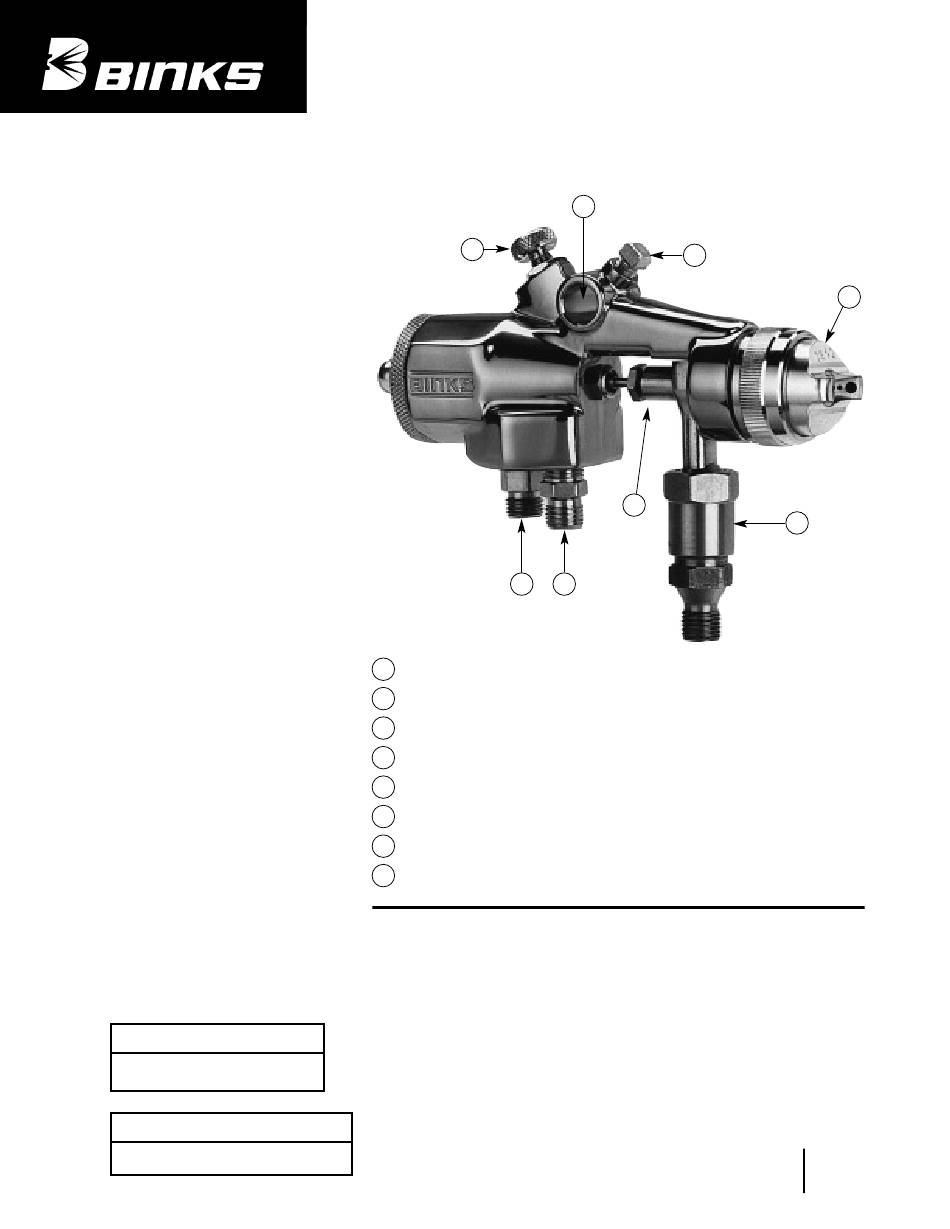

MACH 2A Hydraulically-
Assisted Automatic
HVLP Spray Gun
4
3
1
FLUID INLET
2
ATOMIZING AIR INLET - 1/4 NPS
3
CYLINDER AIR INLET - 1/4 NPS
4
SIDE PORT CONTROL
5
MOUNTING HOLE (1/2" Diameter)
6
MOUNTING LOCK SCREW
7
AIR NOZZLE ASSEMBLY
8
NEEDLE COVER (Not Shown)
PACKAGE CONTENTS
Please note your Binks MACH 2A
Spray Gun package was shipped
with the following contents.
If anything in the following
list is missing, please call
1-800-992-4657 for a prompt
shipment of the missing item.
5
6
8
2
1
MACH 2A Spray Gun
1
PART SHEET . . . . . . . . . .2552R-5
1
GUN BRUSH . . . . . . . . .82-469
1
GUNNER'S MATE . . . . . .54-3871
Replaces
Part Sheet
2552R-4
7
1
Part
Sheet
2552R-5
