Owner's Manual
5-Port Unmanaged Industrial Fast 10/100
Ethernet Switch, Plug and Play, Ruggedized,
DIN and Wall Mountable
8-Port Unmanaged Industrial Fast 10/100
Ethernet Switch, Plug and Play, Ruggedized,
DIN and Wall Mountable
8-Port Unmanaged Industrial Fast 10/100
Ethernet Switch, Plug and Play, Ruggedized,
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства представлена на веб-сайте
компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Model: NFI-U05

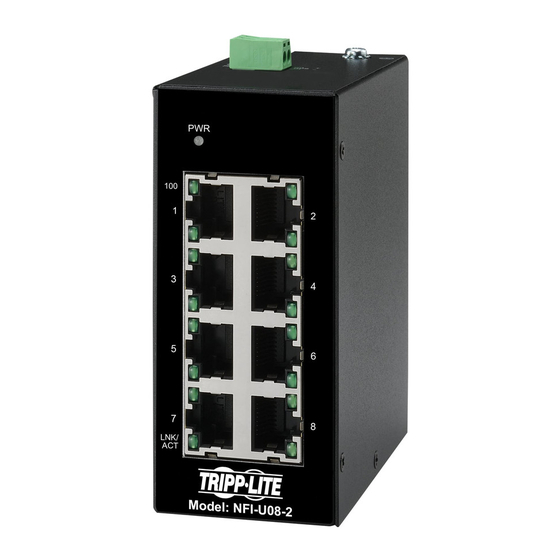

Model: NFI-U08-1
DIN Mountable
Model: NFI-U08-2
tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
surge protector in our monthly drawing!
tripplite.com/warranty
1
®
Advertisement
Table of Contents
Related Manuals for Tripp Lite NFI-U05
Summary of Contents for Tripp Lite NFI-U05
- Page 1 Model: NFI-U08-2 Este manual está disponible en español en la página de Tripp Lite: tripplite.com Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com Русскоязычная версия настоящего руководства представлена на веб-сайте компании Tripp Lite по адресу: tripplite.com Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:...
-
Page 2: Package Contents
IEEE 802.3 Auto Negotiation o IEEE 802.3x Flow Control • Supports MAC address auto-learning and auto-aging • Preinstalled durable rail clip mounts firmly to any standard 35 mm DIN rail* *Note: Only NFI-U05 and NFI-U08-1 are both DIN and wall mountable... -
Page 3: Optional Accessories
Optional Accessories • N001-Series Cat5e 350 MHz Snagless UTP Cables • N002-Series Cat5e 350 MHz UTP Ethernet Cables • N200-Series Cat6 Gigabit Molded UTP Ethernet Cables • N201-Series Cat6 Gigabit Snagless Molded UTP Ethernet Cables... -
Page 4: Product Overview
Product Overview NFI-U05 5-Port Unmanaged Industrial Fast 10/100 Ethernet Switch, Plug and Play, Ruggedized, DIN and Wall Mountable 100 Mbps Power Grounding Screw LNK/ACT Top View Front View Side View... - Page 5 Product Overview NFI-U08-1 8-Port Unmanaged Industrial Fast 10/100 Ethernet Switch, Plug and Play, Ruggedized, DIN and Wall Mountable LNK/ACT 100 Mbps (Green) (Green) +18~30V DC 100 Mbps Grounding Power LNK/ACT (Green) Screw (Green) (Green) Front View...
- Page 6 Product Overview NFI-U08-2 8-Port Unmanaged Industrial Fast 10/100 Ethernet Switch, Plug and Play, Ruggedized, DIN Mountable DIN Rail Grounding Screw Power Input Terminal Block 100 Mbps Top View LNK/ACT Grounding Screw Front View...
- Page 7 DIN-Rail Mounting and Dismounting Instructions ATTENTION: The NFI-Series switches are open-type devices and shall be DIN mounted or wall mounted (NFI-U05 and NFI-U08-1 only) in a rack enclosure. The ambient temperature should not exceed 75°C (167°F). Mounting the Switch Place the switch on the DIN rail from above using the built-in slot. Push the front of the switch toward the mounting surface until it snaps into place.
- Page 8 1.5 mm - 3 mm Mounting holes for 50 mm 50 mm NFI-U05 Mounting Holes for Drawing of NFI-U05 Screw Installation Distance 2. The switch can be wall mounted either vertically or horizontally. Mounting direction with screw Mounting direction...
- Page 9 DIN-Rail Mounting and Dismounting Instructions Wall-Mounted Mask (NFI-U08-1 Only) 1. Remove the DIN rail kit before wall mounting. 2. Mount the switch by using mounting holes on the wall at the appropriate places. 3. The switch can be wall mounted either vertically or horizontally. Mounting bracket for NFI-U08-1 Grounding the Switch...
-
Page 10: Wiring Requirements
Wiring Requirements WARNING: Safety measures should be taken before connecting the power cable. Turn off the power before connecting modules or wires. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure you are using the correct voltage. - Page 11 Wiring Requirements Wiring Power Input NFI-U05 with 3-Pin Terminal Block Check the polarity while connecting. Top view of the Terminal Block is shown in the figure below: Power Input Terminals Grounding Terminals Power Grounding Screw CAUTION: • Use copper conductors only.
- Page 12 (gray color) commonly known as a PCB terminal block, as it is directly mounted in the PCBA. The NFI-U08-1 model does not require an additional male connector like the NFI-U05 and NFI-U08-2 models. Check the polarity while connecting. Top view of the Terminal Block is shown...
- Page 13 Wiring Requirements NFI-U08-2 with 2-Pin Terminal Block You can use “PWR” for Power input. Top view of the Terminal Block is shown in the figure below: DIN Rail Grounding Screw Power Input Terminal Block 100 Mbps Terminal Block Top View LNK/ACT Grounding Screw...
-
Page 14: Led Indicators
Cabling Connect one end of an RJ45 Ethernet cable (see Optional Accessories) into the switch’s RJ45 Ethernet port. Connect the other end to a network device. Cat5e cable or above is recommended. All ports support Fast Ethernet (10/100Base-T), as well as auto-negotiation and auto MDI/MDI-X to eliminate the need for crossover cabling. -
Page 15: Specifications
Specifications Power Input Voltage NFI-U05: Single power input 12~ 48VDC/0.15A NFI-U08-1: Single power input 18~ 30VDC/0.2A NFI-U08-2: Single power input 12~ 48VDC/0.2A Connection NFI-U05/NFI-U08-1: 3-pin terminal block NFI-U08-2: 2-pin terminal block Reverse Polarity Protection Present (all models) Power Consumption NFI-U05/NFI-U08-2: 3W... -
Page 16: Warranty And Product Registration
Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* *No purchase necessary. Void where prohibited. Some restrictions apply. See website for details. - Page 17 • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
