Owner's Manual
8-Port Unmanaged Plus Industrial Gigabit
10/100/1000 Base-T Ethernet Switch w/ 2 GBE
SFP Slots, DIN Mountable
5-Port Unmanaged Plus Industrial Gigabit PoE
Ethernet Switch, 4x PoE+ 30W, DIN Mountable
5-Port Unmanaged Plus Industrial Gigabit PoE
Ethernet Switch w/ 2 SFP Ports, 4x PoE+ 30W,
8-Port Unmanaged Plus Hardened Gigabit PoE
Ethernet Switch w/ 2 SFP Ports, 8x PoE+ 30W,
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства представлена на веб-сайте
компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.

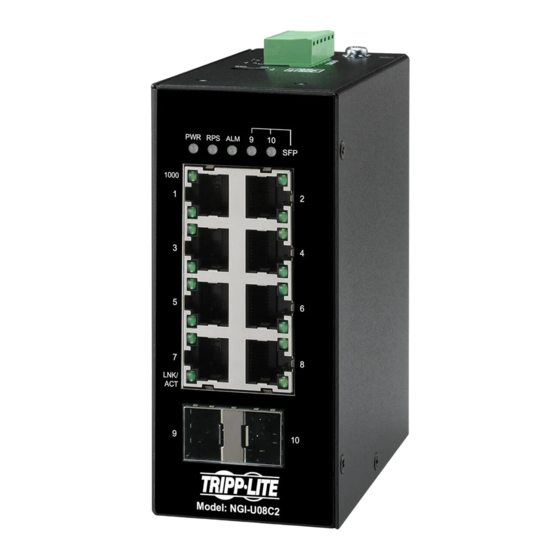

Model: NGI-U08C2
Model: NGI-U05POE4
DIN Mountable
Model: NGI-U05C2POE4
DIN Mountable
Model: NGI-U08C2POE8
tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
surge protector in our monthly drawing!
tripplite.com/warranty
1
®
Advertisement
Table of Contents
Related Manuals for Tripp Lite NGI-U08C2
Summary of Contents for Tripp Lite NGI-U08C2
- Page 1 Model: NGI-U08C2POE8 Este manual está disponible en español en la página de Tripp Lite: tripplite.com Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com Русскоязычная версия настоящего руководства представлена на веб-сайте компании Tripp Lite по адресу: tripplite.com Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar:...
-
Page 2: Package Contents
Package Contents • NGI-U08C2 (non-PoE), NGI-U05POE4, NGI-U05C2POE4 or NGI-U08C2POE8 Plug-and-Play Gigabit PoE Ethernet Switch • DIN-rail mounting clip (pre-installed on unit) • Owner’s Manual Product Features • 5 or 8 10/100/1000Mbps RJ45 ports with PoE/PoE+ (NGI-U08C2 is a non-PoE switch) •... -
Page 3: Optional Accessories
IEEE 802.3ab 1000Base-T o IEEE 802.3 Auto Negotiation o IEEE 802.3z 1000Base-SX/LX o IEEE 802.1p Class of Service (NGI-U08C2 and NGI-U08C2POE8 Models Only) o IEEE 802.3az EEE (NGI-U08C2POE8 Only) o IEEE 802.3af PoE o IEEE 802.3at PoE+ • Supports MAC address auto-learning and auto-aging • Pre-installed durable rail clip mounts firmly to any standard 35 mm DIN... -
Page 4: Product Overview
Product Overview NGI-U08C2 (non-PoE) Grounding Screw DIN-Rail Grounding Screw 1000Mbps Power Input Terminal Block DIP Switches LNK/ACT Top View Front View NGI-U05POE4 PoE+ Reset 1000Mbps Grounding (Green) Screw LNK/ACT (Green) Power Input Terminal Block Top View Front View... - Page 5 Product Overview NGI-U05C2POE4 PoE+ Reset 1000Mbps Grounding (Green) Screw LNK/ACT Power (Green) Input Terminal (1000Mbps) Block Top View Front View NGI-U08C2POE8 Reset PoE+ Grounding 1000Mbps Screw (Green) Power Input Terminal Block LNK/ACT (Green) DIP Switches Top View Front View...
-
Page 6: Mounting The Switch
Mounting and Dismounting to DIN-Rail Mounting the Switch Place the Gigabit Ethernet PoE+ switches or NGI-U08C2 switch on the DIN rail from above using the slot, then push the front of the switch toward the mounting surface until it snaps into place with a click sound. -
Page 7: Wiring Requirements
Mounting and Dismounting to DIN-Rail Wiring Requirements WARNING: Safety measures should be taken before connecting the power cable. Turn off the power before connecting modules or wires. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure you are using the correct voltage. -
Page 8: Power Input
Mounting and Dismounting to DIN-Rail Power Input Safety measures should be taken before connecting the power cable. Turn off the power before connecting modules or wires. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure you are using the correct voltage. DO NOT use a voltage greater than what is specified on the product label. -
Page 9: Wiring Power Input
Wiring Power Input NGI-U08C2 with 6-Pin Terminal Block Use “PWR” for Primary Power input and “RPS” for Redundant Power input. The top view of Terminal Block is shown in the figure below: Terminal Block Caution: • Use copper conductors only. • Use wiring cable with rated temperature at least 221°F (105°C). • Tighten the wire to a torque value 4.5 lb•in (0.5 N•m). -
Page 10: Dip Switch Settings
Power Relay rating: 24V, 1A The NGI-U08C2 has one set of relay alarm output. This relay contact uses two contacts of the terminal block on the top panel. The two contacts of the 6-pin terminal block connector are used to detect user- configured events. The two wires attached to the fault contacts form... - Page 11 Wiring Power Input User-Configurable Switches PWR or RPS “DIP ON”: When there is a power loss, the switch will operate as “Relay ON”. If connecting only to single power source and a power loss occurs, the switch system will shut down and not operate as “Relay ON”.
- Page 12 Wiring Power Input Redundant Power Input (NGI-U08C2POE8 Only) Use “PWR” for Primary Power input and “RPS” for Redundant Power input. To insert the power wire and connect the +24~57VDC power to the power terminal block: • Use a flathead screwdriver to loosen the wire clamp screws. • Insert the corresponding wires into the contacts. •...
- Page 13 Wiring Power Input DIP Switch Settings and Reset Button DIP Position Description Primary power alarm reporting is enabled. Primary power alarm reporting is disabled. Redundant power alarm reporting is enabled. Redundant power alarm reporting is disabled. Broadcast/DLF storm control is enabled. Storm Broadcast/DLF storm control is disabled.
- Page 14 Wiring Power Input The first two relate to alarm design: • PWR/RPS The switch supports dual power input, we define these power source as Primary Power Supplier (PWR) and Redundant Power Supplier (RPS). These two DIP switches are designed to provide an alarm mechanical to monitor the power connective status. If DIP switch is set to ON means alarm function is enabled. The remaining four relate to functionality: •...
- Page 15 Wiring Power Input Wiring Power Input (NGI-U05C2POE4 and NGI-U05POE4 Models Only) You can use “PWR” from the terminal block or 4-pin Mini-DIN for Power input. Top view of connectors are shown below: Terminal Block Mini-DIN Caution: • Use copper conductors only. •...
- Page 16 Ethernet 10/100/1000Base-T PSE Ports (NGI-U05POE4/ NGI-U05C2POE4 models only). • Ports 1-8 of the switch support Fast Ethernet in addition to Gigabit Ethernet 10/100/1000Base-T (NGI-U08C2/POE models only). • Port 5 of the switch supports Fast Ethernet in addition Gigabit Ethernet 10/100/1000Base-T RJ45 Port (NGI-U05POE4/NGI-U05C2POE4 models only).
- Page 17 Wiring Power Input Grounding the NGI-Series Switches Grounding and wire routing help to limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION: This product is intended to be mounted to a well-grounded mounting surface (such as a metal panel).
-
Page 18: Led Indicators
LED Indicators NGI-U08C2 (Non-PoE) LED (Color) Status Description Primary power is supplied to the Illuminated switch. PWR (Green) Primary power off or failure. Redundant power is supplied to Illuminated the switch. RPS (Green) Redundant power off or failure. External signal device will be activated through the terminal block ALM when there is any alarm. - Page 19 LED Indicators NGI-U05C2POE4 and NGI-U05POE4 LED (Color) Status Description Power On by terminal block PWR Illuminated or 4-pin mini DIN connector. PWR (Green) Terminal block PWR/4-pin mini DIN connector is not available. Illuminated Supplying power to PD devices. POE 1-4 (Green) No power supplied to PD devices.
- Page 20 LED Indicators NGI-U08C2POE8 LED (Color) Status Description Illuminated Primary Power is connected. PWR (Green) Primary Power failure or not available. Illuminated Redundant Power is connected. RPS (Green) Redundant Power failure or not available. Alarm for no Primary power or Illuminated Low I/P voltage.
-
Page 21: Specifications
Specifications NGI-U08C2 Model (Non-PoE) NGI-U05C2POE4 NGI-U05POE4 NGI-U08C2POE8 Power Dual power inputs Single power input Single power input Dual power inputs Input Voltage 24~48VDC/0.4A 24~57VDC/6A 24~57VDC/6A 24~57VDC/6A Connection 6-pin terminal block 2-pin terminal block 2-pin terminal block 6-pin terminal block Reverse Polarity... - Page 22 Specifications NGI-U08C2 Model (Non-PoE) NGI-U05C2POE4 NGI-U05POE4 NGI-U08C2POE8 Environmental Operating -40°F~167°F 14°F~140°F 14°F~140°F -40°F~167°F Temperature (-40°C~75°C) (-10°C~60°C) (-10°C~60°C) (-40°C~75°C) -40°F~185°F -40°F~185°F -40°F~185°F -40°F~185°F Storage Temperature (-40°C~85°C) (-40°C~85°C) (-40°C~85°C) (-40°C~85°C) 5 to 95% RH 5 to 95% RH 5 to 95% RH...
-
Page 23: Warranty And Product Registration
Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* *No purchase necessary. Void where prohibited. Some restrictions apply. See website for details. - Page 24 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite, they are entitled to: • Send old equipment for recycling on a one-for-one, like-for-like basis (this...
