superbrightleds HPAL2 Series User Manual

Important: Read all instructions prior to installation.

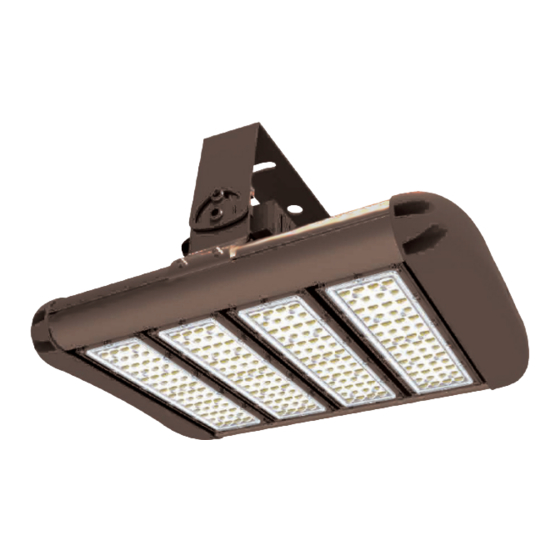

LED Area Light

Safety and Notes

• Product should be installed and serviced by a certified electrician
in accordance with applicable national, state, and local building
and electrical codes.
• To reduce the risk of electric shock, ensure that the main power
source and circuit breakers are switched off before performing
any installation or wiring procedures.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the
weight of the fixture. Failure to properly support fixture may
result in damage or injury, for which the manufacturer does not
assume responsibility.

Specifications

Environmental Specifications

Operating Temperature
IP Rating
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.

Installation

1. Remove supply power prior to installation.
2. If using optional mounting method, remove included bracket
and attach optional one.
3. Securely mount light and connect wiring.
Note: In some cases, such as with slip-fitter mount, the
wiring will need to be connected before mounting.
4. Restore supply power and on mounts that allow for it, adjust
angle as desired.

Wiring Diagram

120–277 VAC Input
Line
Line
Neutral
Neutral
Ground
Ground
1–10 V Dimming
Dim (+)
Dim (+)
Dim (-)
Dim (-)
-22°–122° F (-30°–50° C)
IP66
Black
Black
L L
L L
White
White
N N
N N
Green
Green
GND GND
GND GND
Purple
Purple
+ +
+ +
Gray
Gray
- -
- -

Optional Accessories

Rev Date: V1.0 12/21/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
HPAL2 Series
HPAL2-50K450-90
HPAL-SM
Surface Mount Bracket Set
HPAL-SF
Adjustable Slip-Fitter Mount
for Round Poles
HPAL-SF-TMB
Slip-Fitter Mount with
Wall Mount Tenon Bracket
HPAL-FA
Fixed Square Pole Mount
HPAL-UB
Alternate U-Bracket Mount
HPAL-UB-IH
Alternate U-Bracket Mount
with Eye Bolt
866-590-3533 superbrightleds.com
