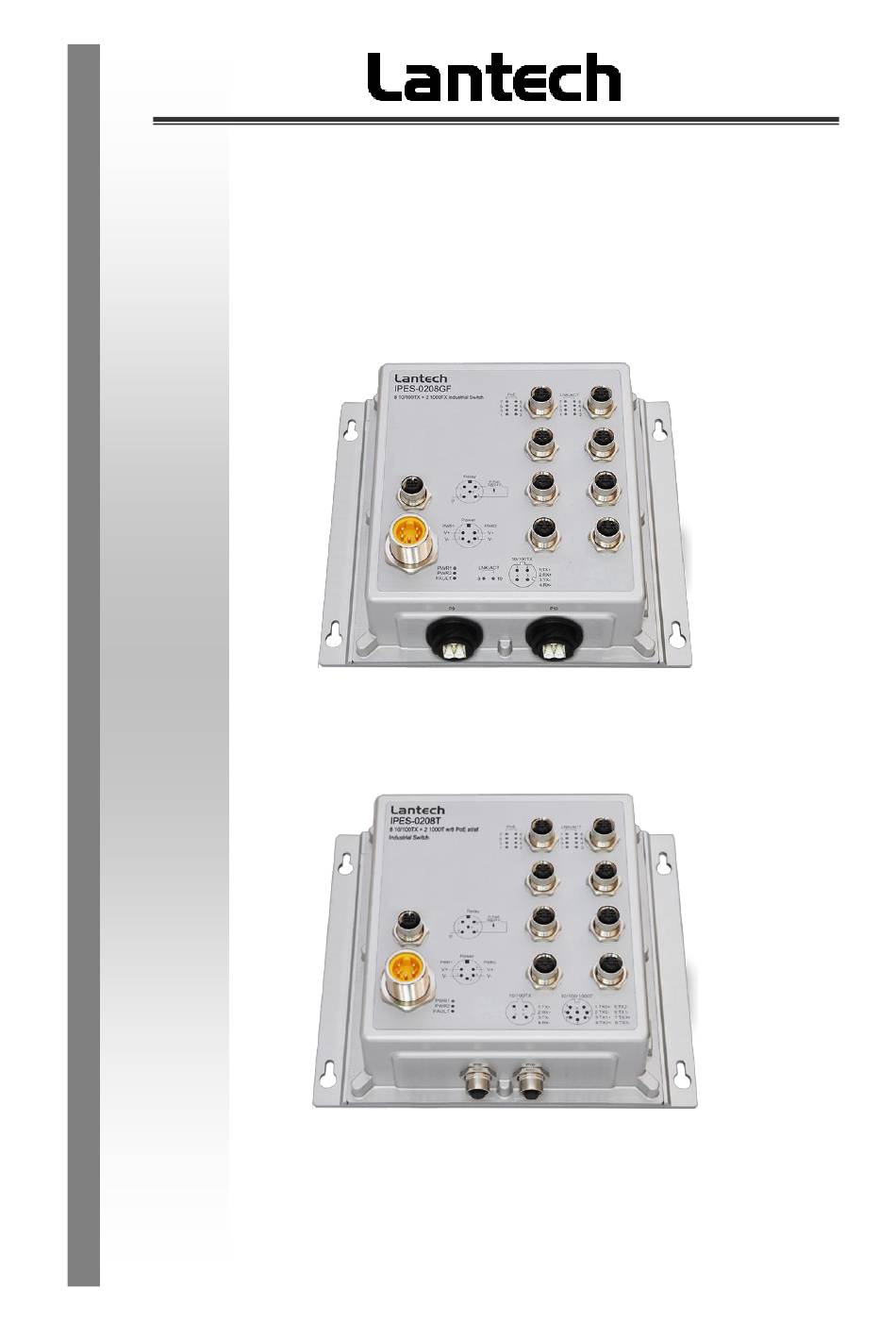

- Page 1 IPES/IES-0208 Series 8 10/100TX+ 2 10/100/1000T or 1000FX (w/8 PoE at/af) IP67/IP54 rated Industrial Unmanaged Switch User Manual IPES-0208GF-67 IPES-0208T-67 Aug 2021...
- Page 2 Recommendation for Shielded network cables STP cables have additional shielding material that is used to reduce external interference. The shield also reduces the emission at any point in the path of the cable. Our recommendation is to deploy an STP network cable in demanding electrical environments. Examples of demanding indoor environments are where the network cable is located in parallel with electrical mains supply cables or where large inductive loads such as motors or contactors are in close vicinity to the camera or its cable.
- Page 3 Lantech Communications Global Inc. Products offered may contain software which is proprietary to Lantech Communications Global Inc. The offer or supply of these products and services does not include or infer any transfer of ownership.
- Page 4 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 5: Table Of Contents
Content Chapter 1 Introduction ..........5 Chapter 2 Hardware Description ......6 Physical Dimension ........6 Package Content:........... 8 IP Protection ........... 8 LED Indicators..........11 Chapter 3 Hardware Installation ......12... -
Page 6: Chapter 1 Introduction
Chapter 1 Introduction Lantech IPES-0208 series are 8 10/100 Base-TX+ 2 10/100/1000T or 1000FX or 100FX (w/8 PoE at/af injectors) with M12-connctor unmanaged industrial switches for IP67 or IP54 rated protection, which meets the high reliability requirements demanded by industrial rolling stock applications. -
Page 7: Chapter 2 Hardware Description
Chapter 2 Hardware Description In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation. 2.1 Physical Dimension Aluminum case. IP-67, IPES-0208GF 215mm(W)x185mm(H)x91.2mm(D) IES-0208GF 215mm(W)x192.5mm(H)x76.7mm(D) IPES-0208T 215mm(W)x185mm(H)x91.2mm(D) IES-0208T 215mm(W)x185mm(H)x71mm(D) Aluminum case. IP-54, IPES-0208GF 182mm(W)x179mm(H)x91mm(D) IES-0208GF 182mm(W)x179mm(H)x76.5mm(D) IPES-0208T... - Page 8 Port description of IP67-rated switch **The port description of IP54 model is the same as of IP67 one.
-
Page 9: Package Content
2.2 Package Content: Industrial Switch Quick Installation Guide (available since Jan 2017) 2.3 IP Protection The IP Code, Ingress Protection Rating, sometimes also interpreted as International Protection Rating, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water in mechanical casings and with electrical enclosures. - Page 10 not enter in sufficient quantity to interfere with the satisfactory operation of the equipment; complete protection against contact No ingress of dust; complete protection against Dust tight contact Liquid ingress protection The second digit indicates the level of protection that the enclosure provides against harmful ingress of water.
- Page 11 Water jets Water projected by a Test duration: at least nozzle (6.3 mm) against 15 minutes enclosure from any Water volume: 12.5 litres per direction shall have no minute harmful effects. Pressure: 30 kPa at distance of 3 m Powerful Water projected in powerful Test duration: at least water jets...
-
Page 12: Led Indicators
it produces no harmful effects. — Powerful Protected against close- high range high pressure, high temperature temperature spray downs. water jets 2.4 LED Indicators The diagnostic LEDs that provide real-time information of system and optional status are located on the front panel of the industrial switch. The following table provides the description of the LED status and their meanings for the switch. -
Page 13: Chapter 3 Hardware Installation
3.1.2 Mount the switch on desired position. For the best ventilation, it is suggested to mount the switch on metallic surface. 3.1.3 Connect the M23/M12 connector of power input. The PoE power supply for IPES-0208 series is connected via a 5-pole M23 female connector. Voltage of Power Input... - Page 14 The power input voltage can be from 9.5V to 56VDC to feed power on both the 802.3af and 802.3at standardized devices. 72V model: The power input voltage can be from 50.4V to 90VDC to feed power on both 802.3af/at standardized devices. 110V model: The power input voltage can be from 43V to 137.5VDC to feed power on...
- Page 15 Pin assignment of Power input Redundant Power Input The power input can be supported redundantly. The supply voltage is electrically isolated from the housing. Note: With single power supply of the mains voltage, the device will report a power failure. Pin assignment of alarm relay A break in contact is reported via the relay contact : ...
- Page 16 Ground screw of I(P)ES-0208 switch 3.1.5 Connect the M12 connector with RJ-45 data cable, ports are not used shall be caped that comes with the package to insulate the surrounding.
- Page 17 Pin assignment of M12 10/100Tx network connector Pin assignment of M12 10/100/1000T network connector...
- Page 18 Note: The protection class IP67/IP54 is only achieved when bolted together. The other components attaching to the system have to meet with the IP67/IP54 protection class in order to reach the whole system IP67/IP54 protection. Empty ports must be sealed with the protective caps supplied.
