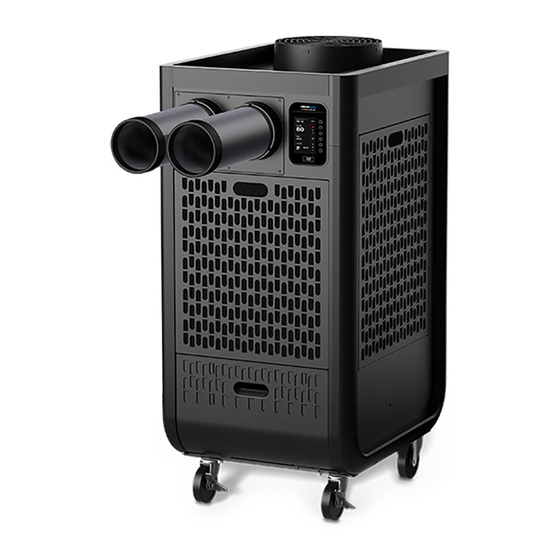

Accessory Installation Manual
G
E
No.

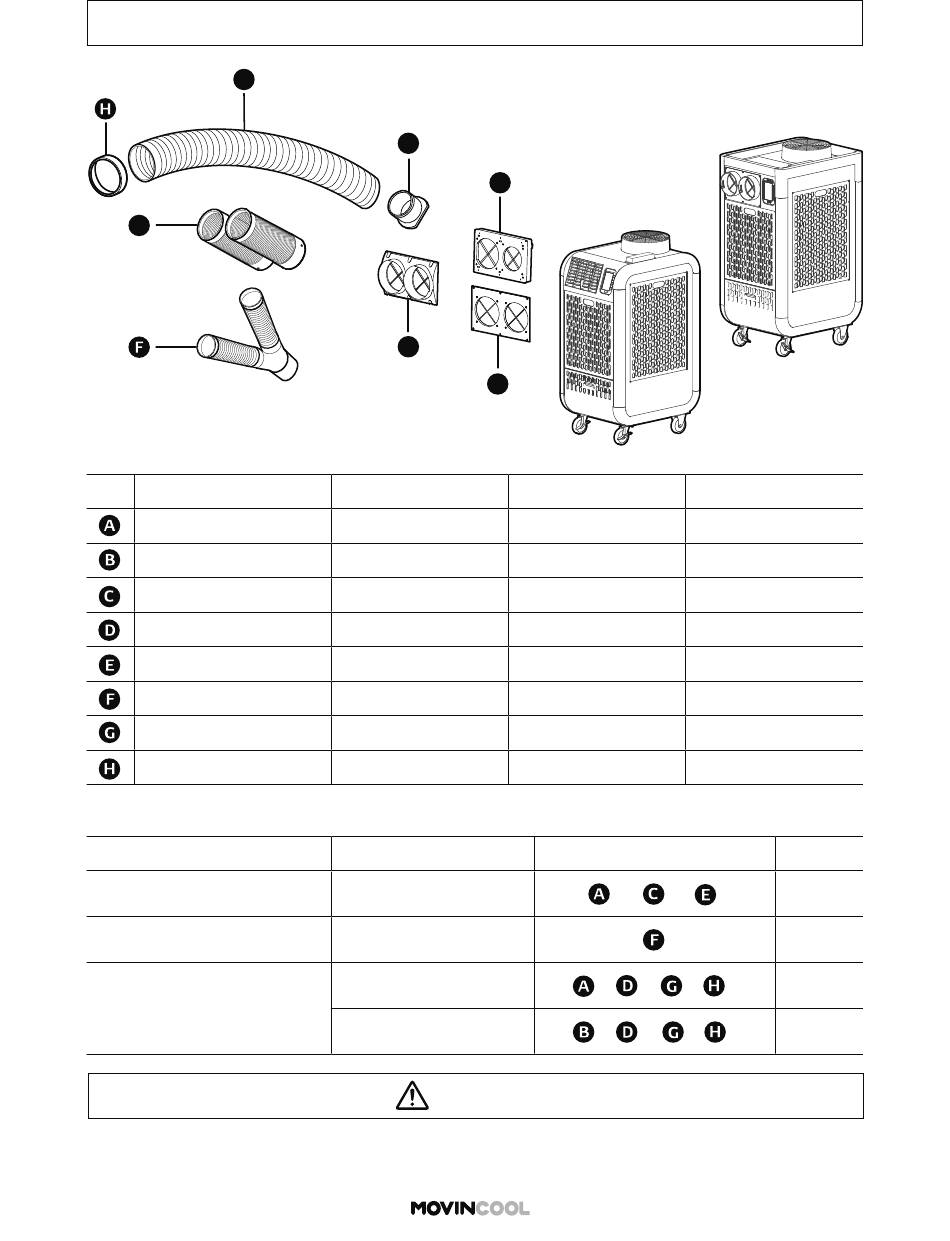

Part Name
Nozzle Adapter Kit
Nozzle Adapter Kit
Cold Air Flange Kit
Cold Air Flange Kit
Nozzle Kit
Dual Duct
Cold Air Self-supported Duct
Trim Ring
Application
Attachment of Nozzle
Attachment of Dual Duct
Attachment of Cold Air
Self-supported Duct
Disconnect power before installation. Beware that some residual voltage may remain in the unit
after the power is disconnected. There is a risk of electric shock.
D
A
C
B
Climate Pro X14/20/26
Climate Pro K12/18/24
N/A
481769-0310
N/A
481170-0450
N/A
484209-0500
481744-0091
481851-0200
Model Name
Climate Pro K12/18/24
Climate Pro D12/18
Climate Pro X14/20/26
Climate Pro K12/18/24
Climate Pro D12/18
Climate Pro X14/20/26
WARNING
1
Climate Pro D12/18
481769-0280
N/A
481170-0480
481170-0450
484209-0480
484209-0480
N/A
481744-0091
481851-0200
Required Accessories
484007-4970
481769-0280
N/A
481170-0480
481170-0450
N/A
481744-0091
481851-0200
Page No.
2
3
3
4
Advertisement
Related Manuals for Movincool Climate Pro X14
Summary of Contents for Movincool Climate Pro X14
- Page 1 Accessory Installation Manual 484007-4970 Part Name Climate Pro X14/20/26 Climate Pro K12/18/24 Climate Pro D12/18 Nozzle Adapter Kit 481769-0280 481769-0280 Nozzle Adapter Kit 481769-0310 Cold Air Flange Kit 481170-0480 481170-0480 Cold Air Flange Kit 481170-0450 481170-0450 481170-0450 Nozzle Kit 484209-0480...
- Page 2 ATTACHMENT OF NOZZLE: Climate Pro K12/K18/K24/D12/D18 Nozzle Adapter Kit Cold Air Flange Kit Nozzle Flange Frame Screw (6) Adapter Screw (6) Prior to installation, separate the frame and adapter by removing the screws. 1. Remove the louver from the upper front panel by pressing on either of the lock tabs 2.
- Page 3 ATTACHMENT OF DUAL DUCT: Climate Pro X14/X20/X26 Align the pin A with the attachment notch of the flange. Insert Attachment Notch the nozzle into the flange and rotate clockwise until pin B is Pin A aligned with the attachment notch.
- Page 4 ATTACHMENT OF COLD AIR SELF-SUPPORTED DUCT: Climate Pro X14/ X20/X26 Nozzle Apapter Kit Cold Air Flange Kit Cold Air Self-supported Duct Trim Ring Flange Metal Adapter Clamp Screw (6) Screw (4) 1. Take out the six (6) screws and remove the nozzle adapter.
