- Page 1 OPERATION MANUAL OFFICE PRO 63 Unit Serial Number Range: 0711XXXX630 to Present (From July 2011 to Present) READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE AND READ ALL SAFEGUARDS SECCIÓN EN ESPAÑOL SECTION EN FRANÇAIS AVAILABLE AT WWW.MOVINCOOL.COM...
-
Page 2: Serial Number Location And Identification
All rights reserved. This book may not be reproduced or copied, in whole or in part, without the written permission of the publisher. DENSO PRODUCTS AND SERVICES AMERICAS, INC. reserves the right to make changes without prior notice. MovinCool®, Office Pro®, and SpotCool® are registered trademarks of DENSO Corporation. - Page 3 OPERATION MANUAL OFFICE PRO 63...
-
Page 4: Table Of Contents
Table of Contents SERIAL NUMBER LOCATION AND IDENTIFICATION........2 FOREWORD....................... 5 Definition of Terms....................5 GENERAL WARNINGS & CAUTIONS .............. 6 INVENTORY ....................... 7 INSTALLATION....................8 Choosing an Installation Site ................8 Moving the Unit ....................9 Plugging in the Unit ..................10 Warning Signal Connection ................11 Fire Alarm Control Panel Connection ............12 FEATURES....................... -
Page 5: Foreword

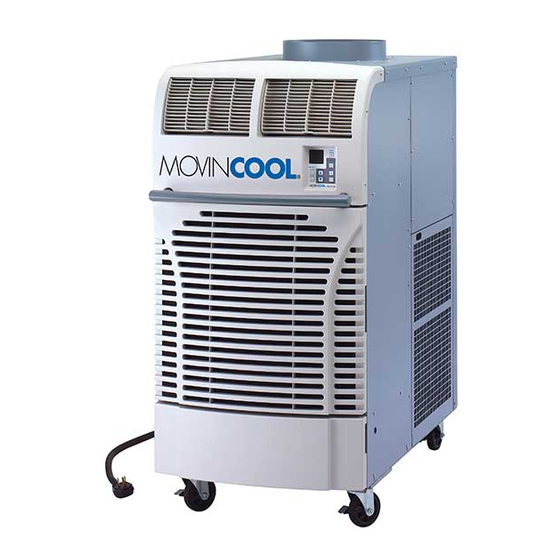

FOREWORD Congratulations on purchasing the MovinCool portable air conditioner. This manual explains how to assemble, install and operate the MovinCool Office Pro 63 portable air conditioning unit. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation. -
Page 6: General Warnings & Cautions
All electrical components replaced must be genuine MovinCool parts, purchased from an authorized dealer. • The power source for this unit should be a dedicated single outlet circuit with UL recognized short-circuit and ground fault protective breaker. -
Page 7: Inventory
INVENTORY After unpacking your MovinCool unit, please check to make sure you have the following items: 1. Office Pro 63 MovinCool Unit (1) 2. Operation Manual / Product Registration (1) Note: If any of these items were not included in the box or appear damaged, please contact your MovinCool reseller for replacement. -
Page 8: Installation
*1: Approximate weight of the unit when the drain tanks are full of water. 7. Allow 24 inches (610mm) of unobstructed airflow for both the air inlets and outlets. 8. Do not use the Office Pro 63 unit at condition above 106°F (41°C) 50% RH. -
Page 9: Moving The Unit
INSTALLATION (cont.) Moving the Unit Unlock all 4 casters and push the MovinCool unit, using the front or rear handles, to a flat, level surface and set the casters back to the LOCKED position. Rear Handle Front Handle Office Pro 63 Unit... -
Page 10: Plugging In The Unit
1. Make sure the power supply outlet is free of dirt, dust, oil, water, or any other foreign matter. 2. The Office Pro 63 is equipped with an approved NEMA plug configuration (L16- 20). The appropriate outlet must be used for this plug type. -
Page 11: Warning Signal Connection
INSTALLATION (cont.) Warning Signal Connection (Output Signal Terminal L+ and L-) The controller is equipped with a warning signal output relay type (Form C, normal open dry contact) which can be used to monitor the failure condition. Relay contactor (not connector) is closed when the following condition has occurred: a. -
Page 12: Fire Alarm Control Panel Connection
INSTALLATION (cont.) Fire Alarm Control Panel Connection (Input Signal Terminal E+ and E-) The controller is equipped with a normal open input signal, which can be connected directly from the fire alarm control panel. When receiving the signal from the fire alarm control panel, the unit turns off and does not turn back on until it has been RESET. -
Page 13: Features
FEATURES For all models: 1. A digital electronic control panel, which allows the user to control the unit’s operation easily. 2. Dual fan speeds (either HIGH or LOW) in both COOL and FAN ONLY modes. 3. Digital LCD display with blue backlight that indicates: a. -
Page 14: Operation
OPERATION Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. 1. COOL Mode Button Activates/deactivates the COOL mode/turns the unit off. 2. FAN Mode Button Activates/deactivates the high, low, and off fan speed. -
Page 15: Lcd Indicators
OPERATION (cont.) Control Panel (cont.) LCD Indicators 9. MO...SU Illuminates to indicate selected day of the week. 10. °C or °F Temperature displayed in either Fahrenheit or Celsius (see Note). 11. AM/PM Illuminates to indicate AM or PM time of day. 12. -
Page 16: Set Clock
OPERATION (cont.) Set Clock Prior to operating the Office Pro 63 users should set the clock of the controller to the correct time as shown in the steps below. 1. Press and hold the SET CLOCK button for 3 seconds or until beep. -
Page 17: Operating In Fan Only Mode
OPERATION (cont.) Operating in FAN ONLY Mode 1. The unit can also be operated in FAN ONLY mode by pressing FAN HI/LO button (LCD indicates “FAN HI/LO” and “COOL OFF”). 2. The unit can then be turned off by pressing the FAN HI/LO button until fan turns off (FAN ONLY mode speed sequences are HI→LO→OFF). -
Page 18: How To Set A Program
OPERATION (cont.) How to Set a Program SET START TIME 1. Press and hold the SET PROG button for 3 seconds or until beep. 2. Press SET TEMP buttons to select day of the week. 3. Press ENTER button. Step 1 & 18 4. -
Page 19: How To View And Delete Program
OPERATION (cont.) How to View and Delete Program 1. Press and hold the SET PROG button for 3 seconds or until beep. 2. To view edited program - While pressing and holding the SET PROG button, press SET TEMP buttons ( ) to scroll the program sequence. -
Page 20: Operating Modes
OPERATION (cont.) Operating Modes Office Pro 63 operates in 2 modes, FAN ONLY and COOL. When in FAN ONLY mode, the unit circulates the surrounding air, Office Pro 63 is equipped with an automatic fan speed control when operating in FAN ONLY mode. When in COOL mode, the compressor is operated and cool air is circulated. -
Page 21: Self-Diagnostic Codes
The unit returns to the normal operation after the problem is fixed and the controller is RESET. To RESET: Press FAN HI/LO and COOL ON/OFF buttons simultaneously for 5 seconds. Contact your MovinCool reseller or a qualified technician if problem persists. -
Page 22: Emptying The Drain Tank (If Equipped)
COOL ON/OFF button to turn the unit off. <Office Pro 63> ILL01034-00 1. Open the drain tank door of Office Pro 63. 2. Pull the drain tank from the unit, display indicates “TANK” and alarm signal output stays ON. 3. Remove the cap and empty the drain tank. -
Page 23: Drain Pump
OPERATION (cont.) Drain Pump A drain pump is included for the Office Pro 63. A drain pump provides a continuous operation and eliminates the need for a drain tank. 1. When the water collects to level (A) in the pump reservoir, the drain pump begins to operate and discharge the water. -
Page 24: Hose Installation
HOSE INSTALLATION The Office Pro 63 is supplied with a 20-foot (6m) hose. Connect the 20-foot (6m) hose to the drain stem and feed it through the grommet on the right hand side of the unit. Drain Stem Drain Hose... -
Page 25: Inspection & Maintenance
PROGRAM RUN button. 2. Remove the two air filters. Note: To remove the filters from the Office Pro 63, open the front panel and side panel filter doors. On the side panel door, carefully remove the filter element from wire frame attachment points. -
Page 26: Seasonal Maintenance
2. Check the power cord. If dirty, wipe off with a clean dry cloth. If damage or excess play is found, contact your MovinCool dealer for replacement. 3. Check the air filters and clean if dirty. If damage is found, replace it. -
Page 27: Troubleshooting
TROUBLESHOOTING Check the following items before calling your MovinCool reseller or a qualified technician. CONDITION POSSIBLE CAUSE REMEDY 1. Ground fault breaker trip or Reset breaker or reset power Unit does not operate. LCDI power cord trip. cord. 2. Drain tank is full. -
Page 28: Technical Specificatons
TECHNICAL SPECIFICATONS ITEMS/FEATURES Office Pro 63 Rating Conditions Dry bulb 95°F(35°C) Wet bulb 83°F(28.2°C) Humidity (60%) Specifications Power frequency 60Hz Line voltage 3 Phase 460V Power consumption 6.6kw Current consumption 9.5A Power factor Starting current Power wiring 12(4-core)AWG Cooling Unit... - Page 29 TECHNICAL SPECIFICATONS (cont.) ITEMS/FEATURES Office Pro 63 Operating Conditions Inlet air: Maximum 106°F(41°C), 50%RH Minimum 65°F(18.3°C), 50%RH Control Device Temperature control Include Programmable timer Include Two speed fan Include • Specifications are subject to change without notice.
- Page 30 Office Pro 63 Warranty: 3 Years with warranty registration OR 1 Year for unregistered units. DENSO shall, at its sole discretion, repair or replace any defective product covered by this warranty.
- Page 31 P/N: 484007-3603EN Fourth Issue: April 2017...
