Leckey Easyseat User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Easyseat
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easyseat and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leckey Easyseat

Summary of Contents for Leckey Easyseat

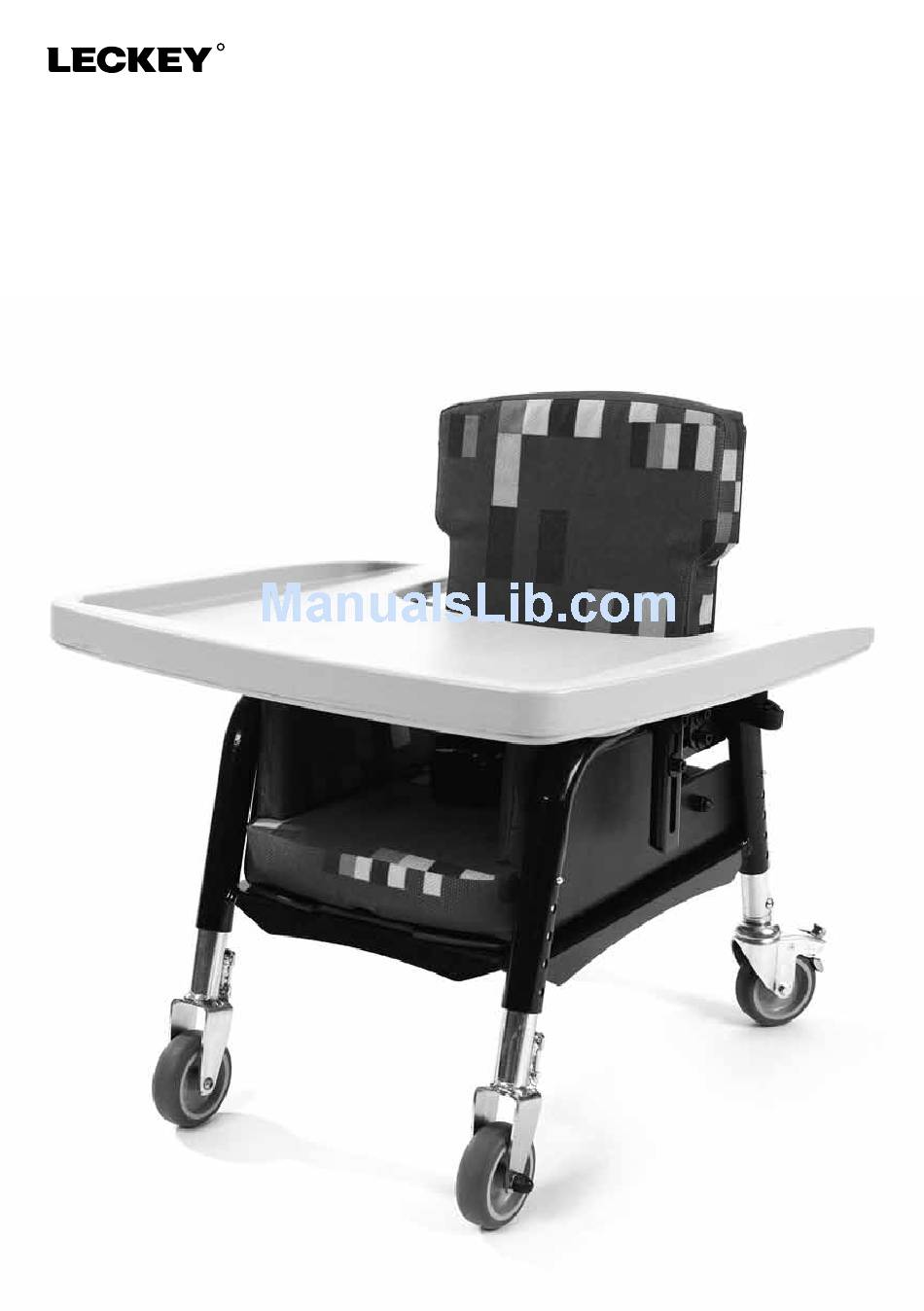

  • Page 1 Easyseat USER MANUAL...

  • Page 3: Table Of Contents

    The Leckey Easy Seat has been designed to provide an attractive seating solution without compromising the positional needs of the less involved child. This manual shows you how you can quickly safely and easily make use of all of the functions. The instructions on the safety...

  • Page 4: Intended Use

    (also see general terms of sale, delivery and payment). A two year warranty is provided on all Leckey manufactured products and components. 4 Product History Record Your Leckey product is a classified as a...

  • Page 5: Safety Information

    6.4 If in any doubt to the continued safe at all times. use of your Leckey product or if any parts should fail, please cease using the product and contact our customer 6.11 Leckey products comply with...
  • Page 6 6.14 The product is designed for indoor use and when not in use should be stored in a dry place that is not subjected to extremes of temperature. The safe operating temperature range of the product is +5 to +40 deg Celsius.
  • Page 7 How to unpack and assemble Congratulations on purchasing your Easy Seat/Potty Trainer. Your Easy Seat/Potty Trainer will be boxed and wrapped in a bubble wrap packaging on receipt. You should firstly ensure that you remove all the parts from the box and then unwrap them in preparation for assembly.
  • Page 8 7.1 Attaching the legs 7.2 Attaching the Backrest To slot your choice of legs into position, To mount the backrest to the seat you it is important that you identify the left and should firstly remove the two allen bolts and right hand side of the legs supplied.
  • Page 9 7.4 Tray Attachment 7.3 Attaching the footplate To attach the footplate to the seat you To attach the tray to the seat, firstly place will need to use the four allen bolts and the tray onto the armrests and then turn the four washers supplied.
  • Page 10 7.5 Attaching the flexible 7.6 Attaching the lateral supports pommel The flexible lateral supports are attached by The pommel is attached to the seat by an using the allen bolts supplied and securing allen bolt (a) or knob which is located under these into the sliders in the back of the seat.
  • Page 11 The Easy Seat can be converted to the If the push handle has been specified at the Leckey Potty Trainer by simply lifting and time of order a bracket will be attached. removing the seat base and replacing it If the push handle is ordered separately, with the potty insert.
  • Page 12 7.9 Attaching the 7.10 Attaching the headrest headrest laterals If the headrest has been specified at the The headrest laterals are attached to the time of order a bracket will be attached. back of the headrest using the allen bolts If the headrest is ordered separately, then supplied, secure these into the sliders on the bracket should be attached to the back...

  • Page 13: Clinical Setup For Postural Management

    The clinical setup of the product should be completed by a technically and clinically competent person who has been trained in the use of the product. Leckey recommend a written record is maintained of all clinical setups for this product.
  • Page 14 8.1 Seat Depth and 8.2 Backrest Height Backrest Angle Adjustment Adjustment The seat depth adjustment allows for The overall height of the backrest can be growth and also allows for exact femoral adjusted by loosening the two sets of allen support.
  • Page 15 8.3 Footplate 8.4 Flexible Lateral Supports The footplate can be height adjusted To adjust the flexible lateral supports in for varying lower leg lengths and also to height and width, loosen the allen bolts (a), aid manoeuvrability. To height adjust the select the most appropriate position for footplate, the four allen bolts (a) should be your child and then re-tighten the allen bolts...
  • Page 16 8.5 Adjusting the pommel The depth of the pommel can be adjusted by loosening the bolt/knob, positioning and then re-tightening.

  • Page 17: Frequent Adjustments For Daily Use

    Section 6 by a technically and clinically competent person who has been trained in the use of the product. Leckey recommend that a written record is maintained of all parent and carers who have been trained in the use...
  • Page 18 9.1 Transferring your 9.2 Adjusting the Lap child into and out of the strap seat Before transferring the child into the seat The lap strap is fastened by inserting the carry out the daily product inspection as plastic clip (a) into the receiver then adjust outlined in section 9 of this user manual.
  • Page 19 9.3 Height Adjustment of 9.4 Side Pad Seat Adjustment The seat can be adjusted to the required The side pads can be adjusted simply by height to accommodate lower leg length, re-positioning using the attached Velcro to allow for self-transfer or to allow the seat strips.
  • Page 20 9.5 Height Adjustment of 9.6 Tray depth Armrests and Tray adjustment The height of the armrests and subsequently Place the tray onto the armrests, the tray can be adjusted by loosening slide forward to the required depth then the allen bolts (a) on the armrest bracket, turn the handles (a) under the tray to lock adjusting to the required height and it in position.
  • Page 21 9.7 Adjusting the headrest To adjust the height of the headrest loosen the allen bolt (a), position as required and then re-tighten. To adjust the depth, loosen the allen bolt (b), position as required and then re-tighten. Finer angle positioning of the head support can be attained by loosening the three allen bolts (c) making the adjustments and re-tightening.

  • Page 22: Cleaning & Care Information

    10 Cleaning & Care Information How to Maintain Metal, Wooden and plastic components When cleaning we recommend that you 1. Soap and water or antibacterial spray can use only warm water and a non-abrasive be used for daily cleaning. detergent. Never use organic solvents or dry cleaning fluids.

  • Page 23: Daily Product Inspection

    4. Ensure the footplate is attached securely. If in any doubt to the continued safe use of your Leckey product or if any parts should fail, please cease using the product and contact our customer service department or your local dealer...

  • Page 24: Annual Product Inspection

    Paying particular attention to the following items; 5. Leckey recommend that a written record is maintained of all annual product inspections. - Headsupport locking bolts - Backrest height and angle...

  • Page 25: Reissuing Leckey Products

    In the UK & ROI please contact the Leckey has ensured that the product being Service Centre on UK 0800 318265 or ROI re-issued contains no modifications or 1800 626020 and our customer service special attachments.

  • Page 26: Technical Information

    Flat High Back Footplate with Sandal Straps LES/#/N Grab/Suspension Rail LES/#/I Grab Posts LES/#/P Push Handle LES/#/Q Seat Pad for Leckey LES/#/R-* Potty Seat Potty Seat for Leckey LES/#/S Easy Seat * Please specify fabric colour at time of order.
  • Page 27 16 Technical data Product sizing Size 1 - 3 2 - 5 3 - 8 5 - 10 Codes LES/1 LES/2 LES/3 LES/4 LPT/1 LPT/2 LPT/3 LPT/4 inches inches inches inches Length Width Weight of Product 12kg 15kg 20kg 22kg User Standing Height 1000 1150...
