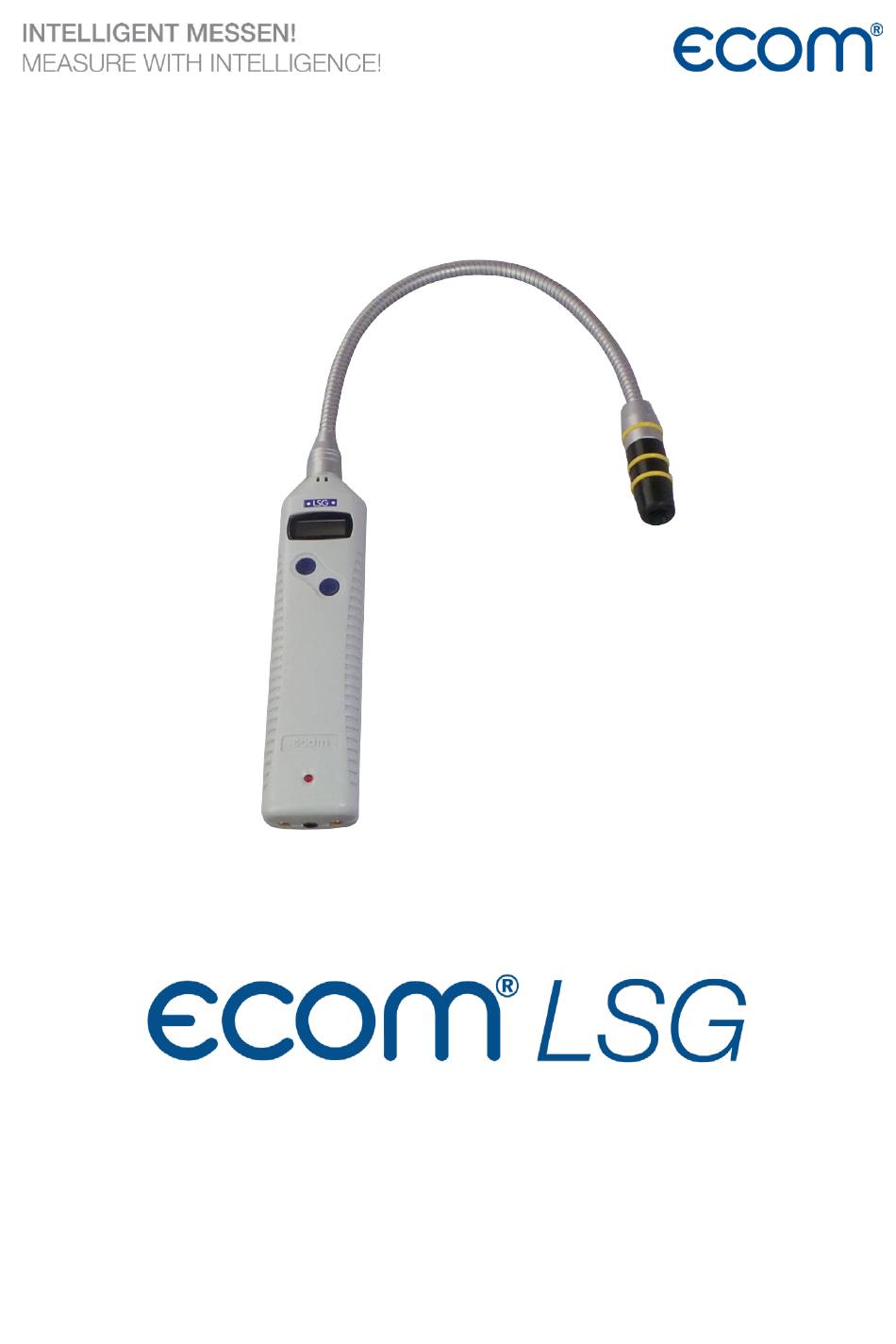

- Page 1 English OPERATION MANUAL Version ecom-LSG Status Nov. 2020...
-
Page 2: Intended Use
Intended Use The ecom-LSG is developed for the detection of leaks in gas installations. The unit shows existing gas concentration on the display and warns by means of an optical and acoustic signal. The sensitivity of the sensor can be adjusted so that even small leaks can be detected. The sensor head is connected to a movable flexible tube, so that even parts of the installation which are difficult to access can be reached. -
Page 3: General Safety Instructions
Substances such as silicones, halogenated hydrocarbons, lead tetra- ethyl, sulphur compounds and organic phosphorus compounds lead to partially irreversible sensitivity losses. Avoid contact with such substances. NOTICE Do not switch on ecom-LSG in air containing gas, as this will lead to inaccurate measured values! -
Page 4: Device Description
Device Description Flexible Tube Display On/Off Sensor Head HOLD Key Initiation Switch on the device. NOTICE Hold the On/Off key down until you hear a signal. Wait for the heating-up phase. 3-fold beeps indicate operational readiness. Display shows the gas concentration as a bar chart. NOTICE 1 Bar = no concentration... -
Page 5: Leak Detection
Avoid contact with such substances. Slowly move the sensor head past the gas installation to be tested. As soon as the ecom-LSG approaches a leak, the measured value display reacts. NOTICE If the first switching threshold is exceeded, the red LED flashes and an acoustic signal sounds. - Page 6 Switch-off • Press and hold the ON/OFF key until no more bars are visible on the display. Settings Sensitivity With the machine switched on, press the On/Off key. Press the HOLD key. • Small bars = low sensitivity • Middle bars = medium sensitivity •...
-
Page 7: Power Supply
Power Supply The two 1.5 V AAA batteries must be replaced when a grey battery symbol appears in the top left-hand corner of the display. The remaining capacity is 1 hour. If the voltage drops further, the battery symbol turns black and the unit switches off automatically. -
Page 8: Changing The Sensor
Changing the Sensor NOTICE Switch off the device before replacing the sensor! Screw on the sensor head. Pull off sensor element. Install new sensor element. Screw on the sensor head. Technical Data Display Range up to 0.5 % methane Response Time <... - Page 9 Bar 14 • A gas concentration was present during (calibration incorrect) zero calibration. • Too little difference between zero and 1000ppm calibration • Sensor defective Bar 11 (sensor head) • No sensor head available • Sensor heating element defective...
-
Page 10: Maintenance
Maintenance To ensure the accuracy of your measuring device, we recommend an annu- al inspection by an authorised ecom partner. In case of heavy use, shorter inspection intervals should be chosen – please contact your ecom partner. Disposal • Dispose of used batteries at the designated collection points. - Page 11 Consumables/Spare Parts NOTICE You can find consumables or spare parts in our webshop at www.shop.ecom.de.
- Page 12 GmbH Am Großen Teich 2 D-58640 Iserlohn info@ecom.de www.ecom.de Phone: +49 2371 945-5 Fax: +49 2371 40305...
