TCL TRF-460WEXDA+ Service Manual page 19

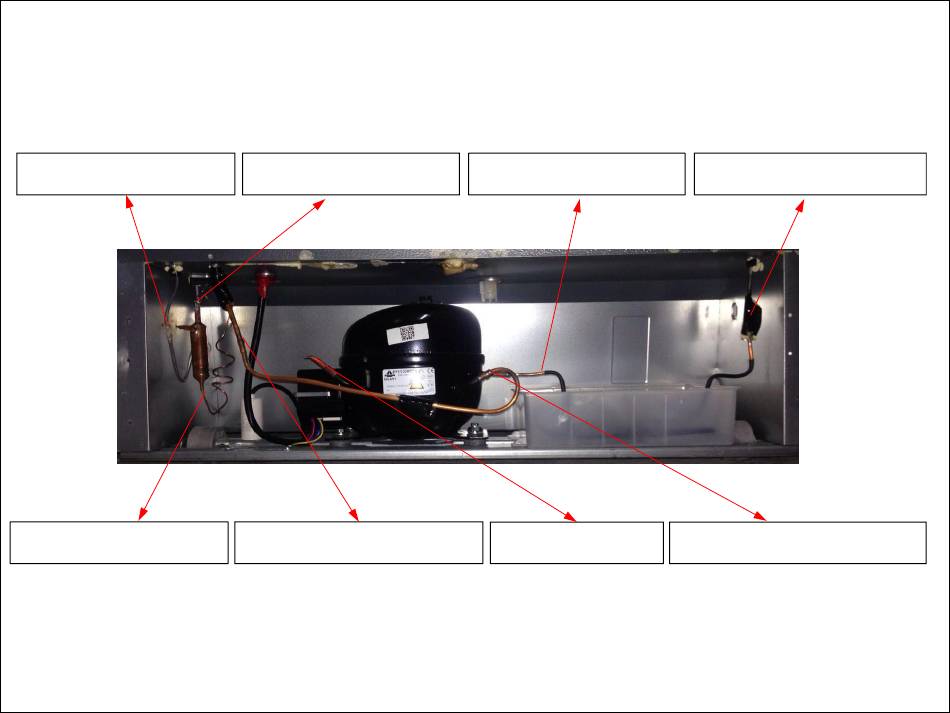

Schematic diagram of compressor compartment pipeline
Condenser outlet and dew-
proof pipe inlet (steel-steel)
Filter drier outlet and capillary
tube inlet (copper-copper)
Drier-filter outlet and capillary
tube inlet (steel-copper)
Return pipe outlet and return
transition pipe inlet (copper-copper)
Exhaust pipe and evaporation
coil inlet (copper-copper)
Process pipe connection
(copper-copper)
Evaporation coil outlet and
condenser inlet (copper-steel)
Outlet of return pipe and inlet of
return transition pipe (copper-copper)
