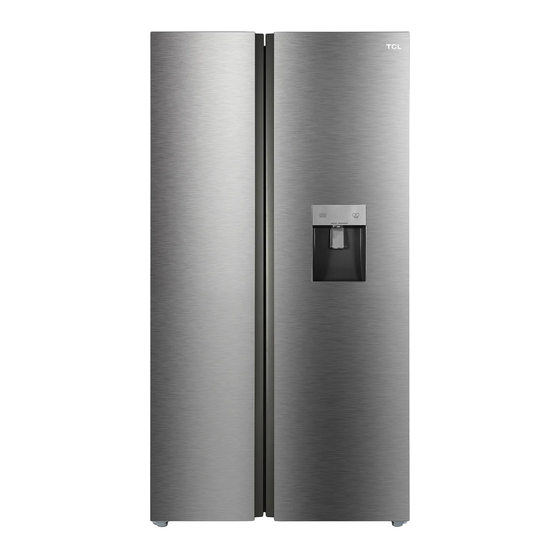

Air-cooled & Frost-free Household Refrigerator
Operating Instructions
P520SBN
TCL Home Appliances (Hefei) Co., Ltd.
Address: No. 10 Yunhu Road, Economic Development Zone,
Hefei City, Anhui Province,China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TCL P520SBN
Summary of Contents for TCL P520SBN

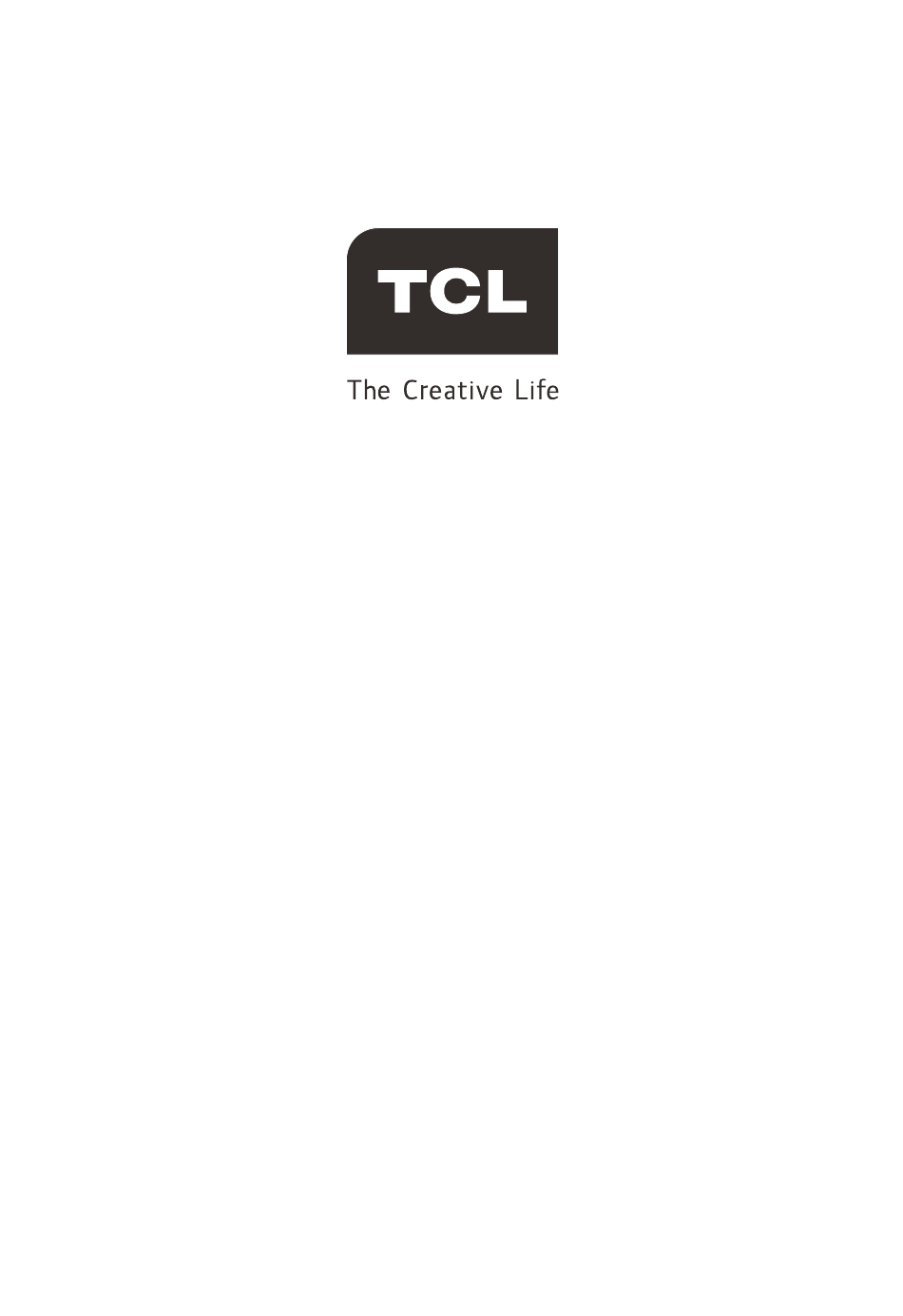

- Page 1 ■Please carefully read the operation instructions before power on, and keep it properly. ■The products may subject to changes without notice. Air-cooled & Frost-free Household Refrigerator Operating Instructions P520SBN TCL Home Appliances (Hefei) Co., Ltd. Address: No. 10 Yunhu Road, Economic Development Zone, Hefei City, Anhui Province,China...
-
Page 3: Table Of Contents
Contents Thank you for buying TCL refrigerator. We hereby express our thanks. Welcome to use TCL refrigerator. We will do our best to provide you with quality service. Safety instructions ------------------------------------------------------------------------ Product introduction ---------------------------------------------------------------------- Handling and placement ----------------------------------------------------------------- Preparations prior to use ----------------------------------------------------------------... -
Page 4: Safety Instructions
Safety instructions 1.Warning Warning : No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation. Warning : It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer. Warning : Never damage the refrigerating circuit. - Page 5 Safety instructions Warning fi fl mmable materials Risk of re / Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged. Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Page 6 Safety instructions Cautions: The refrigerator must not be used in the rain or under the sunshine. Cautions: It is forbidden to place the container with fluid on the refrigerator because the breakage or turnover of the container may a fect the electrical insulation of refrigerator and result in electric shock or fire.
-
Page 7: Product Introduction
Product introduction Refrigerator air duct Refrigerating chamber door Freezer chamber door Two-star area Water storage box Freezer bottle holder Refrigerator bottle holder Upper refrigerator glass shelf Upper freezer glass shelf Lower freezer glass shelf Lower refrigerator glass shelf Lower refrigerator drawer Lower freezer drawer The pictures are for reference only. -
Page 8: Handling And Placement
Handling and placement Certain space shall be left During handling, the door The refrigerator shall be around the refrigerator, side of the refrigerator shall placed in an environment shown in the figure. not contact with the which is dry, has good handling tools ventilation, far from direct sunshine and heat source. -
Page 9: Preparations Prior To Use
RS520GM2120 >L1+100 >W1+200 >L1+380 >W1+600 Preparations prior to use 1. Remove all packing assemblies such as case fixing tape etc., especially the foam base. 2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water). -
Page 10: Operation Keys
Operation keys Operation and diagram of display board Temperature Temperature Freezing Refrigerating regulation key display chamber Function key chamber Child-lock icon 度 温度上调按键 WATER DISPENSER Quick-cooling mode icon Smart mode icon Quick-freezing mode icon The above is the computer control board of the product... - Page 11 Operation keys First time to electricity The first time to electricity, the cooling room runs at the 5℃ and the freezing room runs at the -18℃ The function of adjusting the temperature manually Temperature adjustment in cooling room(2℃~8℃) " " Under unlock status, long press key for 3 seconds until the icon switches to refrigerator compartment.
- Page 12 Operation keys Intelligent function " " " " Under unlock status, repeatedly press key until the icon flashes. Stop key operation and wait for 5 seconds to enter intelligent function. Manually exit intelligent function through the same operation. " " When the function is on, the refrigerator will automatically monitor the status of all compartments and run efficiently.
-
Page 13: Food Storage
Operation keys Foods storage Refrigerating chamber (2℃~8℃) --The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink. --Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss. --The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing. -
Page 14: Disassembly And Assembly Method Of Accessory
Operation keys Disassembly and assembly method of accessory --Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with di ferent volumes. Pull the shelf outwardly and upwardly in a slight way to take out. -
Page 15: Care And Maintenance
Operation keys -- Water dispenser: The users can take the drinking water through the equipment at any time according to the own needs, - Water taking: When the users want to drink water, they need to press (extrude) the water-taking handle or use the rigid container to press (extrude) the water-taking handle until the water outlet flows the water and after meeting the needs. -
Page 16: Failure Analysis
Failure analysis The following items shall be inspected before occurring failures which require maintenance: Failures:Refrigerator does not work,The refrigeration e fect is poor Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator. - Page 17 Technical prameter Technical parameter Model P520SBN Climate type SN/N/ST/T Electric shock resistance Star sign 544L Total Gross Volume Total Storage Volume 482L Storage Volume of Freezer 156L Storage Volume of two stars Freezer Power type 220-240V〜/50Hz Rated current 1.7A Power consumption 0.89kW•h/24h...
- Page 18 Material number:8B110-000000 Edition:201912-A.1...
