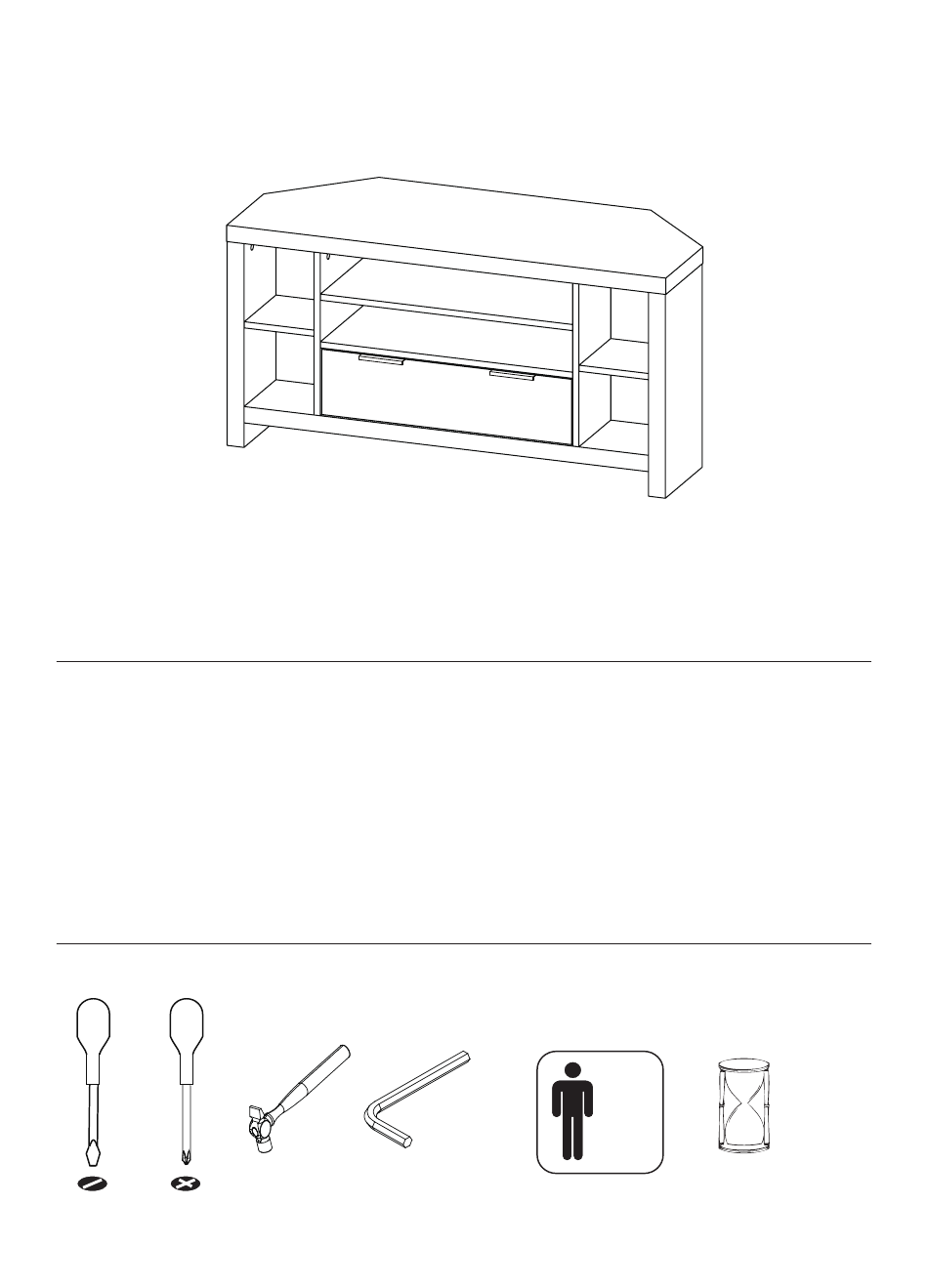

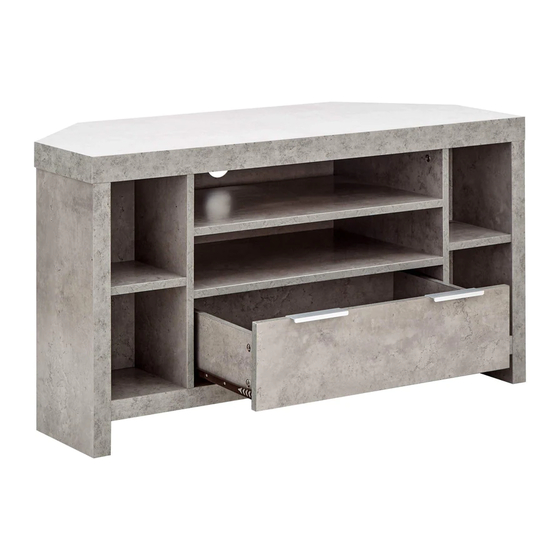

BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS
Thank you for purchasing the Bloc Corner TV Unit.
Please read the instructions carefully to ensure safe operation of this product.
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking.
Size:
104 x 43 x 55 cm (WDH)
Colour:
Concrete
Finish:
Melamine
Tools Required
Version 1 - 210407
PO No :
Page 1 of 14
x1
6644
1.5 Hour
Set Up

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLOC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GFW BLOC

Summary of Contents for GFW BLOC

  • Page 1 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS Thank you for purchasing the Bloc Corner TV Unit. Please read the instructions carefully to ensure safe operation of this product. Size: 104 x 43 x 55 cm (WDH) Colour: Concrete Finish: Melamine PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.

  • Page 2: Care Information

    BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is designed to hold 20Kg in total, spread evenly over the whole of the unit. Do not exceed this weight.
  • Page 3 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS Parts and Fittings Checklist Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from children.

  • Page 4: General Hints & Tips

    BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS All parts are packed in one carton Description: Top Panel Description: LH Side Panel Description: RH Side Panel Qty: 1 Qty: 1 Qty: 1 Size: 1035 x 430 x 50 mm Size: 500 x 230 x 38 mm...
  • Page 5 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS Fittings (to scale) Code Item Quantity Cam Bolt (35mm overall) Cam Lock Dowel (8 x 30mm) Nail for Fitting Back Panel (2 x12mm) Screw for Fitting Runner Back Panel and Handle (3 x12mm) Carcass Screw for...
  • Page 6 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS Fittings (not to scale) Code Item Quantity Outer Drawer Runner - Right Outer Drawer Runner - Left Inner Drawer Runner - Right Inner Drawer Runner - Left STEP 1 For this step: Tools required...
  • Page 7 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS STEP 2 For this step: Tighten Tools required Fittings required B x4 C x4 STEP 3 For this step: Tools required Fittings required A x6 E x2 N x1 Version 1 - 210407 Page 7 of 14...
  • Page 8 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS STEP 4 For this step: Tighten Tools required Fittings required B x4 C x4 STEP 5 For this step: Tools required Fittings required C x4 H x4 Version 1 - 210407 Page 8 of 14...
  • Page 9 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS STEP 6 For this step: Tools required Fittings required A x3 B x4 STEP 7 For this step: Tools required Fittings required A x17 Tighten B x1 Version 1 - 210407 Page 9 of 14...
  • Page 10 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS STEP 8 For this step: Tools required Fittings required Tighten B x4 C x4 STEP 9 For this step: Tools required Fittings required B x7 C x5 Version 1 - 210407 Page 10 of 14...
  • Page 11 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS STEP 10 For this step: Tools required Fittings required B x8 Tighten C x4 K x8 STEP 11 For this step: Tools required Fittings required A x10 B x4 Version 1 - 210407 Page 11 of 14...
  • Page 12 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS STEP 12 For this step: Tools required Fittings required B x6 E x8 K x4 L x2 Q x1 R x1 Version 1 - 210407 Page 12 of 14...
  • Page 13 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS STEP 13 For this step: Tools required Dx10 Fittings required D x10 E x8 STEP 14 For this step: Tools required Fittings required Version 1 - 210407 Page 13 of 14...
  • Page 14 BLOC CORNER TV UNIT ASSEMBLY INSTRUCTIONS Assembly Completed Your Bloc Corner TV Unit is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.
