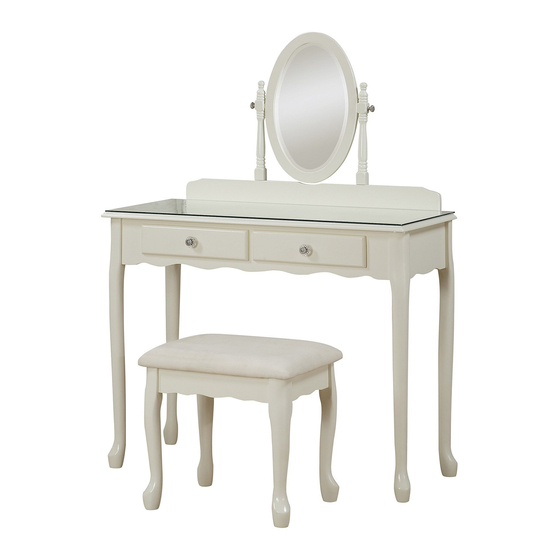

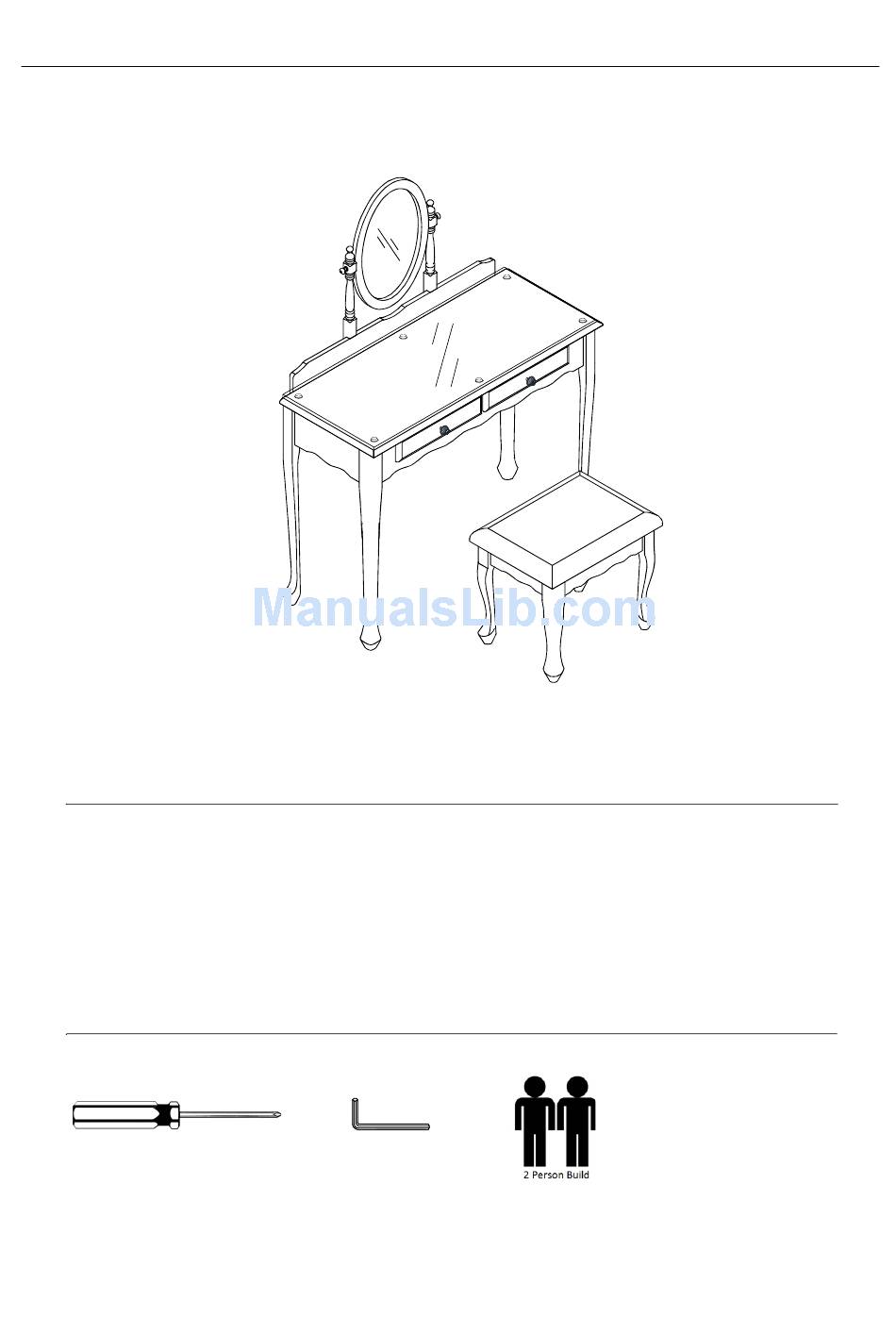

LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS
Thank you for purchasing the LOIRE DRESSING TABLE SET. Please read
the instructions carefully to ensure safe operation of the product.
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of
construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list.
Do not destroy any of the packaging until you are certain that you have all the necessary parts for
the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items
should be kept away from young children whilst assembling your unit to avoid the danger of
choking hazards.
Tools Required
P
l i h
p i l
c S
e r
w
d
v i r
1000 x 440 x 1330 (H)/WHITE
480 x 360 x 430 (H)/WHITE
r e
Allen Key
Batch no: WMI14932
Page 01 of 08
Advertisement
Table of Contents
Related Manuals for GFW LOIRE DRESSING TABLE SET
Summary of Contents for GFW LOIRE DRESSING TABLE SET
-
Page 1: Tools Required
LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS Thank you for purchasing the LOIRE DRESSING TABLE SET. Please read the instructions carefully to ensure safe operation of the product. 1000 x 440 x 1330 (H)/WHITE 480 x 360 x 430 (H)/WHITE PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction. - Page 2 LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION • Due to the size of this product we recommend that it is assembled in the room intended for use. • When you are ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly.
- Page 3 LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS Parts and Fittings Checklist Please check the pack contents before assembling this product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children.
- Page 4 LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS Fittings Item Code Quantity Bolt ( M6 x 45mm ) Bolt ( M6 x 30mm ) Bolt ( M6 x 35mm ) Spring washer ( 1.5mm x 10mm ) Flat Washer ( 2mm x 19mm ) Small flat washer ( 2mm x 12mm )
- Page 5 LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS STEP 1 PARTS REQUIRED 1. Dresser top x 1 2. Dresser leg x 4 A. Bolt x 8 C. Spring washer x 8 D. Flat washer x 8 G. Allen key x 1 STEP 2...
- Page 6 LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS STEP 3 PARTS REQUIRED * Pre-assembled 4. Mirror support x 2 5. Mirror x 1 E. Small flat washer x 2 H. Mirror support screw x 2 I. Screw x 4 G. Allen key x 1...
- Page 7 LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS STEP 5 PARTS REQUIRED L. Wall screw x 1 M. Rawl plug x 1 N. Screw x 1 Phillip Screwdriver x 1 wall Always ensure the area to be drilled is free from hidden electrical wires, water and gas pipes.
- Page 8 LOIRE DRESSING TABLE SET ASSEMBLY INSTRUCTIONS COMPLETED Batch no: WMI14932 Page 08 of 08...
