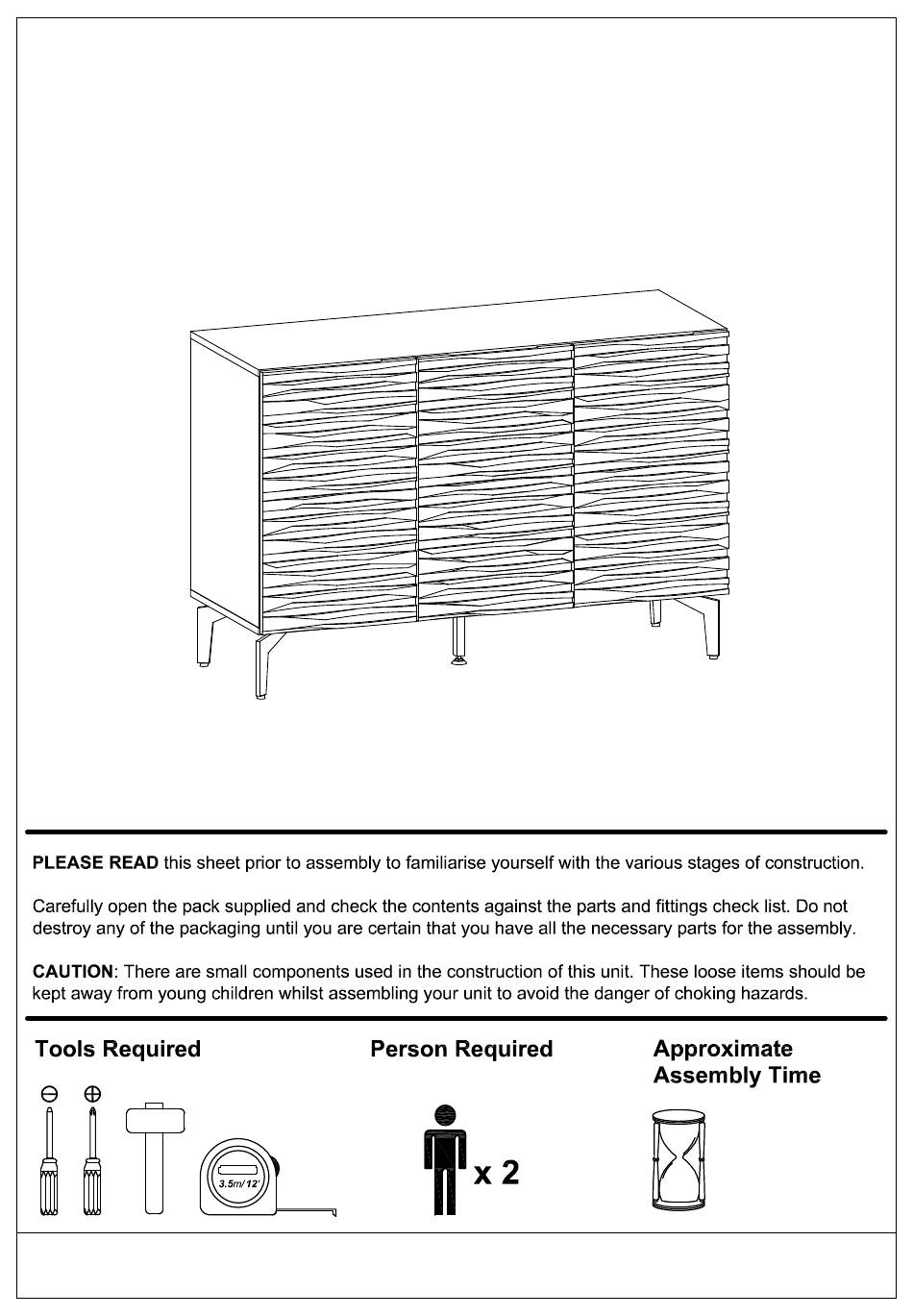

- Page 1 BANTHAM - 3 DOOR SIDEBOARD ASSEMBLY INSTRUCTIONS Thank you for purchasing the 3 DOOR SIDEBOARD Please read the instructions carefully to ensure safe operation of the product. Size: (W)1060 x (D)390 x (H)722mm Minute Batch No : PO# V1 5/24...
- Page 2 This product is intended for a maximum weight of 30kgs and shelf load capacity 5kg each. Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or on a clean floor to prevent it from scratching.
- Page 3 Side Panel (L) (15 x 389 x 542mm) Shelf Panel (15 x 350 x 333mm) Side Panel (R) (15 x 389 x 542mm) Door Panel (L) (18 x 349 x 566mm) Top Panel (15 x 390 x 1060mm) Door Panel (C) (18 x 349 x 566mm) Bottom Panel (15 x 390 x 1060mm) Door Panel (R) (18 x 349 x 566mm) Center Panel (L) (15 x 389 x 542mm)
- Page 4 D6.3 x 40mm D6 x 30mm M5 x 29mm Unitar Screw Wooden Dowel Minifix Bolt M3.1 x 20mm D15 x 12mm M3.5 x 12mm M3.5 x 15mm Minifix Cam Shelf Support Tapping Screw Csk Screw Csk Screw 150mm 5/8” 1/4” Backply Center Leg Mettal Leg...
- Page 5 STEP 1 10 x Parts Required Panel (A) Panel (B) Panel (E ) Panel (F) Panel (H) Page 5 of 13...
-
Page 6: Parts Required
STEP 2 12 x L- Mounting Bracket + + M3.5 x 15mm 1 Sets Parts Required Panel (C) Panel ( ) E Panel ( ) F STEP 3 Parts Required Panel ( I ) Panel ( J ) Panel ( K ) Page 6 of 13... - Page 7 STEP 4 Parts Required Panel (E ) Panel (F) Panel (H) STEP 5 Parts Requi red Parts Required Parts Requi red Parts Required Panel (A) Panel (E) Panel (B) Panel (F) Panel (D) Panel (H) Page 7 of 13...
- Page 8 STEP 6 28 x Parts Requi red Parts Required Panel (D) STEP 7 Parts Requi red Parts Required Panel (Y) Panel (Y1) Page 8 of 13...
- Page 9 STEP 8 Parts Required Panel (C) STEP 9 Page 9 of 13...
- Page 10 STEP 10 Parts Requi red Parts Required Panel (F) Panel (G) STEP 11 12 x 12 x Page 10 of 13...
- Page 11 STEP 12 16 x Lateral adjustment Front-to-Back adjustment Parts Required Panel ( J ) Panel ( K ) Vertical Adjustment STEP 13 Lateral adjustment Front-to-Back adjustment Parts Required Panel ( I ) Vertical Adjustment Page 11 of 13...
- Page 12 STEP 14 FITTING OF L MOUNTING BRACKET hole Hole wall NOTE : The wall fixing plug supplied with this product is suitable for solid and brick walls . For hollow and stud type walls fixing devices Wall Plug + M4 x 38mm suitable for those type of walls must be obtained 1 Sets separately.
- Page 13 Your 3 DOOR SIDEBOARD is now completely assembled Supplied by: GFW THE FURNITURE WAREHOUSE. Waterside Distribution Centre. Waterside Business Park. Johnson Road. Page 13 of 13...
