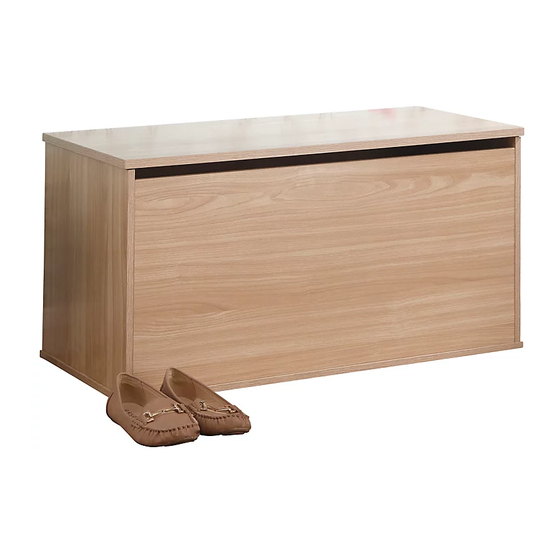

Ottoman storage bench
Hide thumbs Also See for PANAMA:

Advertisement

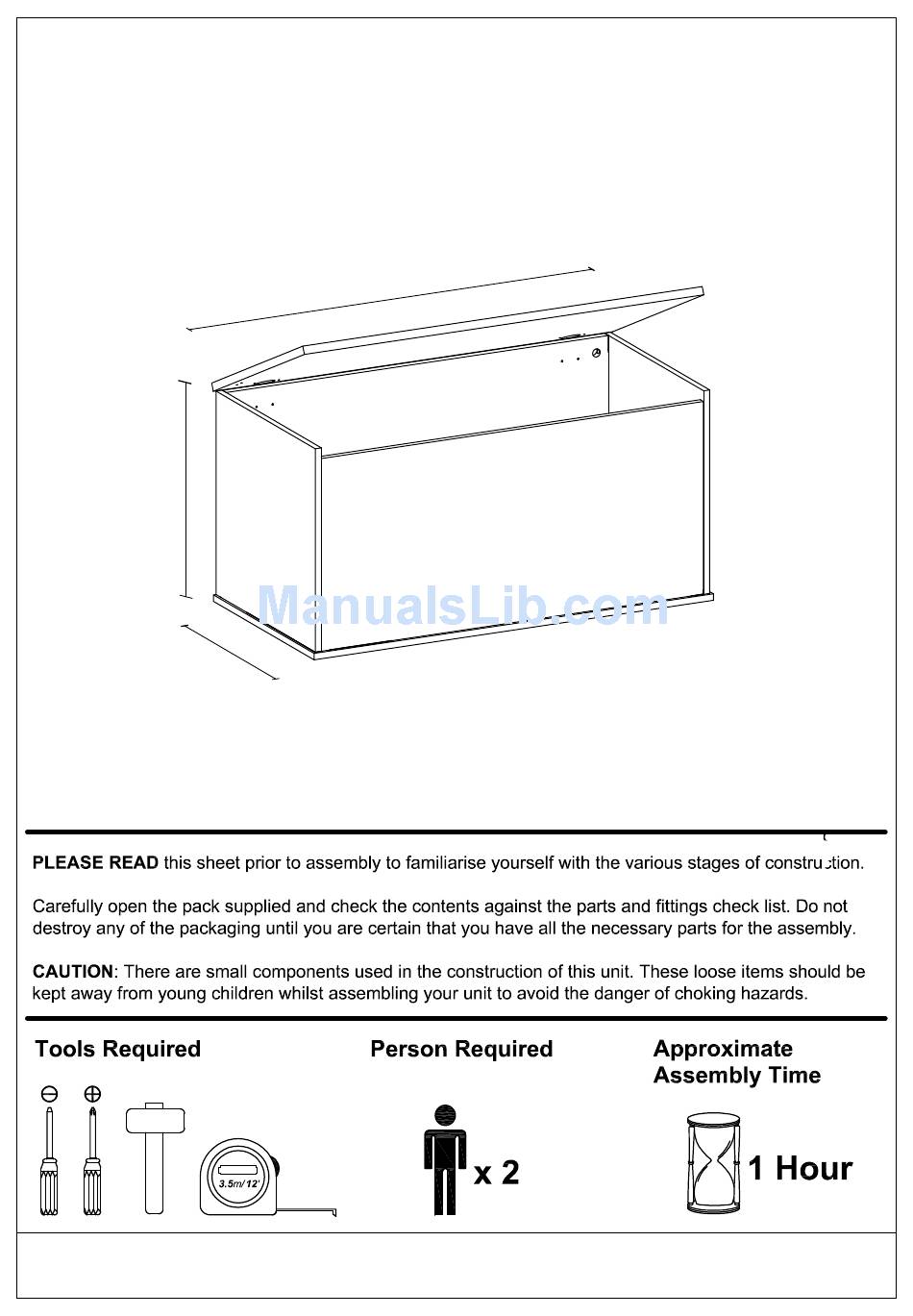

PANAMA - OTTOMAN STORAGE ASSEMBLY INSTRUCTIONS
Thank you for purchasing the OTTOMAN STORAGE.
Please read the instructions carefully to ensure safe operation of the product.
795
405
395
Size : (W)795 x (D)395 x (H)405 mm
Batch No : PO# 2970
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the PANAMA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GFW PANAMA

  • Page 1 PANAMA - OTTOMAN STORAGE ASSEMBLY INSTRUCTIONS Thank you for purchasing the OTTOMAN STORAGE. Please read the instructions carefully to ensure safe operation of the product. Size : (W)795 x (D)395 x (H)405 mm Batch No : PO# 2970 Page 1 of 10...
  • Page 2 This product is intended for maximum storage of capacity of 20 kg Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or not on a clean floor to prevent it from scratching.
  • Page 3 Side Panel (L) (12) x 390 x 378mm) Bottom Panel (12) x 395 x 795mm) Side Panel (R) (12) x 390 x 378mm) Back Panel (15 x 378 x 761mm) Front Panel (12 x 358 x 761mm) Top Panel (15 x 395 x 795mm) Page 3 of 10...
  • Page 4 M4.7 x 38mm M3.5 x 15mm M3.5 x 12mm D6 x 30mm M5 x 29mm CSK Screw Csk Screw Csk Screw Wooden Dowel Minifix Bolt 5 x 8 x 13.5mm D12 x 15mm D9 x 15mm Nail Leg Minifix Cam Minifix Cam 5/8”...
  • Page 5 STEP 1 10 x Parts Required Qty Panel (A) Panel (B) Panel (E ) Panel (F ) Page 5 of 10...
  • Page 6 STEP 2 Parts Required Qty Panel (A) Panel (B) STEP 3 Parts Required Qty Panel (C) Page 6 of 10...
  • Page 7 STEP 4 Parts Required Qty Parts Required Qt Panel (F) Panel (A) Panel (F) Panel (E) Panel (F) Panel (F) STEP 5 Parts Required Qty Parts Required Qt Panel (F) Panel (B) Page 7 of 10...
  • Page 8 STEP 6 10 x Parts Required Qty Parts Required Qt Panel (F) Panel (D) STEP 7 Parts Required Qty Parts Required Qt Panel (F) Panel (C) Page 8 of 10...
  • Page 9 STEP 8 STEP 9 Page 9 of 10...
  • Page 10 Your PANAMA OTTOMAN STORAGE is now completely assembled Page 10 of 10...
