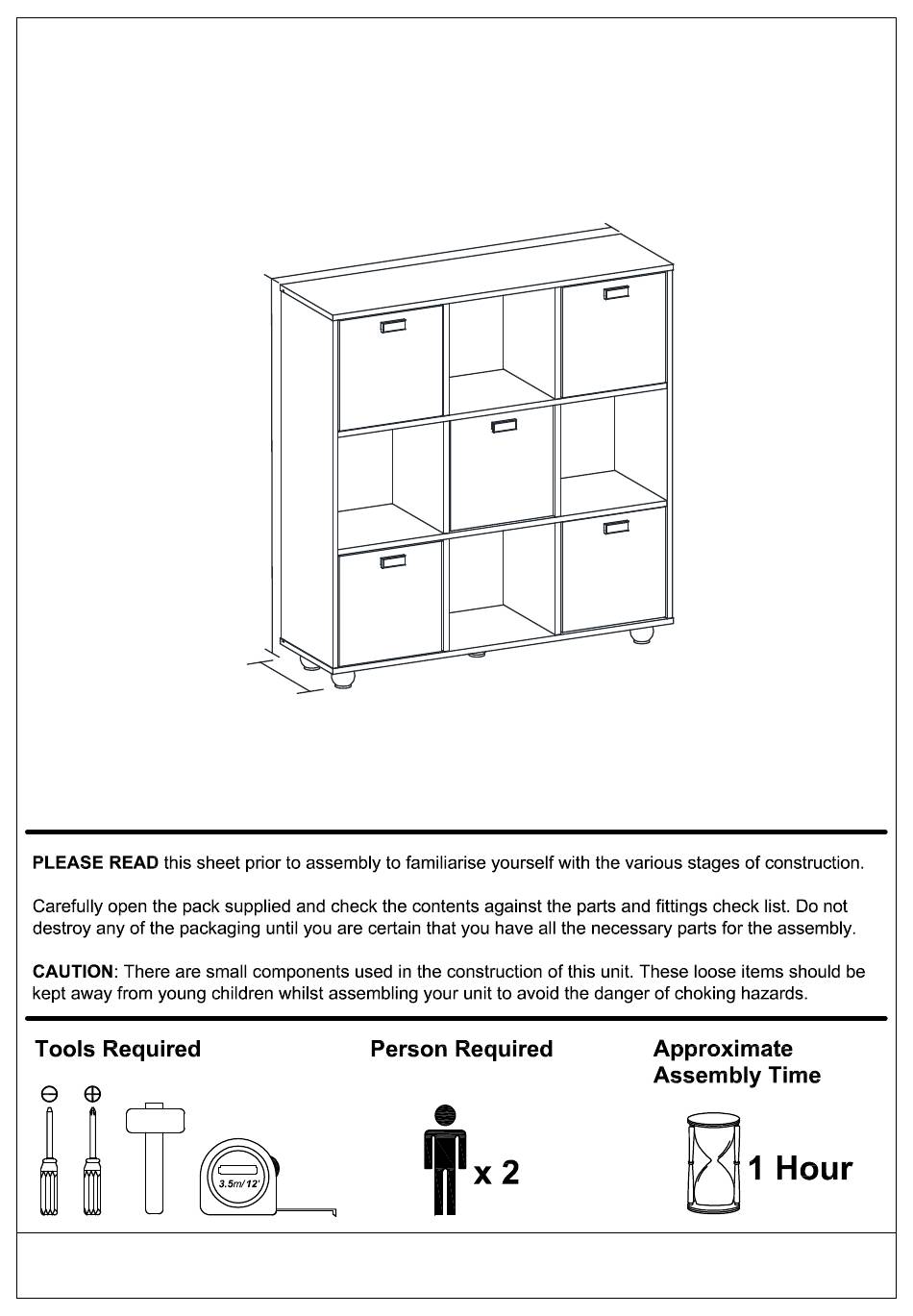

BRISBANE 3X3 CUBE STORAGE ASSEMBLY INSTRUCTIONS
Thank you for purchasing the BRISBANE 3X3 CUBE STORAGE. Please read the
instructions carefully to ensure safe operation of the product.
973
1020
296
Size: (W)973 x (D)296 x (H)1020mm
Colour : Blue / Pink
Batch No : PO# 1069
Page 1 of 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW BRISBANE
Summary of Contents for GFW BRISBANE
- Page 1 BRISBANE 3X3 CUBE STORAGE ASSEMBLY INSTRUCTIONS Thank you for purchasing the BRISBANE 3X3 CUBE STORAGE. Please read the instructions carefully to ensure safe operation of the product. 1020 Size: (W)973 x (D)296 x (H)1020mm Colour : Blue / Pink Batch No : PO# 1069...
- Page 2 • This product is intended for a maximum weight of 20kgs. Do not exceed this weight. • We recommend the use of the wall strap provided for safety reasons. N.B. Wall fixings are not included -please source suitable fixings for your wall type. If in doubt please consult a qualified tradeperson. Warning: Always ensure the area to be drilled is free from hidden electrical wires, water and gas pipes.
- Page 3 Side Panel (L) Vertical Panel - Bottom Side Panel (R) Vertical Panel - Bottom Upper Door (Left) Top Panel Bottom Panel Upper Door (Right) Fix Shelf Centre Door Fix Shelf Bottom Door (Left) Vertical Panel - Top Bottom Door (Right) Vertical Panel - Top Back Panel Vertical Panel - Centre...
- Page 4 D8 x 50mm M6.3 x 40mm D5 x 40mm D8 x 30mm M5 x 29mm Wood Dowel Unitar Screw JCBC Screw Wood Dowel Minifix Bolt M4 x 25mm M3.1 x 20mm D3.5 x 15mm M3 x 12mm D15 x 12mm Handle Screw CSK Screw CSK Screw...
- Page 5 STEP 1 Parts Required Qty Parts Required Qty Panel (F) Panel (A) Parts Required Qty Panel (B) Panel (G) Panel (J) Panel (E) Panel (H) Panel (K) Panel (I) Panel (E1) Page 5 of 13...
- Page 6 STEP 2 16 x Parts Required Qty Panel (A) Panel (B) Panel (C) STEP 3 10 x Parts Required Qty Panel (L) Panel (M) Panel (N) Panel (O) Panel (P) Page 6 of 13...
- Page 7 STEP 4 Parts Required Qty Panel (E) Panel (F) Panel (G) Panel (H) Panel (I) STEP 5 Parts Required Qty Panel (Y) Page 7 of 13...
- Page 8 STEP 6 Parts Required Qty Panel (E1) Panel (J) Panel (K) STEP 7 Parts Required Qty Panel (D) Panel (Y) Page 8 of 13...
- Page 9 STEP 8 Parts Required Qty Panel (A) Panel (B) STEP 9 Parts Required Qty Panel (C) Panel (Y) Page 9 of 13...
- Page 10 STEP 10 10 x Parts Required Qty Parts Required Qty Panel (L) Panel (M) Panel (O) Panel (N) Panel (P) Page 10 of 13...
- Page 11 STEP 11 20 x 20 x Page 11 of 13...
- Page 12 STEP 12 Put the screw in the top panel hole of your furniture Make a hole in the wall and put the wall plug in Put the screw in the wall plug hole NOTE : Wall fixing are not supplied with this product as different devices (such as Rawl plugs on brick Safety strap (L-200mm) work).You must use fixing devices suitable for the...
- Page 13 Your BRISBANE 3X3 CUBE STORAGE is now completely assembled Page 13 of 13...
