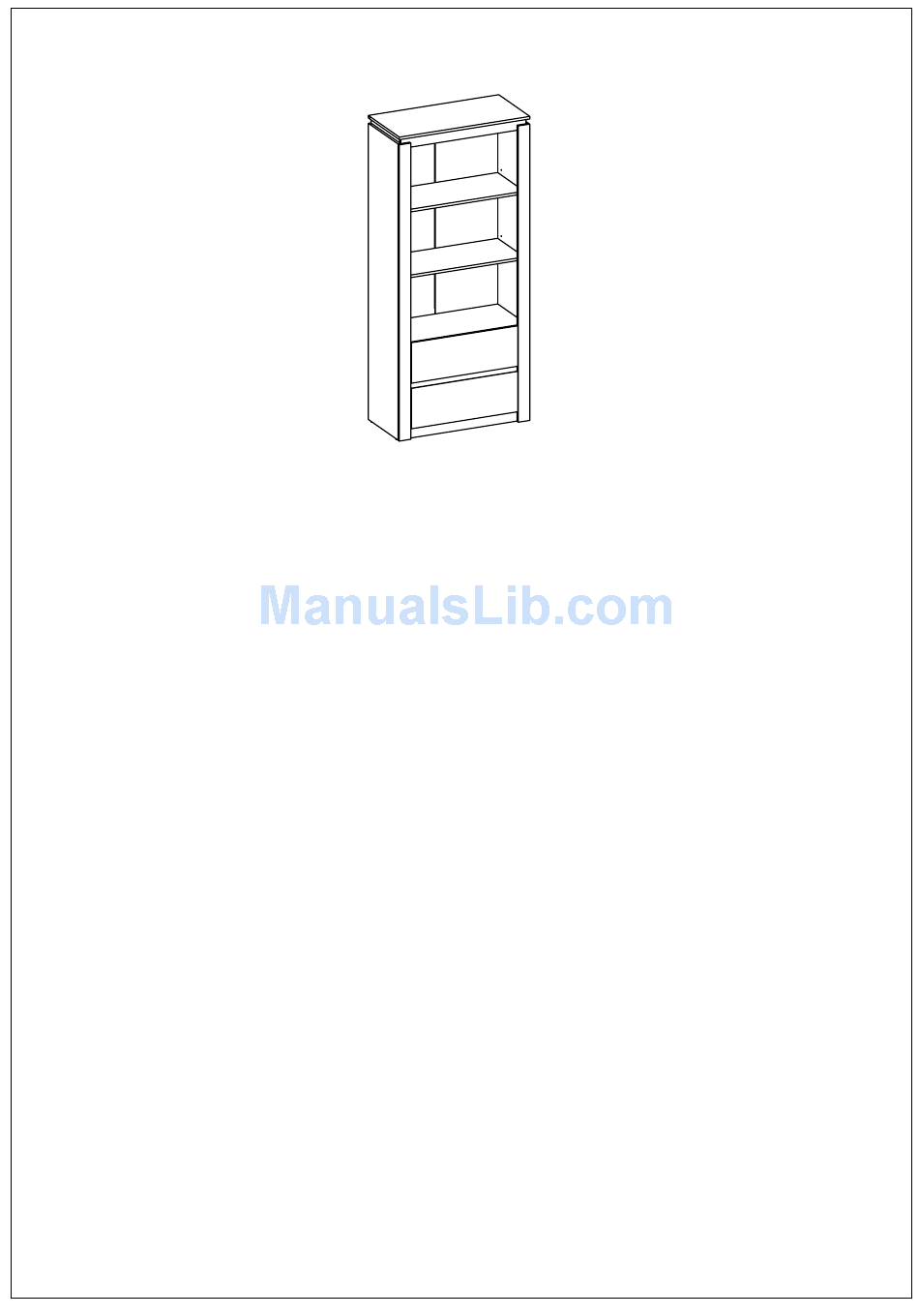

CANYON BOOKCASE WITH 2 DRAWERS
PLEASE READ BEFORE YOU CONTINUE FURTHER
WARNING AND INSTRUCTIONS
GENERIC
•
IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
•
DUE TO THE SIZE OF THIS PRODUCT WE RECOMMEND THAT IT IS ASSEMBLED IN THE
ROOM INTENDED FOR USE.
•
WHEN YOU ARE READY TO START,MAKE SURE THAT YOU HAVE THE RIGHT TOOLS,
PLENTY OF SPACE AND A CLEAN, DRY AREA FOR ASSEMBLY.
•
UNWRAP ALL PACKAGING MATERIALS AND PLACE THE COMPONENTS ON TOP OF
THE CARTON BOX OR ON A CLEAN FLOOR TO PREVENT IT FROM SCRATCHING.
•
CHECK THE PACK AND MAKE SURE YOU HAVE ALL THE PARTS LISTED.
•
ENSURE THAT THIS PRODUCT IS FULLY ASSEMBLED AS ILLUSTRATED BEFORE USE.
•
TOOLS NOT INCLUDED.
•
CHECK ALL SCREWS OR BOLTS ARE TIGHTENED AND INSPECT REGULARLY.
•
THIS PRODUCT SHOULD ONLY BE USED ON FIRM,LEVEL GROUND.
•
KEEP SMALL PART OUT OF REACH OF CHILDREN.
•
MAKE SURE THE LEGS REMAIN IN CONTACT WITH THE GROUND.
•
DO NOT USE POWER TOOLS TO CONSTRUCT THIS PRODUCT.
•
DO NOT TIGHTEN SCREWS UNTIL FULLY ASSEMBLED.
•
DO NOT OVER TIGHTEN SCREWS OR BOLTS.
•
DO NOT USE THIS PRODUCT IF PARTS ARE MISSING, DAMAGE OR WORN.
•
DO NOT SIT AND STAND ON THE PRODUCT.
•
TO CLEAN WIPE WITH A SPONGE AND WARM SOAPY WATER.DO NOT USE SOLVENT
BASED CLEANERS OR DETERGENTS AS THEY CAN BLEACH OR DAMAGE THE PRODUCT.
•
NEVER USE SCOURERS, ABRASIVES OR CHEMICAL CLEANERS.
ASSEMBLY INSTRUCTIONS
IMPORTANT
PAGE 1 OF 12
