GFW MADRID WOODEN OTTOMAN BED 3FT Assembly Instructions Manual

Hide thumbs Also See for MADRID WOODEN OTTOMAN BED 3FT:
Table of Contents

Advertisement

Quick Links

Download this manual

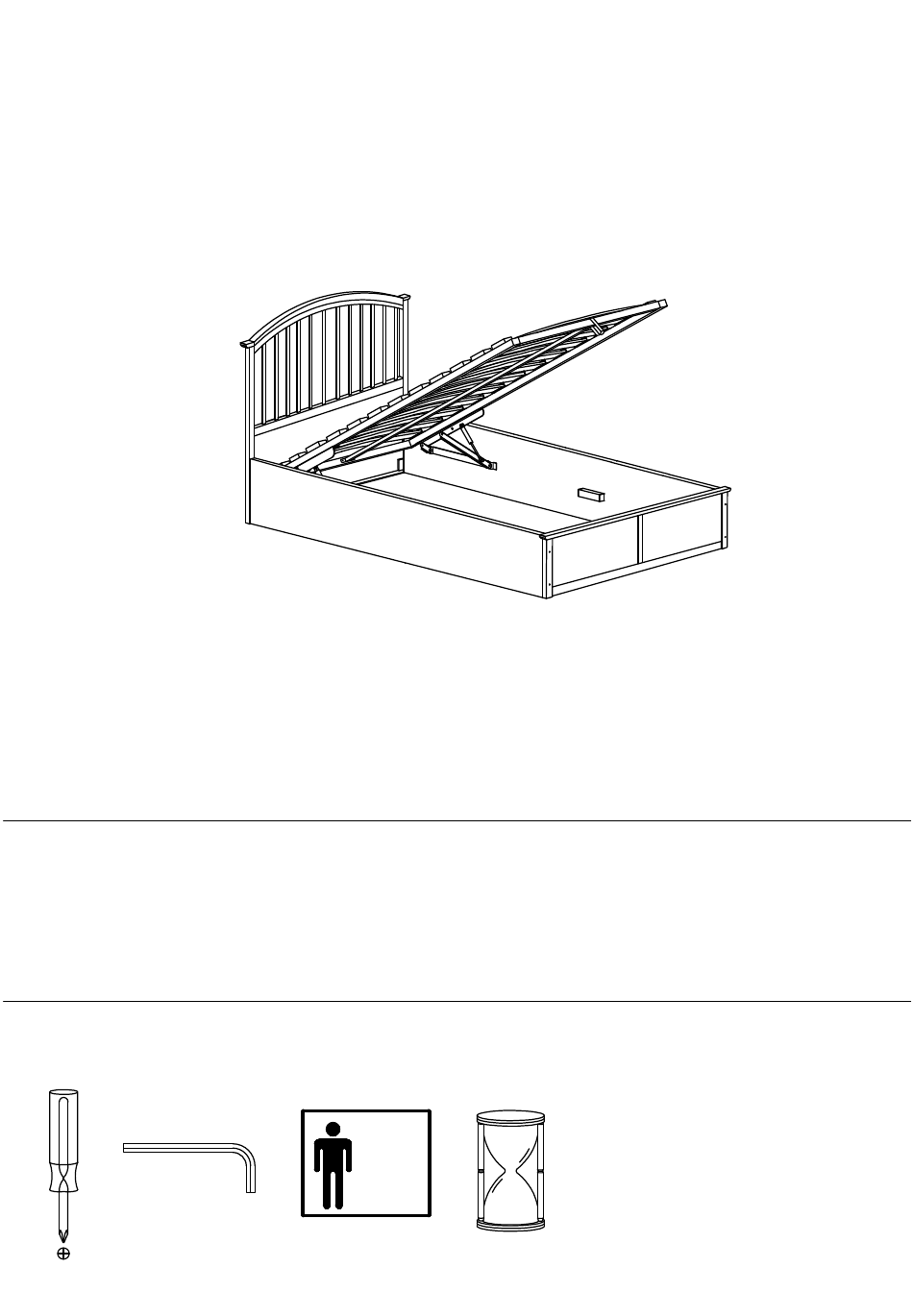

Thank you for purchasing the MADRID WOODEN OTTOMAN BED 3FT. Please read
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of
the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be kept away
form young children whilst assembling your unit to avoid the danger of choking hazards.
Tools Required
MADRID WOODEN OTTOMAN BED 3FT
ASSEMBLY INSTRUCTIONS
the instructions carefully to ensure safe operation of the product.
Size: 3FT L 2016 X W 1032 X H 1140
Colour : WHITE, OAK, GREY
X 2
V2 01/20
Page 1 of 22
1
Hour
Set Up

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MADRID WOODEN OTTOMAN BED 3FT and is the answer not in the manual?

Questions and answers

Related Manuals for GFW MADRID WOODEN OTTOMAN BED 3FT

Summary of Contents for GFW MADRID WOODEN OTTOMAN BED 3FT

  • Page 1 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Thank you for purchasing the MADRID WOODEN OTTOMAN BED 3FT. Please read the instructions carefully to ensure safe operation of the product. Size: 3FT L 2016 X W 1032 X H 1140 Colour : WHITE, OAK, GREY PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
  • Page 2 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION • This product is intended for a maximum person's weight of 110kg. Do not exceed this weight. • Due to the size of this product we recommend that it is assembled in the room intended for use.
  • Page 3 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. (P1)
  • Page 4 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts HEADBOARD FOOTBOARD SIDE RAIL LEFT AND RIGHT 2PCS Carton No: 1 Carton No: 2 Carton No: 2 FRONT TUBE BACK TUBE CENTRE TUBE Carton No: 3 Carton No: 3 Carton No: 3...
  • Page 5 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts MATTRESS STOPPER HOLDING BLOCK HOLDING TUBE 2PCS 2PCS Carton No: 2 Carton No: 2 Carton No: 3 WOODEN SLAT NON-WOVEN FABRIC 13PCS Carton No: 3 Carton No: 2 V2 01/20 Page 5 of 22...

  • Page 6: Table Of Contents

    MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Fixings (to scale) Dimensions H1 JCBC SCREW M6 X 80MM H2 JCBC SCREW M6 X 45MM H3 JCBC SCREW M6 X 15MM H4 BARREL NUT M6 X 16MM H5 DOWEL M10 X 30MM...
  • Page 7 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS 12 & 13 Turn to page 12 & 13 for fitting the hinges The pistons used in the construction of this product are extremely strong and cannot be operated by hand when not fitted to the ottoman hinges. All pistons are tested in the factory for correct pressure and operation before use.
  • Page 8 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Hints and Tips To operate the ottoman, always use 2 hands at arm's length and only where illustration on this product. You must ensure the mattress is on the bed frame before lifting the mechanism. Failure to do so may result in injury.
  • Page 9 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Do not attempt to move the bed whilst the frame is in the upright position. V2 01/20 Page 9 of 22...
  • Page 10 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS 2 people are required to fit the frame safety. V2 01/20 Page 10 of 22...
  • Page 11 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Lay out all 4 sides on a soft surface i.e. Rug, Carpet or Packaging Carton V2 01/20 Page 11 of 22...
  • Page 12 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts STEP 1 (Right Side Rail) Required (P3) Side Rail - 1pc (P8) Hinge - 1pc (H3) JCBC Screw (H6) (P3) M6x15mm - 1pc (P8) (H3) (H6) M4 Allen Key - 1pc Screw...
  • Page 13 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts STEP 3 (Right Side Rail) Required (P3) Side Rail - 1pc (P9) (P8) Hinge - 1pc (P8) (P9) Piston - 1pc "Remove preassembled piston securing bolt from hinge before affixing the piston"...
  • Page 14 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts STEP 5 (Right Side Rail) Required (P3) Side Rail - 1pc (P12) (H6) Holding Tube - 1pc (H2) (H2) JCBC Screw (P12) M6x45mm - 2pcs (H6) (P3) M4 Allen Key - 1pc...

  • Page 15: H1 Jcbc Screw M6 X 80Mm

    MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts STEP 7 Required (P1) Headboard - 1pc (P2) Footboard - 1pc (P3) Side Rail - 2pcs (H1) JCBC Screw M6x80mm - 8pcs (H4) (P1) Barrel Nut M6x16mm - 8pcs (H5) Dowel (P3)

  • Page 16: H12 Jcbc Screw M6 X 50Mm

    MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts STEP 8 Required (P1) Headboard - 1pc (P2) Footboard - 1pc (P3) Side Rail - 2pcs (H3) (P1) JCBC Screw M6x15mm - 8pcs (P3) REPEAT x 4 (H6) M4 Allen Key - 1pc...
  • Page 17 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts STEP 10 Required (P4) Front Tube - 1pc (P5) Back Tube - 1pc (P10) (P6) Centre Tube - 1pc (P7) (P10) (P5) (P7) Side Tube - 2pcs (P10) 6 Holes (P6) Mattress Stopper...
  • Page 18 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts STEP 11 Required (P7) Side Tube - 2pcs (H3) (P7) (H6) (P8) Hinge - 2pcs (H3) JCBC Screw (H3) M6x15mm - 6pcs (P8) (H6) (H6) M4 Allen key - 1pc Parts STEP 12...

  • Page 19: H9 Plastic End Cap

    MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Parts STEP 13 Required (P13) Wooden Slat - 13pcs (H9) Plastic End Cap - 26pcs (P13) (H9) (H9) Parts STEP 14 Required (P7) Side Tube - 2pcs (P13) Wooden Slat - 13pcs (H9)
  • Page 20 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS OVERALL DIMENSIONS COMMENTS: Bed Dimensions Template: A - Bed Width - 1032mm B- Bed Height - 1140mm C - Bed Depth - 2016mm D - Footboard Height - 322mm E - Slat Height - 295mm...
  • Page 21 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Complete Assembly Your bed frame is now completely assembled but the ottoman will not operate correctly unless a mattress is placed on the slat frame and will not stay shut unless the mattress remains in position. To position the mattress on the slat frame, simply place the mattress on top of the slate frame whilst it is in the up (open) position.
  • Page 22 MADRID WOODEN OTTOMAN BED 3FT ASSEMBLY INSTRUCTIONS Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the end of connectors are tight and secure. Keep instructions for future reference V2 01/20...
