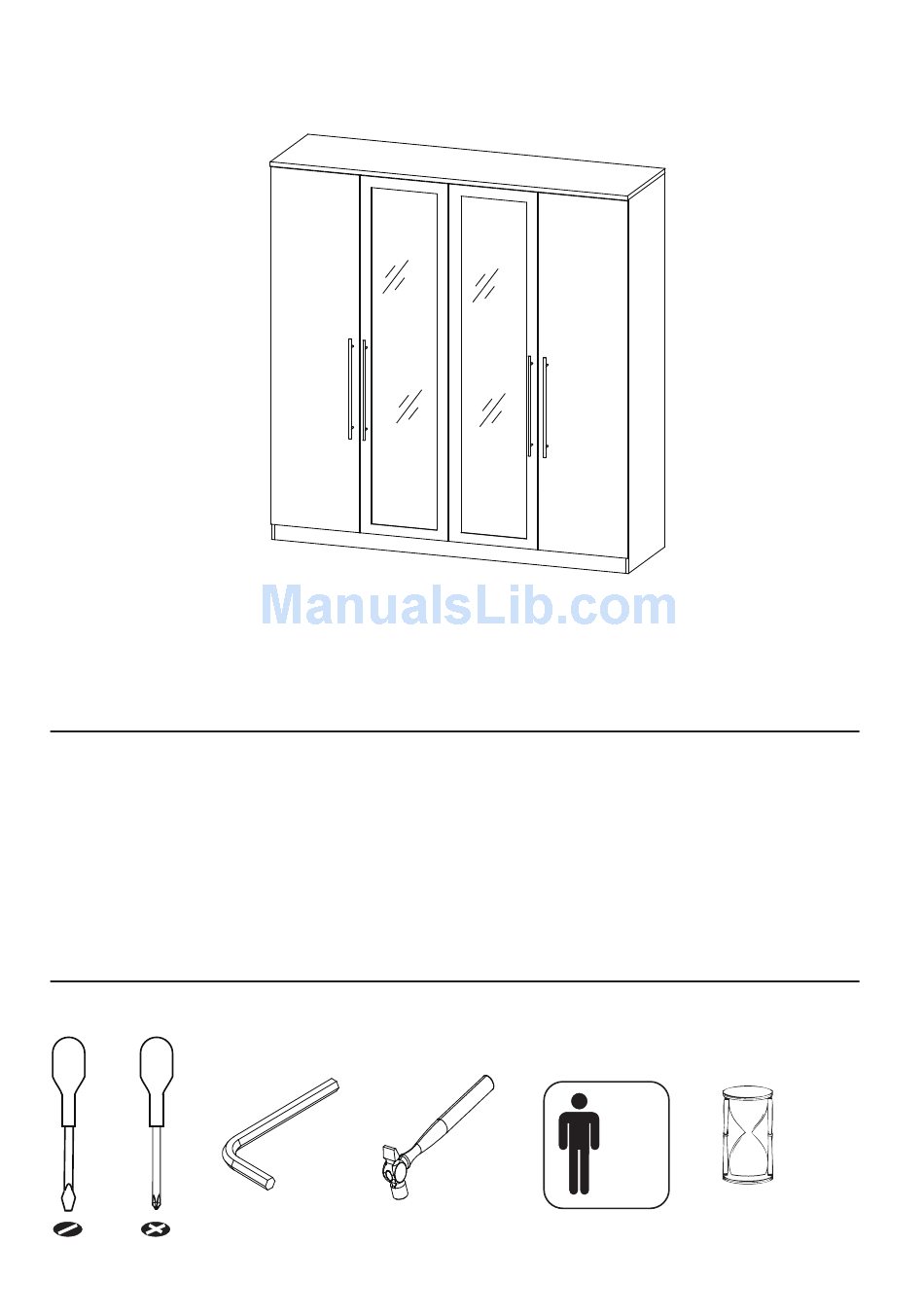

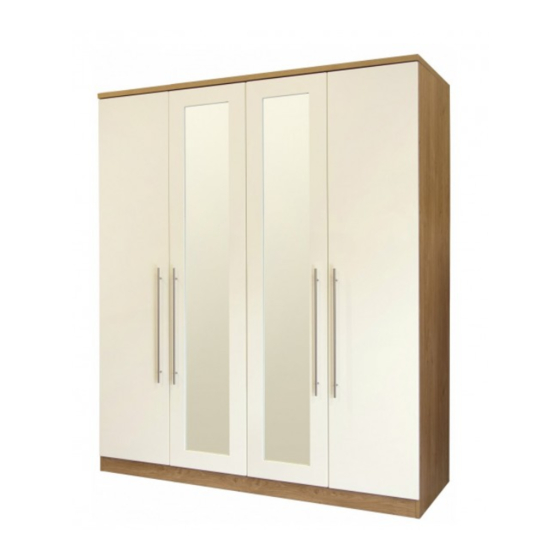

KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS
Thank you for purchasing the Keswick 4 Door Mirror Robe.
Please read the instructions carefully to ensure safe operation of this product.
Size:
Colours:
Finish:
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking.
160 x 58 x 190 cm (WDH)
Gloss Black-Walnut or Gloss Cream-Oak
PU Painted Fascias - Melamine Carcass

Tools Required

Batch No. 151601
Page 1 of 16
Number of people
x2
2.5 Hour
Set Up

Advertisement

loading
Need help?

Need help?

Do you have a question about the KESWICK 4 DOOR MIRROR ROBE and is the answer not in the manual?

Questions and answers

Related Manuals for GFW KESWICK 4 DOOR MIRROR ROBE

Summary of Contents for GFW KESWICK 4 DOOR MIRROR ROBE

  • Page 1: Tools Required

    KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS Thank you for purchasing the Keswick 4 Door Mirror Robe. Please read the instructions carefully to ensure safe operation of this product. Size: 160 x 58 x 190 cm (WDH) Colours: Gloss Black-Walnut or Gloss Cream-Oak...

  • Page 2: Care Information

    KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is designed to hold 35Kg in total. Do not exceed this weight. We recommend that this unit is assembled in the room intended for use.
  • Page 3 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS Parts and Fittings Checklist Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children.
  • Page 4 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS Parts are packed in three cartons Description: Top Panel Description: LH Side Panel Description: RH Side Panel Qty: 1 Qty: 1 Qty: 1 Carton No: 1/3 Carton No: 2/3 Carton No: 2/3 Description: Centre Upright...

  • Page 5: General Hints & Tips

    KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS Fittings (to scale) Code Item Quantity Cam Bolt (35mm overall) Cam Lock Dowe l (8x30mm) Carcass Screw for Fitting Top Panel & Centre Upright (M7x50mm) Screw for Fitting Hinge, Hanging Rail Support, Back Panel & Anti-tilt Strap (3.5x12.5mm)
  • Page 6 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS Fittings (not to scale) Code Item Quantity Handle Allen Key (4mm) Support for Hanging Rail Hinge for Plain Doors on LH & RH Sides Door Buffer Hanging Rail Anti-tilt Wall Strap Hinge for Mirror Doors in Centre of Wardrobe Batch No.
  • Page 7 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 1 For this step: Tools required 6 x2 Fittings required Tighten A x8 B x8 STEP 2 For this step: Tools required Fittings required A x4 Tighten B x4 Batch No. 151601...
  • Page 8 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 3 For this step: Tools required Fittings required A x12 STEP 4 For this step: Tools required Fittings required C x2 D x2 Batch No. 151601 Page 8 of 16...
  • Page 9 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 5 For this step: Tools required A A A A A A Fittings required A x24 STEP 6 For this step: Tighten Tools required Fittings required B x36 C x12 Batch No. 151601...
  • Page 10 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 7 STEP8 For this step: Tools required Fittings required C x6 D x6 Batch No. 151601 Page 10 of 16...
  • Page 11 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 9 For this step: Tools required Fittings required G x12 E x16 STEP 10 For this step: Tools required Fittings required E x8 Q x4 T x2 Batch No. 151601 Page 11 of 16...
  • Page 12 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 11 For this step: Tools required NOTE: CAREFULLY SELECT HINGES (R) or (V) TO SUIT THE TYPE OF DOOR Fittings required Plain Doors E x16 R x8 Fittings required Mirror Doors E x16 V x8 Batch No.
  • Page 13 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 12 For this step: Tools required Fit Plain Doors in Position Fit x2 screws (E) in centre of long holes Fittings required E x16 MAKE SURE WARDROBE IS LEVEL IF DOORS NEED ADJUSTING, CAREFULLY FOLLOW THESE STEPS...
  • Page 14 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 13 For this step: Tools required Fit Mirror Doors in Position Fit x2 screws (E) in centre of long holes Fittings required E x16 MAKE SURE WARDROBE IS LEVEL IF DOORS NEED ADJUSTING, CAREFULLY FOLLOW THESE STEPS...
  • Page 15 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS STEP 14 For this step: Tools required Fittings required F x8 N x4 S x8 STEP 15 Note: We recommend the use of the Anti-tilt Wall Strap provided (U) to avoid For this step: accidents and possible fatal injuries if the item falls over or tips over during use.
  • Page 16 KESWICK 4 DOOR MIRROR ROBE ASSEMBLY INSTRUCTIONS Assembly Completed Your Keswick 4 door mirror robe is now comp letely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.
