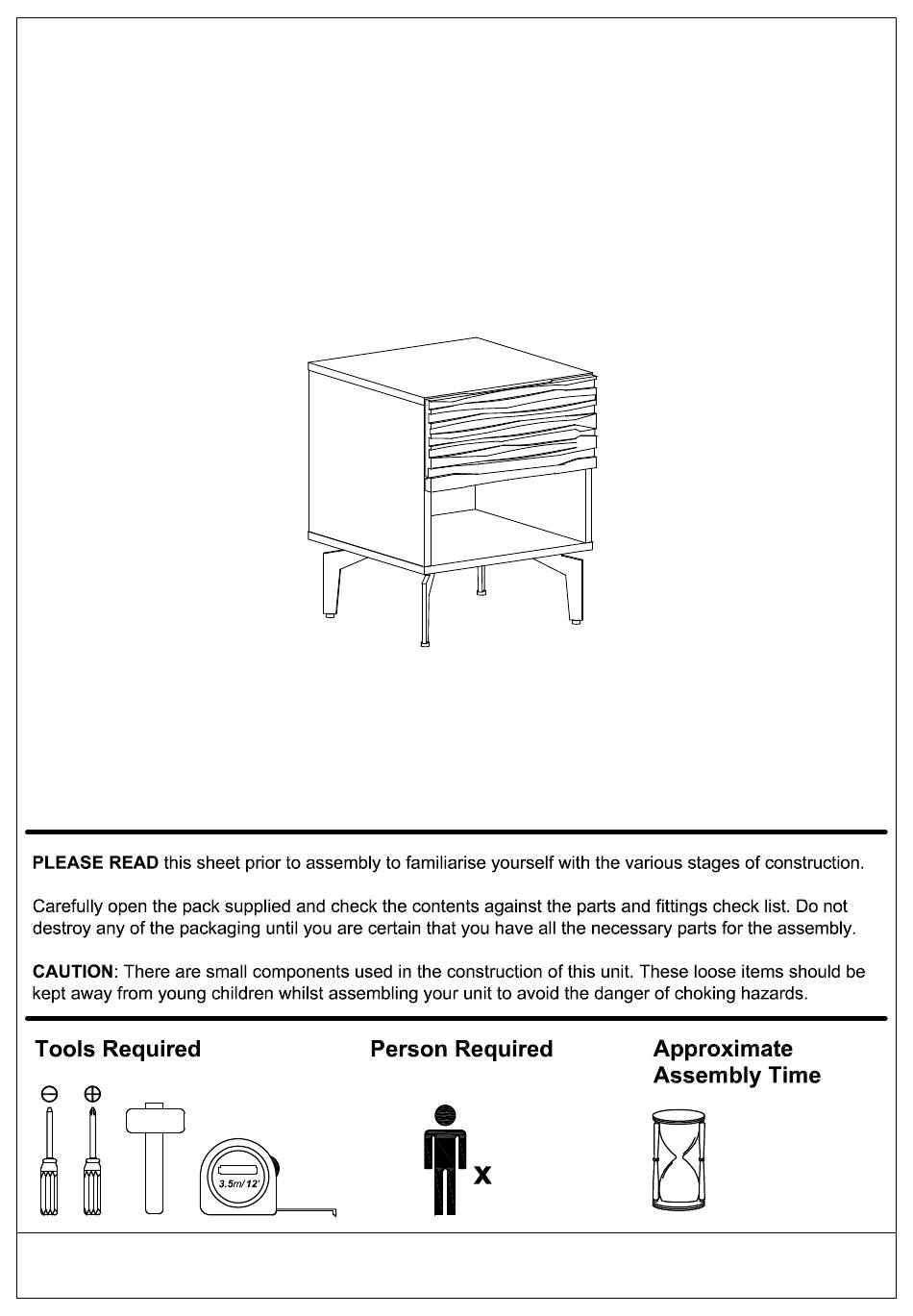

BANTHAM - 1 DRAWER SIDE TABLE ASSEMBLY INSTRUCTIONS
Thank you for purchasing the 1 DRAWER SIDE TABLE
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)395 x (D)408 x (H)542mm
Minute
30
1
Batch No : PO#
V1 5/24
Page
Page 1 of 12
Advertisement
Related Manuals for GFW BANTHAM SIDE TABLE
Summary of Contents for GFW BANTHAM SIDE TABLE
- Page 1 BANTHAM - 1 DRAWER SIDE TABLE ASSEMBLY INSTRUCTIONS Thank you for purchasing the 1 DRAWER SIDE TABLE Please read the instructions carefully to ensure safe operation of the product. Size: (W)395 x (D)408 x (H)542mm Minute Batch No : PO# V1 5/24 Page Page 1 of 12...
- Page 2 This product is intended for a maximum weight of 15kgs and drawer load capacity 5kg each. Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or on a clean floor to prevent it from scratching.
- Page 3 Side Panel (L) (15 x 389 x 318mm) Side Panel (R) (15 x 389 x 318mm) Top Panel (15 x 390 x 395mm) Bottom Panel (15 x 390 x 395mm) Drawer Front (18 x 180 x 389mm) Drawer Side (L) (15 x 120 x 340mm) Drawer Side (R) (15 x 120 x 340mm) Drawer Back (15 x 120 x 309mm) Back Panel (2.5 x 327 x 372mm)
- Page 4 D6.3 x 40mm M4.7 x 38mm D6 x 30mm M5 x 29mm Unitar Screw CSK Screw Wooden Dowel Minifix Bolt M3.1 x 20mm D15 x 12mm D6 x 9mm M3.5 x 12mm M3.5 x 15mm Minifix Cam Euro Screw Tapping Screw Csk Screw Csk Screw 150mm...
-
Page 5: Parts Required
STEP 1 Parts Required Panel (A) Panel (B) Panel (F ) Panel (G) Page 5 of 12... - Page 6 STEP 2 Parts Required Panel (C ) Panel (E) STEP 3 (CL) (CR) Parts Required Panel (A) Panel ( ) B Page 6 of 12...
- Page 7 STEP 4 Parts Requi red Parts Required Panel (A) Panel (B) Panel (D) STEP 5 24 x Parts Requi red Parts Required Panel (D) Page 7 of 12...
- Page 8 STEP 6 Parts Required Panel (Y) STEP 7 Parts Required Panel (C) Page 8 of 12...
- Page 9 STEP 8 12 x 12 x STEP 9 Parts Requi red Parts Required Panel (F) Panel (F) Panel (F) Panel (G) Panel (F) Panel (H) Page 9 of 12...
- Page 10 STEP 10 Parts Requi red Parts Required Panel (F) Panel (Z) STEP 11 Parts Requi red Parts Required Panel (F) Panel (E) Page 10 of 12...
- Page 11 STEP 12 1 set STEP 13 Page 11 of 12...
- Page 12 Your 1 DRAWER SIDE TABLE is now completely assembled Supplied by: GFW THE FURNITURE WAREHOUSE. Waterside Distribution Centre. Waterside Business Park. Johnson Road. Page 12 of 12...
