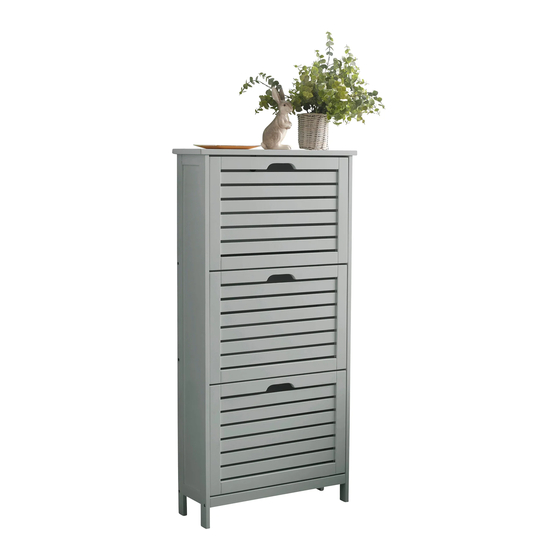

- Page 1 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS BERGEN THREE TIER SHOE CABINET. Size:W530xD180xH108.5cm Batch No.WMI 17056(PO#2991) Page 1 of 12...
- Page 2 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS The product is intended for a maximum load of 15 kg spread evenly thorough the storage compartments . Do not exceed this weight . Batch No.WMI 17056(PO#2991) Page 2 of 12...
- Page 3 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS Batch No.WMI 17056(PO#2991) Page 3 of 12...
- Page 4 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS Description: RIGHT DRAWER BRACKET Description:LEFT DRAWER BRACKET Description:DRAWER BOTTOM PANEL QTY:3pcs QTY:3pcs QTY:3pcs Dimension:236x158x9mm Dimension:236x158x9mm Dimension:450x65x9mm Description:DRAWER BACK PANEL Description:DRAWER FRONT PANEL Description:LEFT SIDE PANEL QTY:3pcs QTY:3pcs QTY:1pc Dimension:450x130x9mm Dimension:470x320x15mm Dimension:1070x176x14mm Description:RIGHT SIDE PANEL...
- Page 5 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS Fixings BOLT BARREL NUT DOWEL SCREWS DOOR AXIS DOOR STOPPER CAM BOLT CAM LOCK SCREWS SCREWS Fixings (Not to scale) WALL STRAP WALL ANCHOR Batch No.WMI 17056(PO#2991) Page 5 of 12...
- Page 6 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS Batch No.WMI 17056(PO#2991) Page 6 of 12...
- Page 7 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS STEP 1 PARTS REQUIRED 1: Right Drawer Bracket x3 2: Left Drawer Bracket x3 3: Drawer Bottom Panel x3 4: Drawer Back Panel x3 5: Drawer Front Panel x3 D: Screws x12 E:Door Axis x6...
- Page 8 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS STEP 3 PARTS REQUIRED 6: Left Side Panel x1 12: Support Panel x2 13: Support Panel x1 14: Support Panel x1 A: Bolt x4 B: Barrel Nut x8 C: Dowel x4 (ii) STEP 4...
- Page 9 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS STEP 5 PARTS REQUIRED C: Dowel x2 STEP 6 PARTS REQUIRED 7: Right Side Panel x1 A: Bolt x4 C: Dowel x2 F: Door Stopper x3 Batch No.WMI 17056(PO#2991) Page 9 of 12...
- Page 10 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS STEP 7 PARTS REQUIRED 8: Top Panel x1 G: Cam Bolt x4 l: Wall Strap x1 J: Screws x1 STEP 8 PARTS REQUIRED H: Cam Lock x4 Batch No.WMI 17056(PO#2991) Page 10 of 12...
- Page 11 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS WALL STRAPS PARTS REQUIRED K:WALL ANCHOR X1 L:SCREWS X1 Remark iii) Batch No.WMI 17056(PO#2991) Page 11 of 12...
- Page 12 BERGEN THREE TIER SHOE CABINET ASSEMBLY INSTRUCTIONS BERGEN THREE TIER SHOE CABINET Batch No.WMI 17056(PO#2991) Page 12 of 12...
