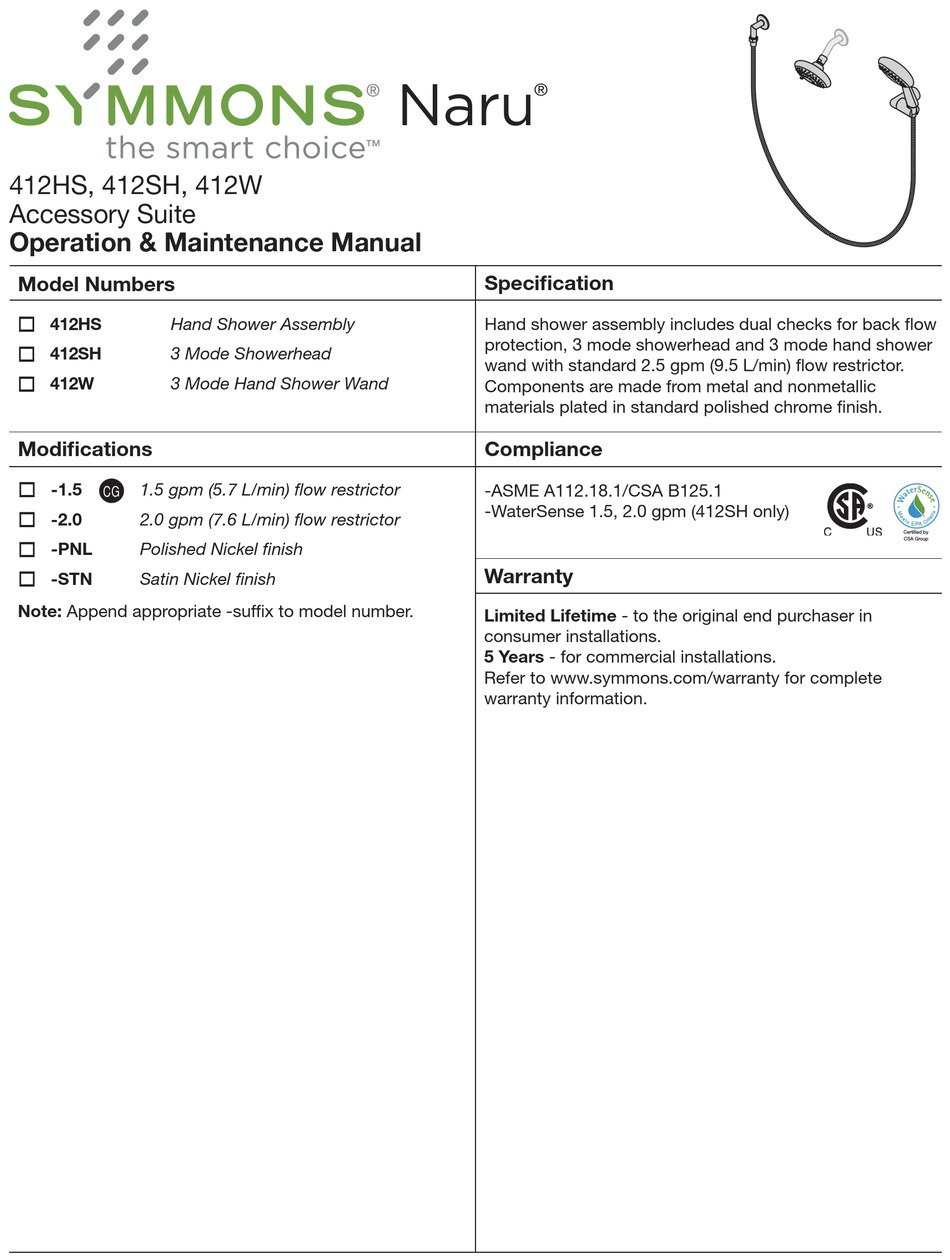

412HS, 412SH, 412W
Accessory Suite
Operation & Maintenance Manual
Model Numbers
412HS

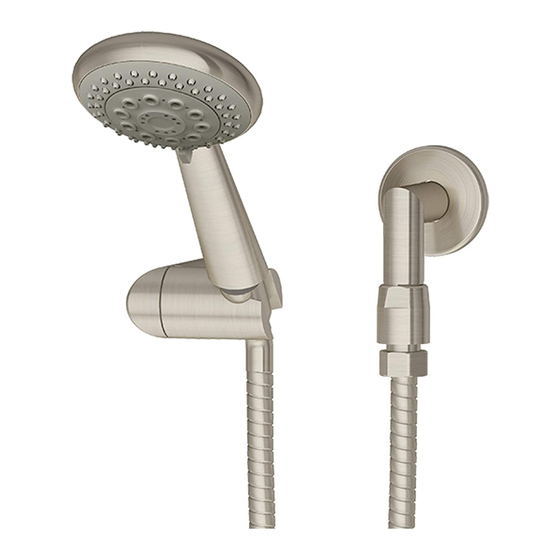

Hand Shower Assembly
412SH
3 Mode Showerhead
412W
3 Mode Hand Shower Wand
Modifications
-1.5
CG
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-PNL
Polished Nickel finish
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Naru
®
Specification
Hand shower assembly includes dual checks for back flow
protection, 3 mode showerhead and 3 mode hand shower
wand with standard 2.5 gpm (9.5 L/min) flow restrictor.
Components are made from metal and nonmetallic
materials plated in standard polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5, 2.0 gpm (412SH only)
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Certi ed by
CSA Group
Advertisement
Table of Contents
Related Manuals for Symmons Naru 412HS
Summary of Contents for Symmons Naru 412HS
- Page 1 Polished Nickel finish Warranty -STN Satin Nickel finish Note: Append appropriate -suffix to model number. Limited Lifetime - to the original end purchaser in consumer installations. 5 Years - for commercial installations. Refer to www.symmons.com/warranty for complete warranty information.
- Page 2 Dimensions 412HS Measurements Female 1/2" IPS thread must be recessed 7/8", 22 mm from finished wall 3-1/4", 83 mm Ø 2-1/4", 57 mm Ø 1-1/2", 38 mm 3-3/4", 95 mm 11/16" ± 1/8" 17 mm ± 3 mm 5", 127 mm 3-5/8", 92 mm 8-1/4", 210 mm 412SH...
- Page 3 Parts Breakdown Replacement Parts 412HS Item Description Part Number Wall Elbow T-444-KIT Wall Elbow Flange 60" Hose EF-02976 Cradle Mount Cradle Mounting Screws Anchors T-545 Washer Cradle Arm Set Screw Hand Shower 412W Showerhead 412SH Notes: 1) Append -PNL to part number for polished nickel finish;...
- Page 4 Installation 1) Install wall elbow (A) and 2) Press tab to remove mounting 3a) Place mounting plate (D2) in flange (B) to recessed pipe plate (D2) from cradle mount position. Mark and drill 1/8" (3 mm) fitting. Turn elbow clockwise to cover (D1).
- Page 5 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2018 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3081 REV A 040918...
