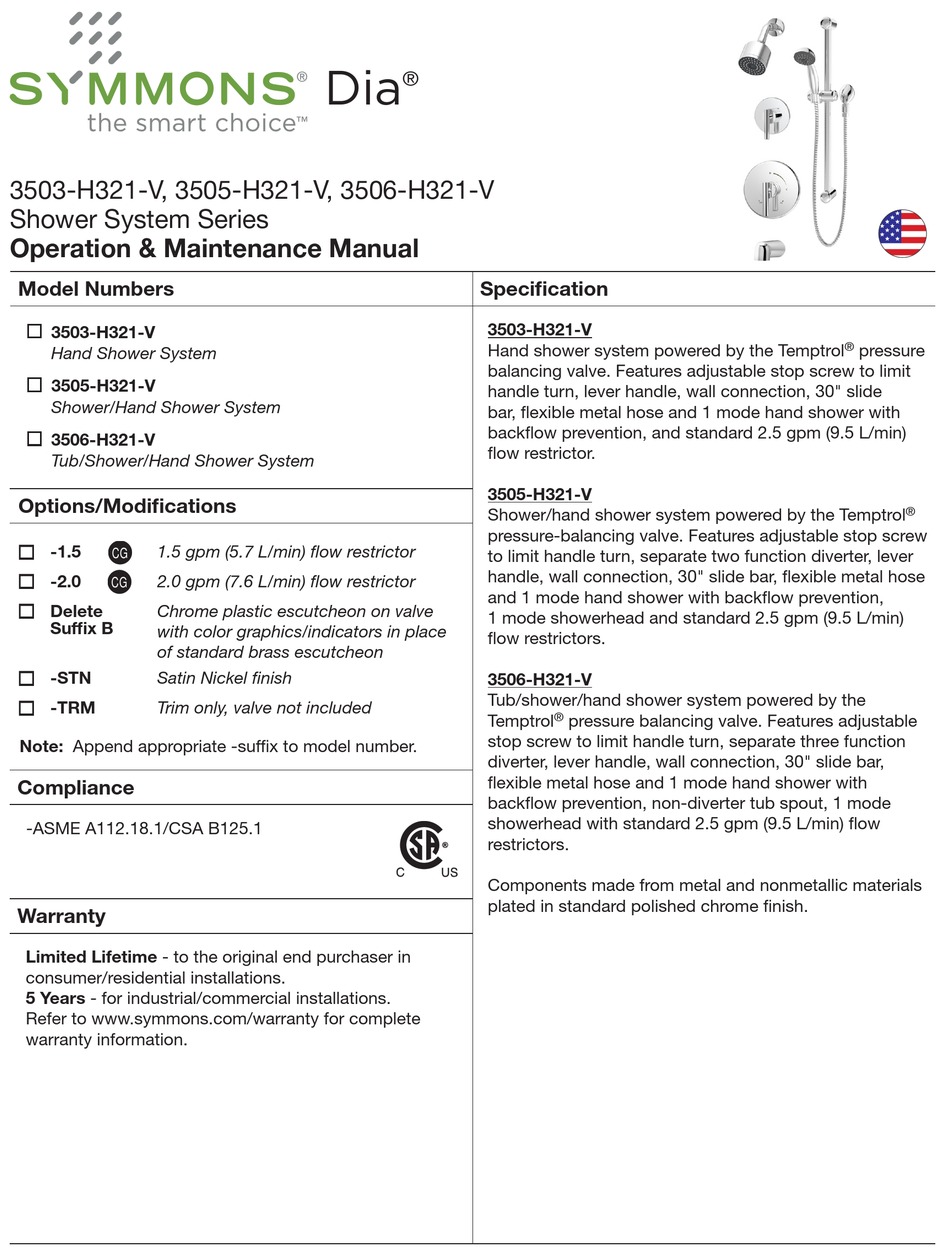

Symmons Dia 3503-H321-V Operation & Maintenance Manual

3503-H321-V, 3505-H321-V, 3506-H321-V
Shower System Series
Operation & Maintenance Manual
Model Numbers
3503-H321-V
Hand Shower System
3505-H321-V
Shower/Hand Shower System
3506-H321-V
Tub/Shower/Hand Shower System
Options/Modifications
 -1.5
CG 1.5 gpm (5.7 L/min) flow restrictor
 -2.0 CG 2.0 gpm (7.6 L/min) flow restrictor
 Delete Chrome plastic escutcheon on valve
Suffix B
with color graphics/indicators in place
of standard brass escutcheon
 -STN
Satin Nickel finish
 -TRM Trim only, valve not included
Note: Append appropriate -suffix to model number.
Compliance
-ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dia
®
Specification

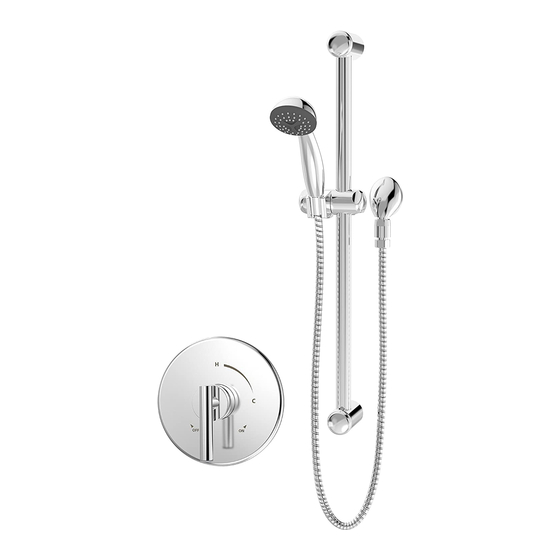

3503-H321-V
Hand shower system powered by the Temptrol
balancing valve. Features adjustable stop screw to limit
handle turn, lever handle, wall connection, 30" slide
bar, flexible metal hose and 1 mode hand shower with
backflow prevention, and standard 2.5 gpm (9.5 L/min)
flow restrictor.
3505-H321-V
Shower/hand shower system powered by the Temptrol
pressure-balancing valve. Features adjustable stop screw
to limit handle turn, separate two function diverter, lever
handle, wall connection, 30" slide bar, flexible metal hose
and 1 mode hand shower with backflow prevention,
1 mode showerhead and standard 2.5 gpm (9.5 L/min)
flow restrictors.
3506-H321-V
Tub/shower/hand shower system powered by the
Temptrol
stop screw to limit handle turn, separate three function
diverter, lever handle, wall connection, 30" slide bar,
flexible metal hose and 1 mode hand shower with
backflow prevention, non-diverter tub spout, 1 mode
showerhead with standard 2.5 gpm (9.5 L/min) flow
restrictors.
Components made from metal and nonmetallic materials
plated in standard polished chrome finish.
® pressure balancing valve. Features adjustable
® pressure
®
