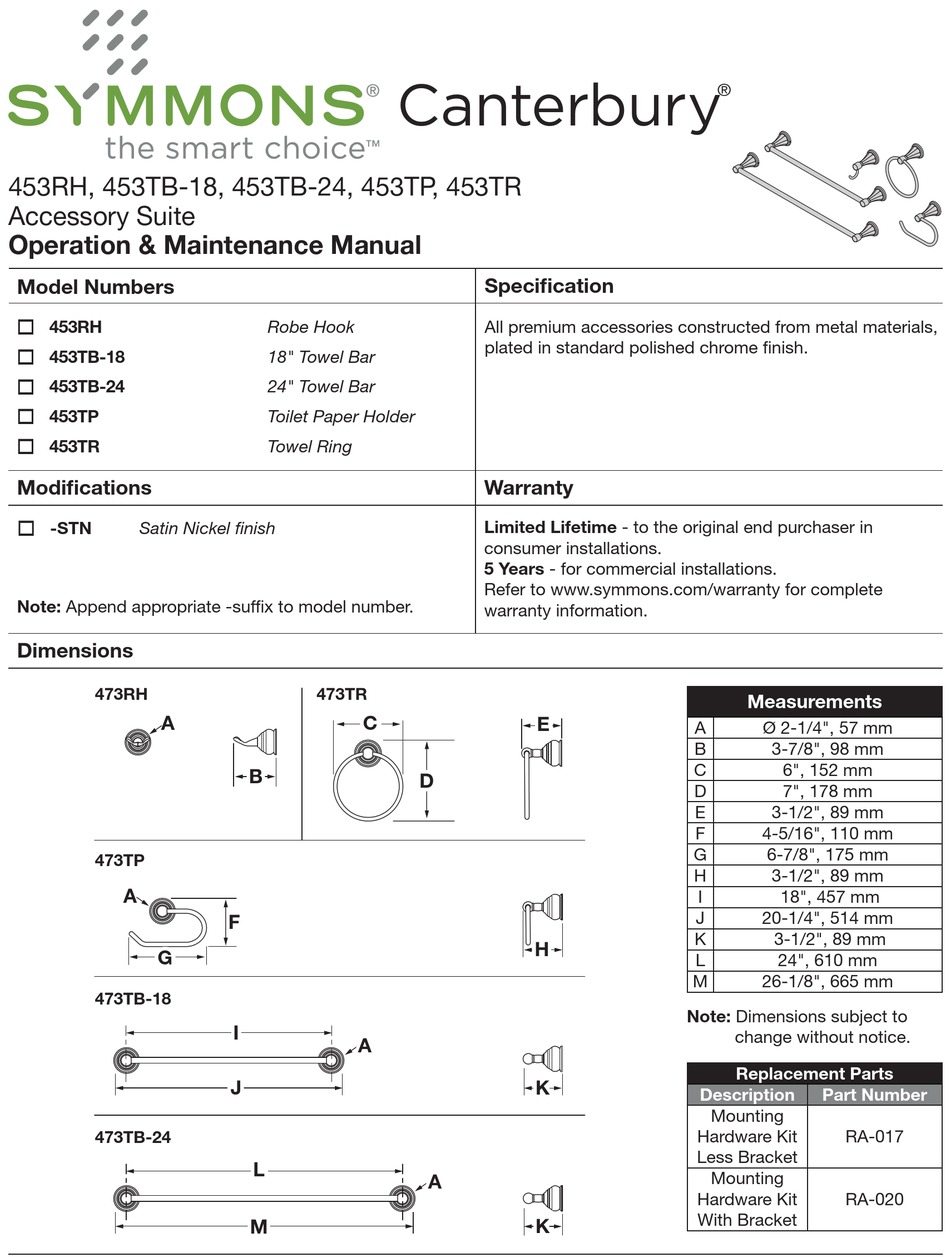

453RH, 453TB-18, 453TB-24, 453TP, 453TR
Accessory Suite
Operation & Maintenance Manual
Model Numbers
453RH
453TB-18
453TB-24
453TP
453TR
Modifications
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Dimensions
473RH
A A
473TP
A A
G G
473TB-18
473TB-24
Canterbury
Robe Hook
18" Towel Bar
24" Towel Bar
Toilet Paper Holder
Towel Ring
473TR
C C
B B
F F
I I
A A
J J
L L
M M
Specification
All premium accessories constructed from metal materials,
plated in standard polished chrome finish.
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
E E
D D
H H
K K
A A
K K
®
Measurements
A
Ø 2-1/4", 57 mm
B
3-7/8", 98 mm
C
6", 152 mm
D
7", 178 mm
E
3-1/2", 89 mm
F
4-5/16", 110 mm
G
6-7/8", 175 mm
H
3-1/2", 89 mm
I
18", 457 mm
J
20-1/4", 514 mm
K
3-1/2", 89 mm
L
24", 610 mm
M
26-1/8", 665 mm
Note: Dimensions subject to
change without notice.
Replacement Parts
Description
Part Number
Mounting
Hardware Kit
RA-017
Less Bracket
Mounting
Hardware Kit
RA-020
With Bracket
