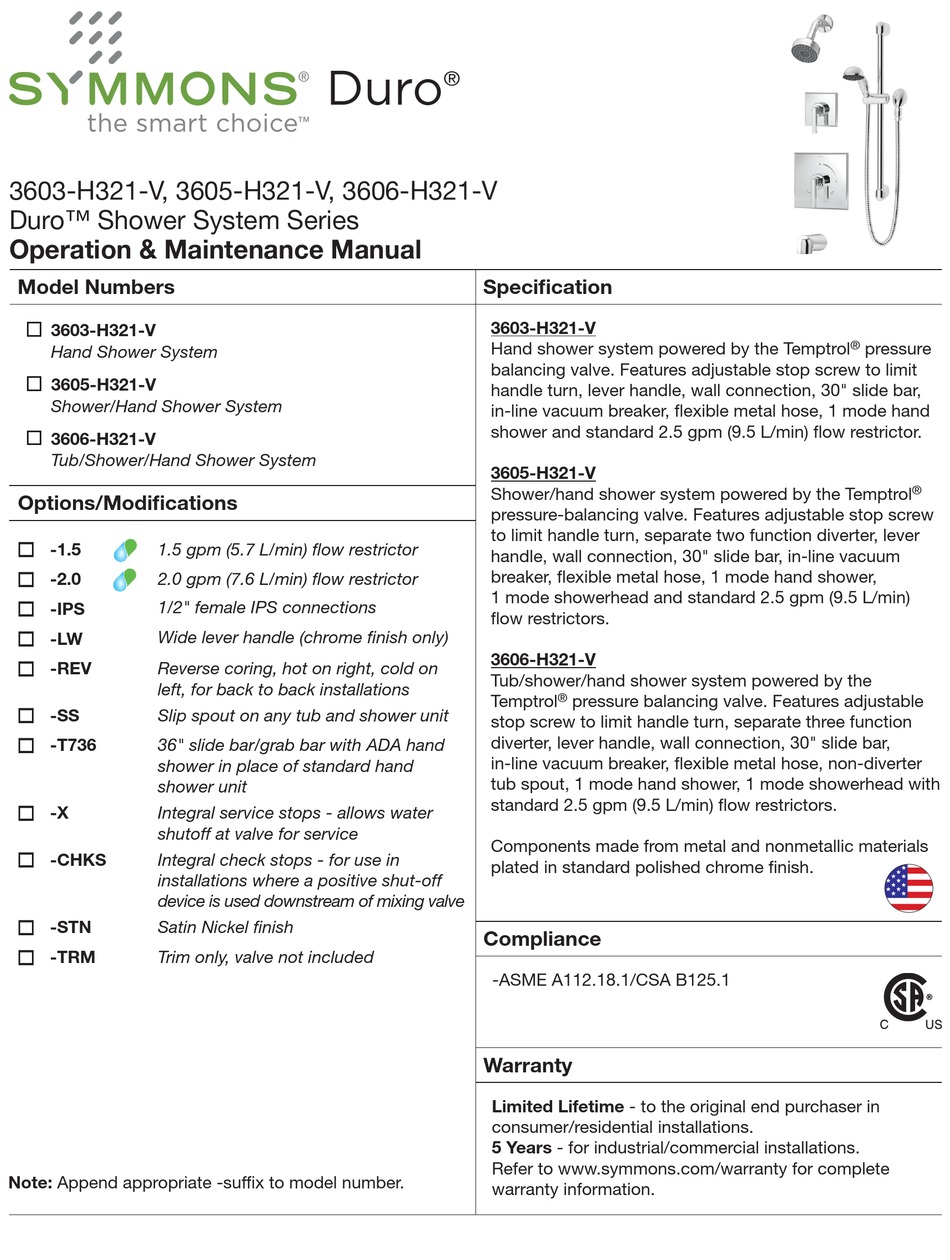

Symmons Duro Series Operation & Maintenance Manual

3603-H321-V, 3605-H321-V, 3606-H321-V
Duro™ Shower System Series
Operation & Maintenance Manual
Model Numbers
3603-H321-V
Hand Shower System
3605-H321-V
Shower/Hand Shower System
3606-H321-V
Tub/Shower/Hand Shower System
Options/Modifications
-1.5
 1.5 gpm (5.7 L/min) flow restrictor
 -2.0 2.0 gpm (7.6 L/min) flow restrictor
1/2" female IPS connections
 -IPS
Wide lever handle (chrome finish only)
 -LW
-REV
 Reverse coring, hot on right, cold on
left, for back to back installations
 -SS
Slip spout on any tub and shower unit
 -T736 36" slide bar/grab bar with ADA hand
shower in place of standard hand
shower unit
-X
 Integral service stops - allows water
shutoff at valve for service
 -CHKS
Integral check stops - for use in
Installations where a positive shut-off
device is used downstream of mixing valve
 -STN Satin Nickel finish
 -TRM Trim only, valve not included
Note: Append appropriate -suffix to model number.
Duro
®
Specification
3603-H321-V
Hand shower system powered by the Temptrol
balancing valve. Features adjustable stop screw to limit
handle turn, lever handle, wall connection, 30" slide bar,
in-line vacuum breaker, flexible metal hose, 1 mode hand
shower and standard 2.5 gpm (9.5 L/min) flow restrictor.
3605-H321-V
Shower/hand shower system powered by the Temptrol
pressure-balancing valve. Features adjustable stop screw
to limit handle turn, separate two function diverter, lever
handle, wall connection, 30" slide bar, in-line vacuum
breaker, flexible metal hose, 1 mode hand shower,
1 mode showerhead and standard 2.5 gpm (9.5 L/min)
flow restrictors.

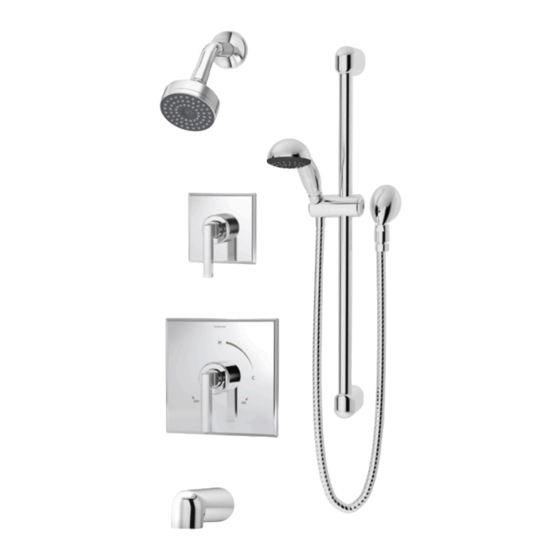

3606-H321-V
Tub/shower/hand shower system powered by the
Temptrol
stop screw to limit handle turn, separate three function
diverter, lever handle, wall connection, 30" slide bar,
in-line vacuum breaker, flexible metal hose, non-diverter
tub spout, 1 mode hand shower, 1 mode showerhead with
standard 2.5 gpm (9.5 L/min) flow restrictors.
Components made from metal and nonmetallic materials
plated in standard polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
® pressure balancing valve. Features adjustable
® pressure
®
