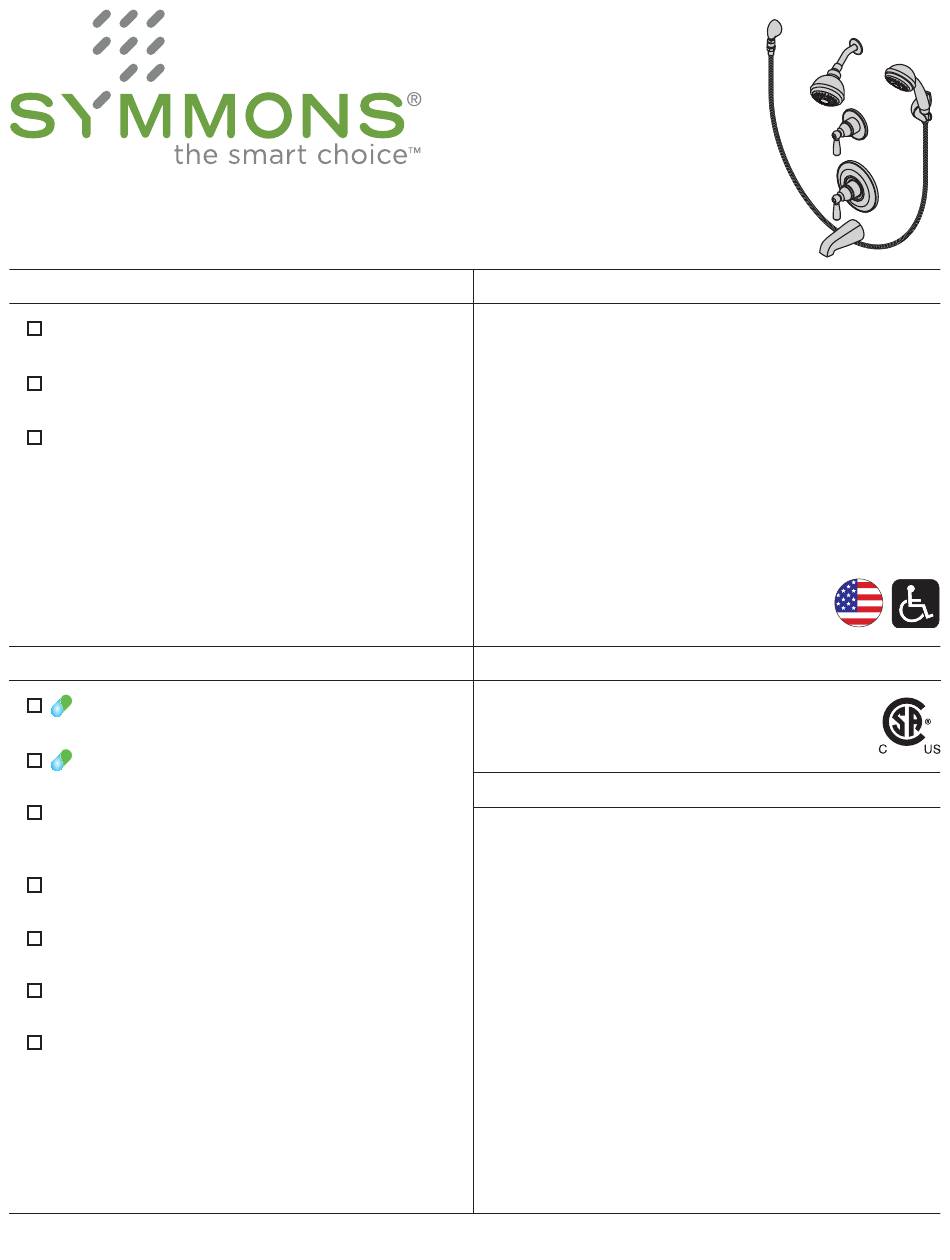

4703-TRM, 4705-TRM, 4706-TRM
Allura
Trim Series
®
Operation & Maintenance Manual
Model Numbers
4703-TRM
Valve Trim with Hand Shower
4705-TRM

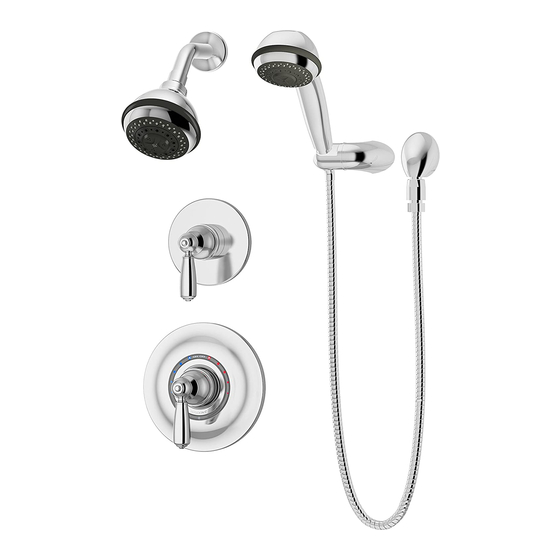

Shower Trim with Hand Shower
4706-TRM
Tub/Shower Trim with Hand Shower
Options/Modifications
-1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-H323-V
30" slide bar in place of wall cradle on hand
shower units
-LAM
Metal finish insert handle
-LR
Lever handle
-SS
Slip spout on any tub and shower unit
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Specification
Tub/shower trim with hand shower and lever handle
includes wall connection, cradle for hand shower
mounting, in-line vacuum breaker, flexible metal hose,
non-diverter tub spout, 3 mode hand shower and 3
mode showerhead with standard 2.5 gpm (9.5 L/min)
flow restrictor. Shower trim with hand shower and lever
handle includes all of the above less non-diverter tub
spout. Valve trim with hand shower and lever handle
includes all of the above less non-diverter tub spout and
3 mode showerhead. Components made from metal
and nonmetallic materials plated in standard polished
chrome finish.
Compliance
-ASME A112.18.1; CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons Allura Trim 4703-TRM
Summary of Contents for Symmons Allura Trim 4703-TRM
- Page 1 30” slide bar in place of wall cradle on hand consumer/residential installations. shower units 5 Years - for industrial/commercial installations. -LAM Metal finish insert handle Refer to www.symmons.com/warranty for complete warranty information. Lever handle Slip spout on any tub and shower unit -STN Satin Nickel finish...
- Page 2 Dimensions Measurements Ø 2 1/2”, 64 mm 6 3/4”, 172 mm 2 1/8”, 54 mm Male 1/2” NPT thread must be recessed 1/4” from finished wall 6”, 152 mm right or left Ref. 77”, 1956 mm Ø 7”, 178 mm Ø...
- Page 3 Parts Breakdown Replacement Parts Item Description Part Number In-line Vacuum EF-109 Breaker Wall Elbow EF-105 Showerhead 4-143 Shower Arm 300S (flange included) Flange 430SS Plug Button Handle Screw RTS-026 Star Washer Handle Dome Cover T-19 Diverter Escutcheon Mounting Screws T-416A Mounting Plate Wall Cradle Cradle Hardware...
- Page 4 Installation Note: 3) Attach diverter escutcheon (K) to 6) Install diverter handle (4705-TRM For valve body installation, please plastic mounting plate (M). and 4706-TRM only) and shower see valve body manuals. handle (I) to valves. Secure han- dle(s) with star washer (H) and 1) Install shower escutcheon (T) to screw (G).
- Page 5 Installation 8) Install wall elbow (B) to pipe fitting. 10) Remove cover of wall cradle 12) Install showerhead (C) to show- Tighten set screw to secure. (N). Install cradle mount (P). er arm (D) turning clockwise to Secure with three screws (O). tighten.
- Page 6 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ ©2015 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3061 REV B 020315...
